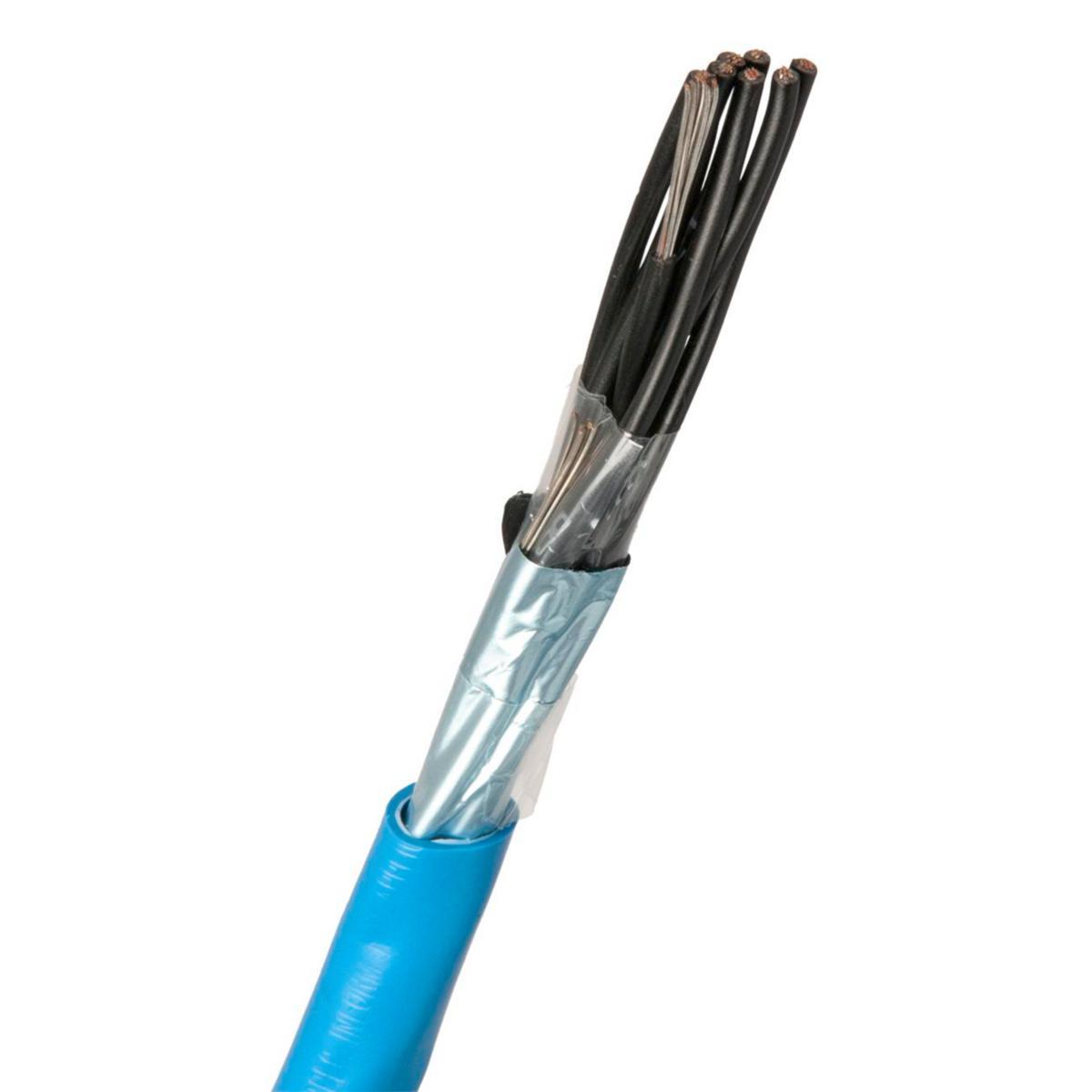

Control cable FQAR-PG Blue (01XA5Z1-R)150/250V Dca, Nexans
FQAR-PG 2X0.5 250V BLUE D500 (*0)
Article number: Suppl. article no:
0128015
16211098-804-05
to see price and stock
The cable is intended for fixed installation indoors and outdoors for control signals in electronic equipment. It has an aluminum screen.
FQAR-PG is a halogen-free, PEX-insulated, aluminum-shielded and HFFR-sheathed control cable with round wired conductors of diluted copper wired in pairs. The cable is provided with a tear thread to simplify scaling. The cable is designed according to SS 424 03 21 in applicable parts. The conductor has thread count and resistance according to IEC 60228 class 2. The parties are number marked according to SS 424 17 20. The jacket is marked type / manufacturer / year + month / meter marking. FQAR-PG meets fire spread class D. The cable is approved by SEMKO.
Like FQAR-G, but with twisted pairs in pairs.
The cable is marked with Lifemark TM recycling mark (content declared).
For intrinsically safe facilities. As above, but with cover of blue HFFR jacket.
FQAR-PG is a halogen-free, PEX-insulated, aluminum-shielded and HFFR-sheathed control cable with round wired conductors of diluted copper wired in pairs. The cable is provided with a tear thread to simplify scaling. The cable is designed according to SS 424 03 21 in applicable parts. The conductor has thread count and resistance according to IEC 60228 class 2. The parties are number marked according to SS 424 17 20. The jacket is marked type / manufacturer / year + month / meter marking. FQAR-PG meets fire spread class D. The cable is approved by SEMKO.
Like FQAR-G, but with twisted pairs in pairs.
The cable is marked with Lifemark TM recycling mark (content declared).
For intrinsically safe facilities. As above, but with cover of blue HFFR jacket.
- Article number: 0128015
- Suppl. article no: 16211098-804-05
- Ean no: 7330000088702
- Replaces art.nbr: 0183125
- Material class QA305A
Technical data
- Packagin Size: 500 M
- Cable type: FQAR-PG
- Dimension conductor x area: 2x0,5 mm²
- Number of cores: 2
- Nominal cross section conductor: 0.5 mm²
- Outer diameter approximate: 6 mm
- Weight/100 m: 5 kg
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Conductor category: Class 2 = stranded
- Colour outer sheath: Blue
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Material outer sheath: Polyolefin
- Material core insulation: Polyolefin
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Nominal voltage U: 250 V
- Nominal voltage U0: 150 V
- Core identification: Numbers
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Min. permitted bending radius, stationary application/permanent installation: 48 mm
- REACH Date: 2021-06-14
- GWP-tot (A1-A3): 0,1646 kgCO2e/M
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
