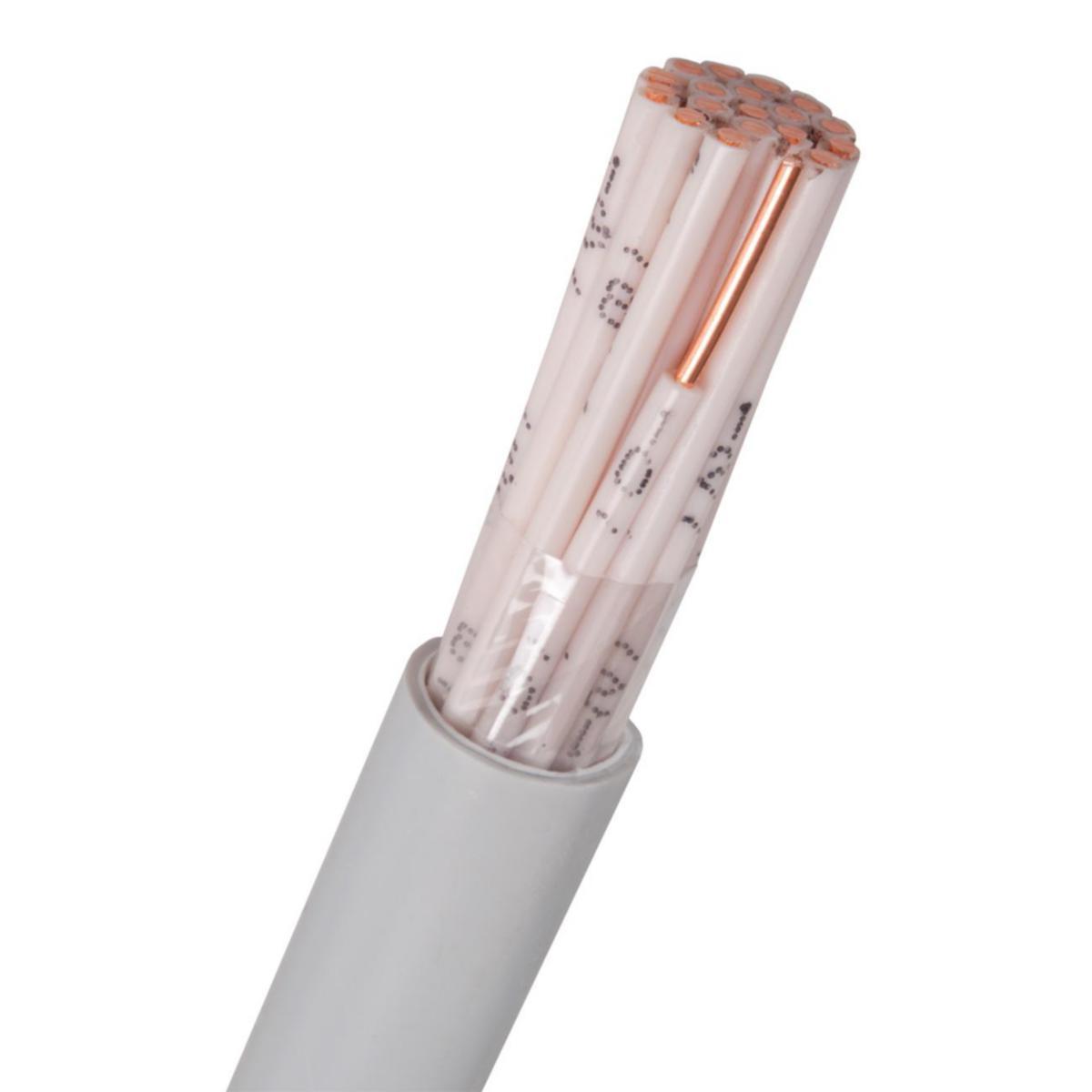

Control cable EQQR 450/700V Dca, Nexans
EQQR 7X1.5 500V LGREY 750 K
Article number: Suppl. article no:
0127550
16162198-898-00
to see price and stock
The cable is intended for fixed installation indoors and outdoors for control, measurement and signal functions in power engineering plants.
EQQR is a halogen-free, PEX-insulated and HFFR-coated control cable with round solid copper conductors. The cable is designed according to SS 424 03 21 in applicable parts. The conductors have thread count and resistance according to IEC 60228 class 1. The parties are number marked according to SS 424 17 20. The jacket is marked type / manufacturer / year + month / meter marking. EQQR meets fire spread class D and does not emit corrosive gases in the event of fire and has little smoke emission. The conductor insulation must be protected against direct UV light. The cable is approved by SEMKO.
The cable is marked with Lifemark TM recycling mark (content declared).
EQQR is a halogen-free, PEX-insulated and HFFR-coated control cable with round solid copper conductors. The cable is designed according to SS 424 03 21 in applicable parts. The conductors have thread count and resistance according to IEC 60228 class 1. The parties are number marked according to SS 424 17 20. The jacket is marked type / manufacturer / year + month / meter marking. EQQR meets fire spread class D and does not emit corrosive gases in the event of fire and has little smoke emission. The conductor insulation must be protected against direct UV light. The cable is approved by SEMKO.
The cable is marked with Lifemark TM recycling mark (content declared).
- Article number: 0127550
- Suppl. article no: 16162198-898-00
- Ean no: 7330000075597
- Replaces art.nbr: 0152020
- Material class QA300A
Technical data
- Cable type: EQQR
- Dimension conductor x area: 7x1,5 mm²
- Number of cores: 7
- Nominal cross section conductor: 1.5 mm²
- Outer diameter approximate: 12 mm
- Weight/100 m: 20 kg
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Conductor category: Class 1 = solid
- Colour outer sheath: Grey
- Permitted cable outer temperature after assembling without vibration: -40-70 °C
- Material outer sheath: Polyolefin
- Material core insulation: Polyolefin
- Low temperature resistant according to EN 60811-504+505+506: Yes
- Nominal voltage U: 750 V
- Nominal voltage U0: 450 V
- Core identification: Numbers
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Min. permitted bending radius, stationary application/permanent installation: 96 mm
- REACH Date: 2021-06-14
- REACH Information obligation: No
- Halogen free according to EN 60754-1/2: Yes
