NKT

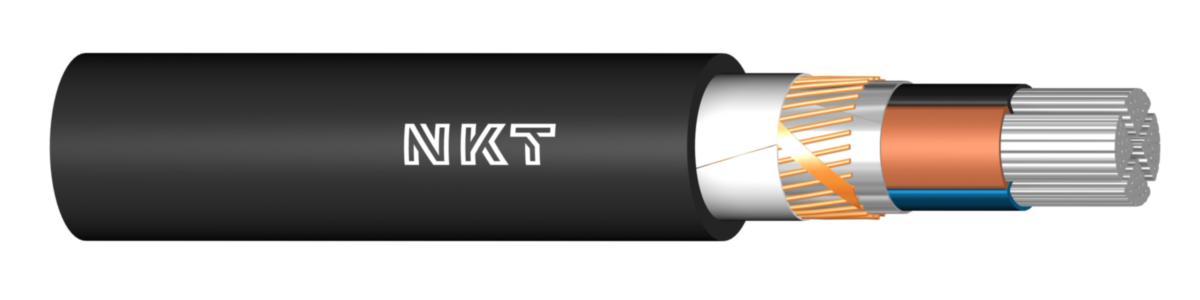

Low voltage AXQJ 1kV Dca, Nkt
AXQJ 3X70/21 (*5)
Article number:
0017730
to see price and stock
Use: Open fixed place, indoors and outdoors, in pipes, in soil, in water, in switchgear and explosive rooms, Disposable.
Conductor temperature: Max. 90 ° C, Short-circuit temperature: Max. 250 ° C, Placement temperature: Min. 0 ° C, Bending radius: Min. 10 x D Tensile force: 30 N / mm² when connected directly to all conductors, however max. 20,000 N. Conductor: Sector-shaped aluminum wire, Insulation: PEX, black, Part marking: 3-conductor: Brown, black, gray, 4-conductor: Blue, brown, black, gray, Banding: Plastic strip, halogen-free, Concentric conductor: Annealed copper wire with counter-coil, Banding: Plastic strip, halogen-free, Sheath: Halogen-free compound, Sheath color: Black, Standard: HD 604 part 5D, SS 424 14 18 in applicable parts, Rated voltage: 1 kV, Test voltage: 3.5 kV, Fire rating: D, CE -conformity: The Low Voltage Directive.
Conductor temperature: Max. 90 ° C, Short-circuit temperature: Max. 250 ° C, Placement temperature: Min. 0 ° C, Bending radius: Min. 10 x D Tensile force: 30 N / mm² when connected directly to all conductors, however max. 20,000 N. Conductor: Sector-shaped aluminum wire, Insulation: PEX, black, Part marking: 3-conductor: Brown, black, gray, 4-conductor: Blue, brown, black, gray, Banding: Plastic strip, halogen-free, Concentric conductor: Annealed copper wire with counter-coil, Banding: Plastic strip, halogen-free, Sheath: Halogen-free compound, Sheath color: Black, Standard: HD 604 part 5D, SS 424 14 18 in applicable parts, Rated voltage: 1 kV, Test voltage: 3.5 kV, Fire rating: D, CE -conformity: The Low Voltage Directive.
- Article number: 0017730
- Ean no: 7394479010978
- Replaces art.nbr: 0006630
- Material class QA190A
Technical data
- Cable type: AXQJ
- Number of cores: 3
- Nominal cross section conductor: 70 mm²
- Dimension conductor x area: 3x70/21 mm²
- Outer diameter approximate: 29 mm
- Colour outer sheath: Black
- Weight/100 m: 132 kg
- Nominal voltage U: 1 kV
- Nominal voltage U0: 0.6 kV
- Halogen free according to EN IEC 60754-2: Yes
- Number of pilot/reduced conductors: 0
- Screen: Yes
- Drain wire: No
- Lead sheath: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fibre optic elements: No
- Inner semi-conducting layer: No
- Concentric conductor: Copper
- Laminated sheath: No
- Conductive coating: No
- Shape of conductor: Sector-shaped
- Conductor category: Class 2 = stranded
- Conductor material: Aluminium
- Conductor surface: Bare
- Longitudinal water blocking screen: No
- Longitudinal water blocking conductors: No
- Material outer sheath: Polyolefin
- Nominal cross section concentric conductor: 21 mm²
- Core identification: Colour
- Low smoke according to EN IEC 61034-2: Yes
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Material core insulation: Other
- Max. permitted conductor temperature: 90 °C
- Outer semi-conducting layer: No
- Specification core insulation: Crosslinked polyethylene (XLPE)
- Certified for shipboard application: No
- Certified as airport lighting cable: No
- Cable geometry: Round
- Suitable as high-voltage cable: No
- Suitable as installation cable: No
- Suitable as medium-voltage cable: No
- With protective conductor: No
- REACH Date: 2021-12-09
- REACH Information obligation: No
