AhlsellProductsElectricCable 00-05, 48-4900 Power cableEarth cable halogen-free 1 kV
Nexans

Earth cable SE-N1XE-R 1kV, Nexans

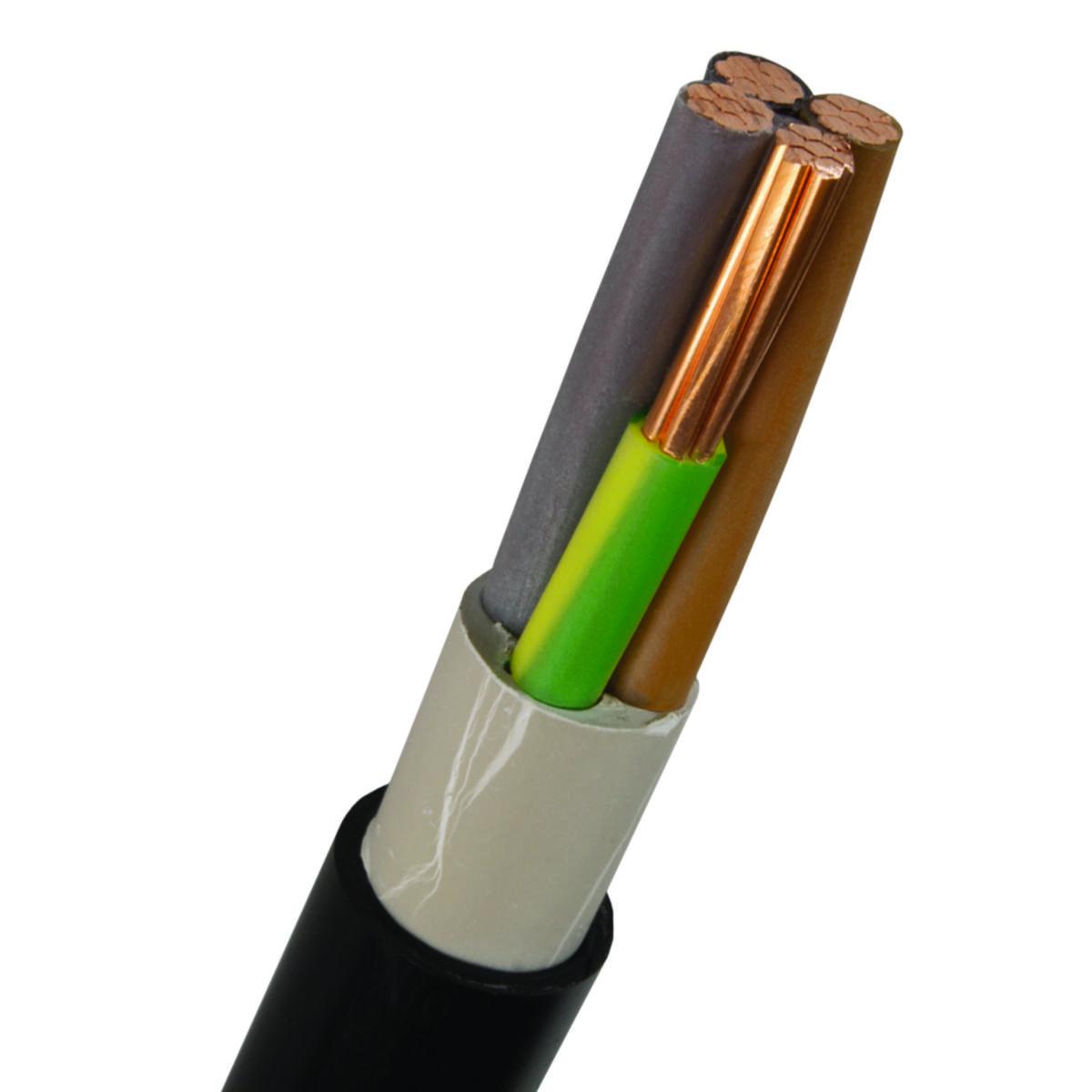

SE-N1XE-R 4G16 1KV BLACK CABLE
Article number:
0012230
Suppl. article no:
15014598-280-00
‌
‌
‌
‌
‌
 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
The cable is designed for fast installation outdoors in air, ground and water. The jacket is marked type/manufacturer/year+month/metre marking. SE-N1XE-U is not fire-resistant. The cable has been approved by SEMKO. The cable is marked with a LifemarkTM recycling mark (contents declaration). SE-N1XE-R is a halogen-free, PEX insulated, black PE-sheathed cable with round stranded copper wires. The cable is designed in accordance with SS 424 14 18. The line has a wire count and resistance in accordance with IEC 60228 class 2. The parts are colour marked according to SS 424 17 20. The cable has a filler.
  • Article number:
    0012230
  • Suppl. article no:
    15014598-280-00
  • Ean no:
    7330000068810
  • Material class
    QA1000
Technical data
  • Packagin Size: 1 M/500 M
  • Cable type: N1XE-R
  • Nominal cross section conductor: 16 mm²
  • Number of cores: 4
  • Dimension conductor x area: 4G16 mm²
  • Outer diameter approx.: 20 mm
  • Colour outer sheath: Black
  • Weight: 860 kg/km
  • Weight/100 m: 78 kg
  • With protective conductor: Yes
  • Conductor material: Copper
  • Number of pilot/reduced conductors: 0
  • Core identification: Colour
  • Conductor category: Class 2 = stranded
  • Nominal voltage U: 1 kV
  • Nominal voltage U0: 0.6 kV
  • Max. permitted conductor temperature: 90 °C
  • Drain wire: No
  • Screen: No
  • Lead sheath: No
  • Reaction-to-fire according to EN 13501-6: Class: None
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
  • Reaction-to-fire according to EN 13501-6: Smoke production: None
  • Reaction-to-fire according to EN 13501-6: Acidity: None
  • Fibre optic elements: No
  • Halogen free according to EN IEC 60754-2: Yes
  • Inner semi-conducting layer: No
  • Concentric conductor: None
  • Laminated sheath: No
  • Conductive coating: No
  • Shape of conductor: Round
  • Conductor surface: Bare
  • Longitudinal water blocking conductors: No
  • Material outer sheath: Other
  • Permitted cable outer temperature after assembling without vibration: -40-70 °C
  • Permitted cable outer temperature during assembling/handling: -20-50 °C
  • Outer semi-conducting layer: No
  • Min. permitted bending radius, stationary application/permanent installation: 160 mm
  • Specification core insulation: Crosslinked polyethylene (XLPE)
  • Specification material outer sheath: Polyethylene (PE)
  • Certified for shipboard application: No
  • Certified as airport lighting cable: No
  • Cable geometry: Round
  • Conductor resistance at 20 °C: 1.15 Ohm/km
  • Suitable for underground installation: Yes
  • Max. tensile strength during installation: 3.2 kN
  • With rodent protection: No
  • Number of strands per conductor: 7
  • Circuit integrity: None
  • UV resistant: Yes
  • REACH Date: 2021-06-14
  • Armouring: No
  • REACH Information obligation: No
  • Halogen free according to EN 60754-1/2: Yes
  • Flame retardant: No
  • Insulation integrity according to IEC 60331: No
  • Oil resistant (according to IEC 60811-404): Yes
  • Insulation integrity: None
