Earth cable SE-N1XE-AS FleX 1kV, Nkt

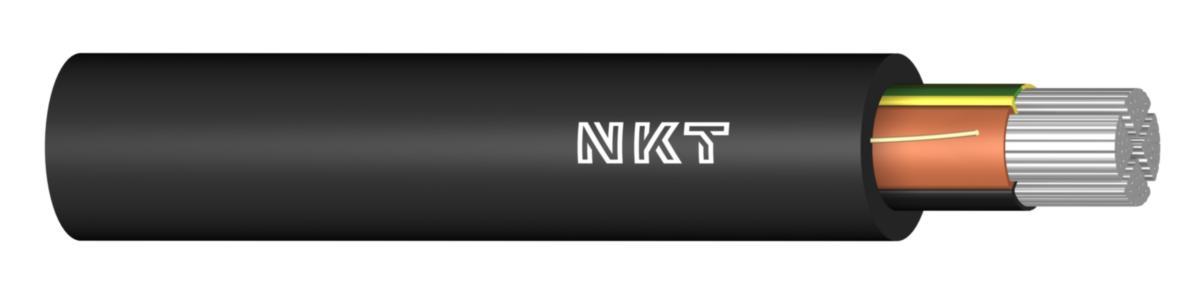

SE-N1XE-AR FLEX 4G50 CABLE
Article number: Suppl. article no:
0008060
110704009
to see price and stock
Halogen-free, PEX-insulated PE-sheathed cable for fixed installation in ground, water, and pipe. Suitable for plowing. The cable is flexible, making it easy to install even at low temperatures. Tear thread for easy jacket stripping. The cable is manufactured in accordance with SS 424 14 18, HD 603 5O.
- Article number: 0008060
- Suppl. article no: 110704009
- Ean no: 7394479011289
- Material class QA170A
Technical data
- Cable type: N1XE-AR
- Number of cores: 4
- Nominal cross section conductor: 50 mm²
- Dimension conductor x area: 4G50 mm²
- Outer diameter approx.: 27 mm
- Colour outer sheath: Black
- Weight/100 m: 70 kg
- Nominal voltage U: 1 kV
- Nominal voltage U0: 0.6 kV
- Halogen free according to EN IEC 60754-2: Yes
- Number of pilot/reduced conductors: 0
- Screen: No
- Drain wire: No
- Lead sheath: No
- Reaction-to-fire according to EN 13501-6: Class: Fca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: None
- Fibre optic elements: No
- Inner semi-conducting layer: No
- Concentric conductor: None
- Laminated sheath: No
- Conductive coating: No
- Shape of conductor: Round
- Conductor category: Class 2 = stranded
- Conductor material: Aluminium
- Conductor surface: Bare
- Longitudinal water blocking screen: No
- Longitudinal water blocking conductors: No
- Material outer sheath: Other
- Core identification: Colour
- Reaction-to-fire according to EN 13501-6: Smoke production: None
- Reaction-to-fire according to EN 13501-6: Acidity: None
- Material core insulation: Other
- Max. conductor temperature: 90 °C
- Outer semi-conducting layer: No
- Specification core insulation: Crosslinked polyethylene (XLPE)
- Specification material outer sheath: Polyethylene (PE)
- Circuit integrity: None
- Cable geometry: Round
- With protective conductor: Yes
- REACH Date: 2021-12-09
- REACH Information obligation: No
- Flame retardant: No
- Low smoke (according to EN 61034-2): No
- Insulation integrity: None
