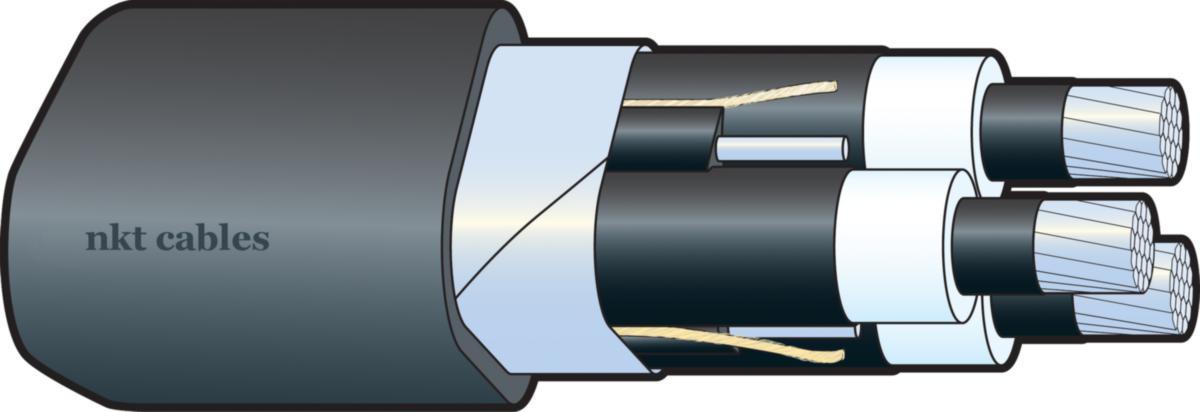

Medium voltage cable AXAL TT 24kV, NKT
AXAL-TT 3X240/50 AL 24KV PRO 3-LEDARE 24 KV
Article number:
0074985
to see price and stock
Three-conductor cable for fixed installation in ground, water and pipes. Extra impact-resistant jacket. Easy to install at low temperatures. Made of material for easy recycling.
- Article number: 0074985
- Ean no: 7394479005844
- Material class QA2550
Technical data
- Packagin Size: 500 M
- Cable type: AXAL-TT
- Nominal cross section conductor: 240 mm²
- Number of cores: 3
- Dimension conductor x area: 3x240/50 mm²
- Outer diameter approximate: 70 mm
- Colour outer sheath: Black
- Conductor material: Aluminium
- Core identification: None
- Conductor category: Class 2 = stranded
- Nominal voltage U: 20 kV
- Nominal voltage U0: 12 kV
- Max. permitted conductor temperature: 90 °C
- Lead sheath: No
- Fibre optic elements: No
- Laminated sheath: Yes
- Conductive coating: No
- Shape of conductor: Round
- Conductor surface: Bare
- Longitudinal water blocking screen: Yes
- Longitudinal water blocking conductors: Yes
- REACH Date: 2021-12-09
- REACH Information obligation: No
