Siemens
IE FC Connector plugs Cat5e 2x2 IP20

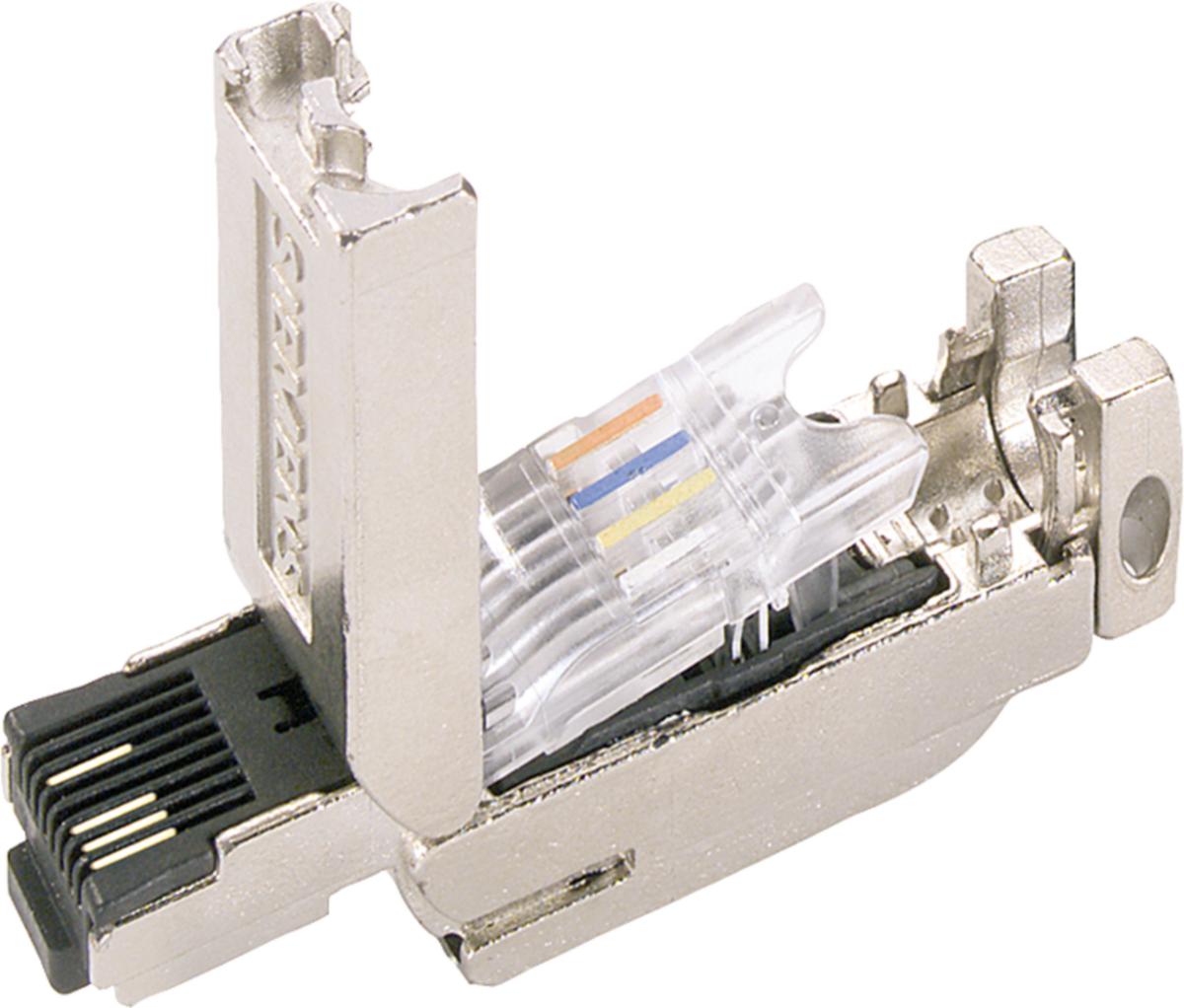

IE FC RJ45 PLUG 180 2X2 6GK1901-1BB10-2AA0
Article number: Suppl. article no:
5140209
6GK1901-1BB10-2AA0
to see price and stock
IE FC RJ45 connectors 2 x 2 are compact and robust plug connections. The connections have a robust metal housing suitable for industries and provide protection against interference with data communication. The connections meet the standards EN 50173 and ISO / IEC 11801.IE FC RJ45 connectors 2 x 2 are used for to install 4-wire IE FC TP cable in the field.
The connector enables point-to-point connections (10/100 Mbps) to be implemented for Industrial Ethernet between two end devices / network components up to 100 m without patch cables.
The connector enables point-to-point connections (10/100 Mbps) to be implemented for Industrial Ethernet between two end devices / network components up to 100 m without patch cables.
- Article number: 5140209
- Suppl. article no: 6GK1901-1BB10-2AA0
- Ean no: 4019169403931
- Replaces art.nbr: 4504720
- Material class QR7610
Technical data
- Length: 55 mm
- Height: 16 mm
- Width: 13.7 mm
- Operating temperature: -40-85 °C
- Degree of protection (IP), mounted: IP20
- REACH contains candidate substances: Bly
- REACH Date: 2022-03-14
- Housing material: Other
- Type of locking: Other
- REACH Information obligation: Yes
