Siemens
IE FC Connector plugs Cat6 and 6a 4x2 IP20
CONTACT IE RJ45 4X2 FC STR 6GK1901-1BB11-2AA0
Article number: Suppl. article no:
5140206
6GK1901-1BB11-2AA0
to see price and stock

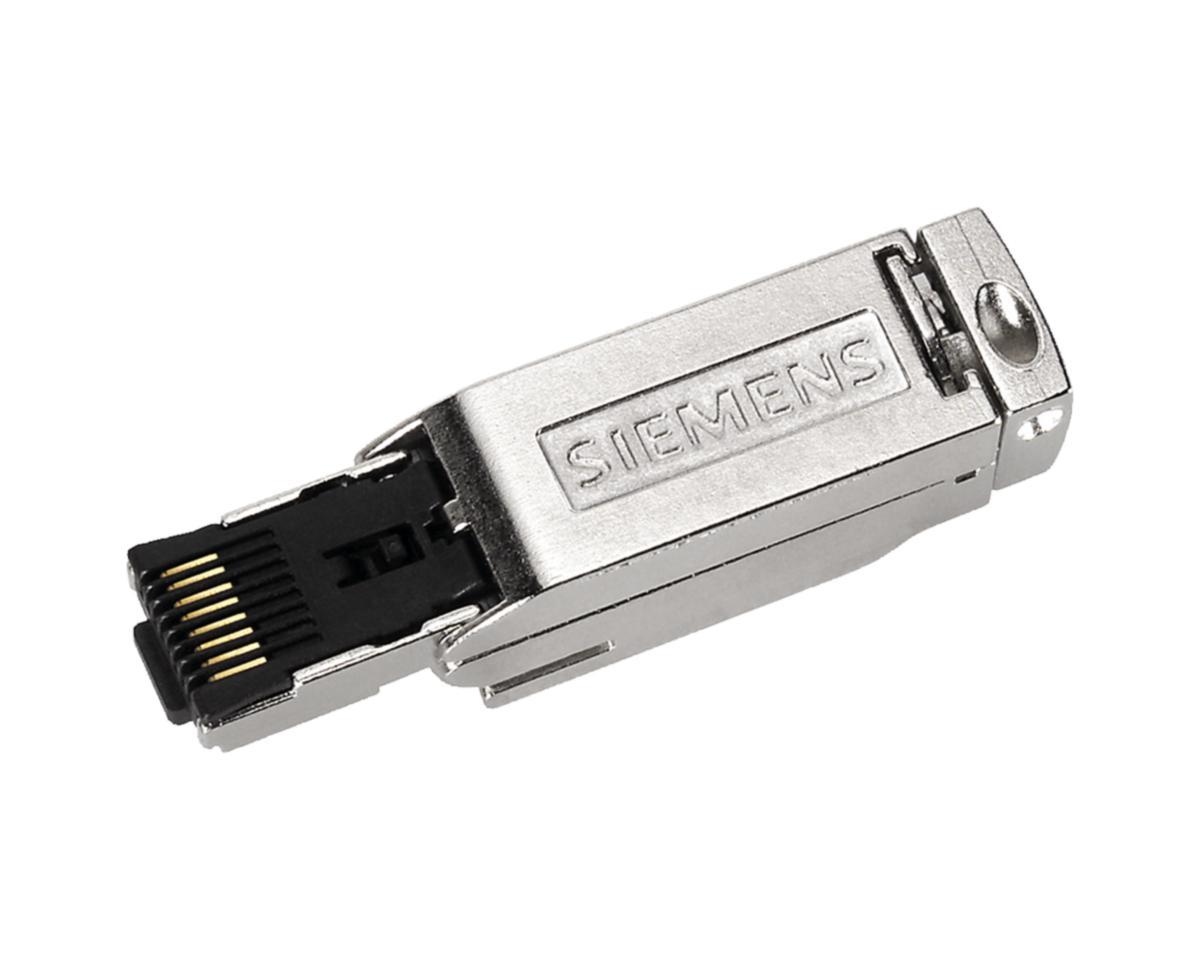

IE FC RJ45 PLUG 180 (4 x 2) is an RJ45 plug connector for data with a metal housing suitable for industries and has a straight cable outlet (180 °). The connector is suitable for mounting on 8-wire IE FastConnect cable (24 AWG ) and meets the requirements of the standard CAT6a according to ISO / IEC 11801.
Maximum transfer rate is 10 Gbps. Thanks to FastConnect technology, field mounting is possible without any problems. The design of the housing fits all SIMATIC NET modules and SCALANCE devices.
Maximum transfer rate is 10 Gbps. Thanks to FastConnect technology, field mounting is possible without any problems. The design of the housing fits all SIMATIC NET modules and SCALANCE devices.
- Article number: 5140206
- Suppl. article no: 6GK1901-1BB11-2AA0
- Ean no: 4019169853965
- Replaces art.nbr: 4504714
- Material class QR7610
Technical data
- Length: 55 mm
- Height: 16 mm
- Width: 13.7 mm
- Operating temperature: -40-85 °C
- Degree of protection (IP), mounted: IP20
- REACH contains candidate substances: Bly
- REACH Date: 2022-03-14
- Housing material: Other
- Type of locking: Other
- REACH Information obligation: Yes
