Operator panel Basic 2

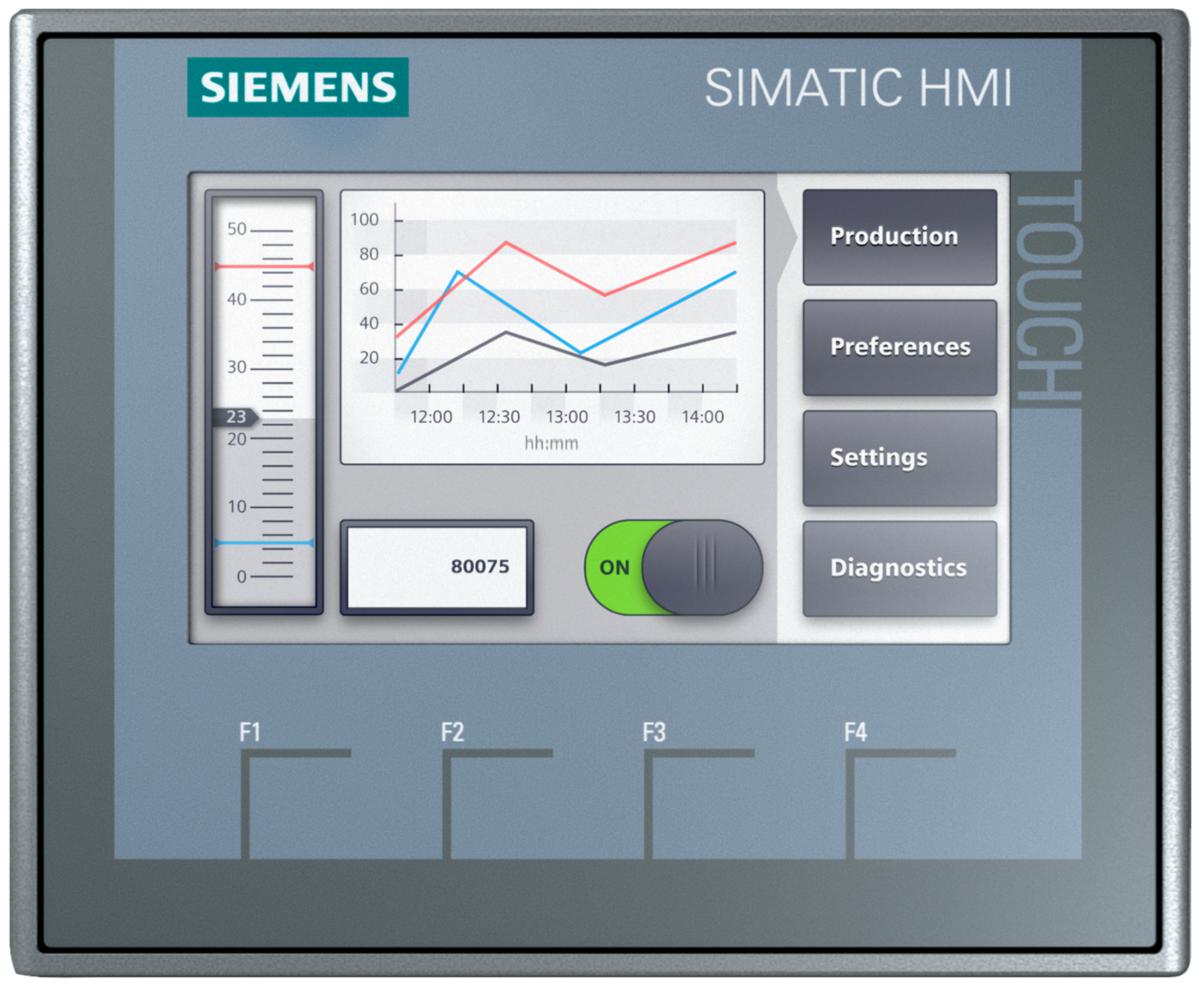

SIMATIC HMI KTP400 BASIC 6AV2123-2DB03-0AX0
Article number: Suppl. article no:
4503106
6AV2123-2DB03-0AX0
to see price and stock

Simatic HMI, KTP 700 Basic, Basic panel, key and touch control, 7" TFT display, 65536 colours, Profinet interface, configuration from WinCC Basic v13/ Step7 Basic v13, contains Open source sw, which is supplied free of charge for details see CD
- Article number: 4503106
- Suppl. article no: 6AV2123-2DB03-0AX0
- Ean no: 4034106029203
- Material class QP8140
Technical data
- Type: 6AV2123-2DB03-0AX0
- Screen diagonal: 4.3 inch
- Supply voltage DC: 19.2-28.8 V
- Width of the front: 141 mm
- Height of the front: 116 mm
- Number of colours of the display: 65536
- Number of pixels, horizontal: 480
- Number of pixels, vertical: 272
- Colour display: Yes
- Degree of protection (IP), front side: IP65
- Number of buttons with LED: 0
- Number of system buttons: 0
- Built-in depth: 33 mm
- Type of display: TFT
- Voltage type (supply voltage): DC
- Number of function buttons, programmable: 4
- Number of interfaces PROFINET: 1
- Number of HW-interfaces RS-232: 0
- Number of HW-interfaces RS-422: 0
- Number of HW-interfaces RS-485: 0
- Number of HW-interfaces USB: 1
- Number of HW-interfaces industrial Ethernet: 1
- Number of HW-interfaces parallel: 0
- Number of HW-interfaces serial TTY: 0
- Number of HW-interfaces wireless: 0
- Number of HW-interfaces other: 0
- Number of password levels: 50
- Number of online languages: 10
- Usable project memory/user memory: 10000 kByte
- Operating temperature: 0-50 °C
- Additional software components, loadable: No
- IO link master: No
- Suitable for safety functions: No
- With alpha numeric keyboard: Yes
- With message indication: Yes
- With message system (incl. buffer and confirmation): Yes
- With SW interfaces: No
- With numeric keyboard: Yes
- With recipes: Yes
- Process default value (input) possible: Yes
- Process value representation (output) possible: Yes
- Radio standard Bluetooth: No
- Radio standard GPRS: No
- Radio standard GSM: No
- Mobile communications standard 3G (UMTS): No
- Radio standard WLAN 802.11: No
- Suitable for rail mounting: No
- With printer output: No
- Supporting protocol for AS-Interface Safety at Work: No
- Supporting protocol for ASI: No
- Supporting protocol for CAN: No
- Supporting protocol for Data-Highway: No
- Supporting protocol for DeviceNet: No
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for EtherNet/IP: Yes
- Supporting protocol for Foundation Fieldbus: No
- Supporting protocol for INTERBUS: No
- Supporting protocol for INTERBUS-Safety: No
- Supporting protocol for KNX: No
- Supporting protocol for LON: No
- Supporting protocol for Modbus: Yes
- Supporting protocol for PROFIBUS: No
- Supporting protocol for PROFINET CBA: No
- Supporting protocol for PROFINET IO: No
- Supporting protocol for PROFIsafe: No
- Supporting protocol for SERCOS: No
- Supporting protocol for SUCONET: No
- Supporting protocol for SafetyBUS p: No
- Supporting protocol for TCP/IP: Yes
- Supporting protocol for other bus systems: Yes
- Wall mounting/direct mounting: No
- REACH Date: 2022-03-14
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
