Crouzet

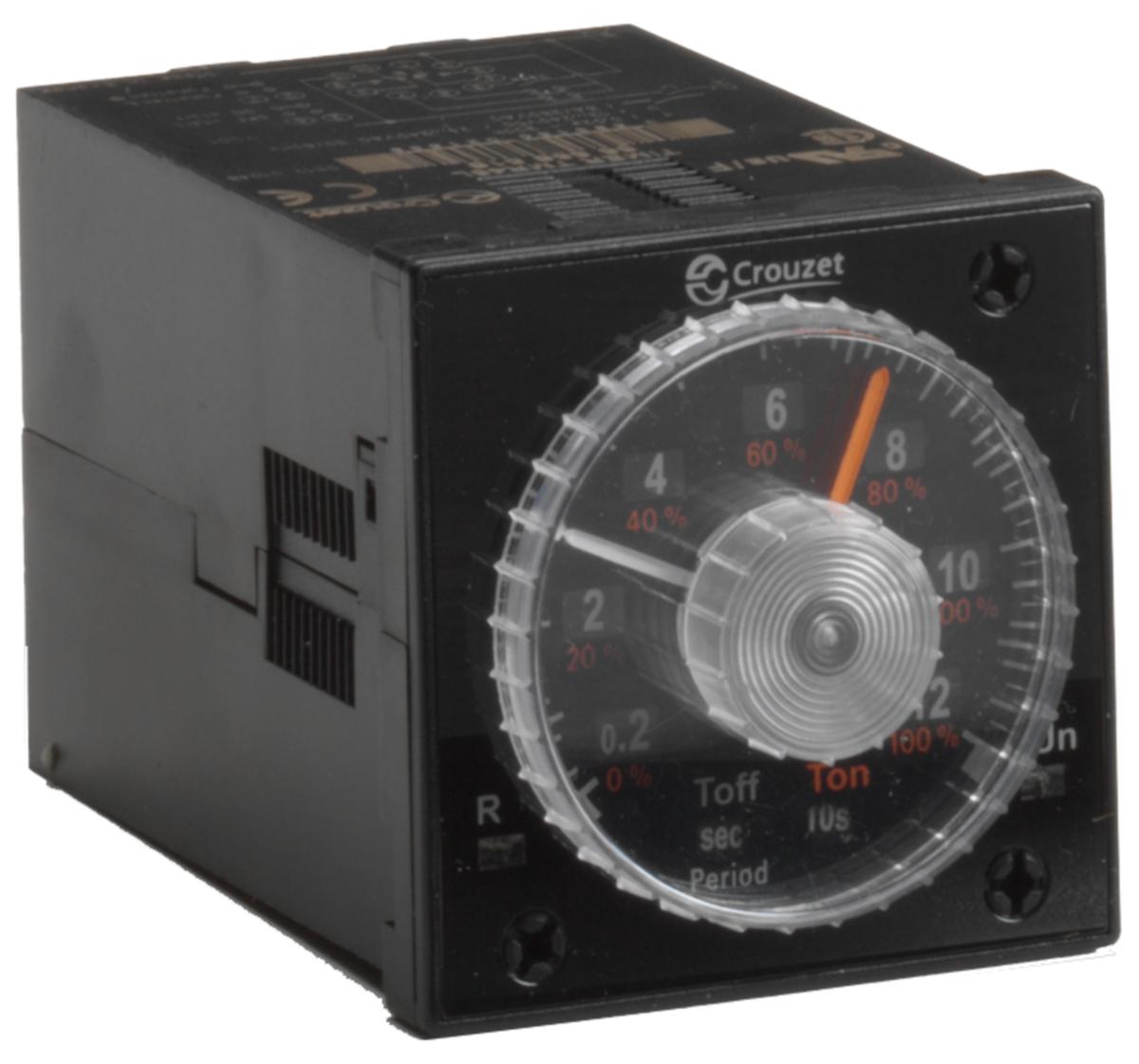

Timer relay panel-mounting TMR
TIMER TMR48U 002S-300H 88886016
Article number: Suppl. article no:
4030690
88886016
to see price and stock
To shop with us, you need a registered company and a customer number.
Description:
Multifunction or Monofunktion11 Pin Socket
Functional description:
Multifunction U: A-B-C-W-G-Ac-Bw
Monofunction: A / L-Li-G-Gi
Multifunction or Monofunktion11 Pin Socket
Functional description:
Multifunction U: A-B-C-W-G-Ac-Bw
Monofunction: A / L-Li-G-Gi
- Article number: 4030690
- Suppl. article no: 88886016
- Material class QP530B
Technical data
- Packagin Size: 1 ST/10 ST
- Type: TMR 48U
- Design: Multi
- Rated control supply voltage DC: 12-240 V
- Rated control supply voltage AC 50 Hz: 12-240 V
- Type of electric connection: Plug-in connection
- Voltage type for actuating: AC/DC
- Time range: 0.02-1080000 s
- Function delay-on energization: Yes
- Function delay on de-energization: Yes
- Function pulse shaping: Yes
- Function flashing, starting with pause, fixed time: Yes
- Function flashing, starting with pulse, fixed time: Yes
- Remote operation possible: No
- Number of outputs, delayed, change-over contact: 2
- With semiconductor output: No
- Width: 48 mm
- Height: 48 mm
- Depth: 96.8 mm
- Attached to: 11 pin socket/Panel
- Information: Connection: 11 pole base
Power consumption: Max 4.8 VA 230VAC
IP class: IP 50 Panel mounted
Output: 2 alternating contacts - Tolerance: ± 10% DC / +15% -10% AC
