Timer relay switching delay

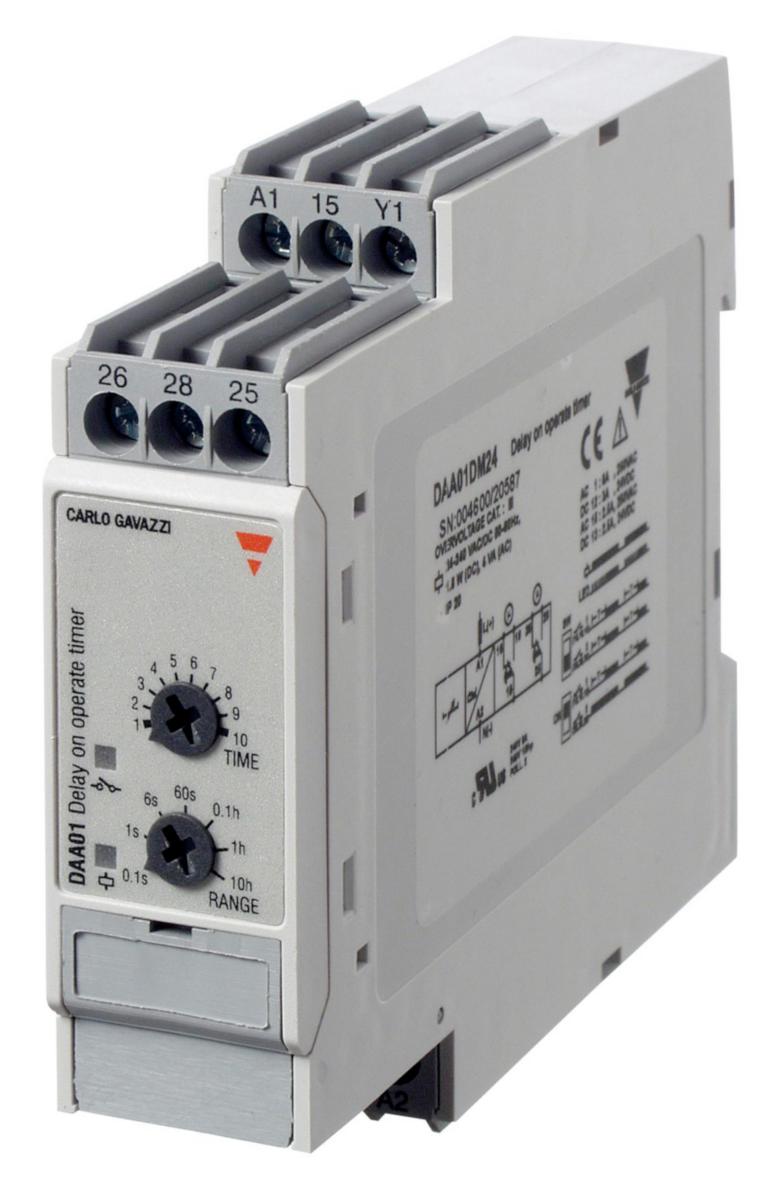

TIMER DELAY ON OPER.DIN-22,5 DAA01DM24
Article number:
4036440
to see price and stock
To shop with us, you need a registered company and a customer number.
Functional description
When the supply voltage is connected, the time count starts. After the set time, the relay activates and will be the pull until the supply voltage is broken. DAA/PAA, 2 switch-on delayed contacts or 1 switch-on delayed and 1 instantaneous contact.

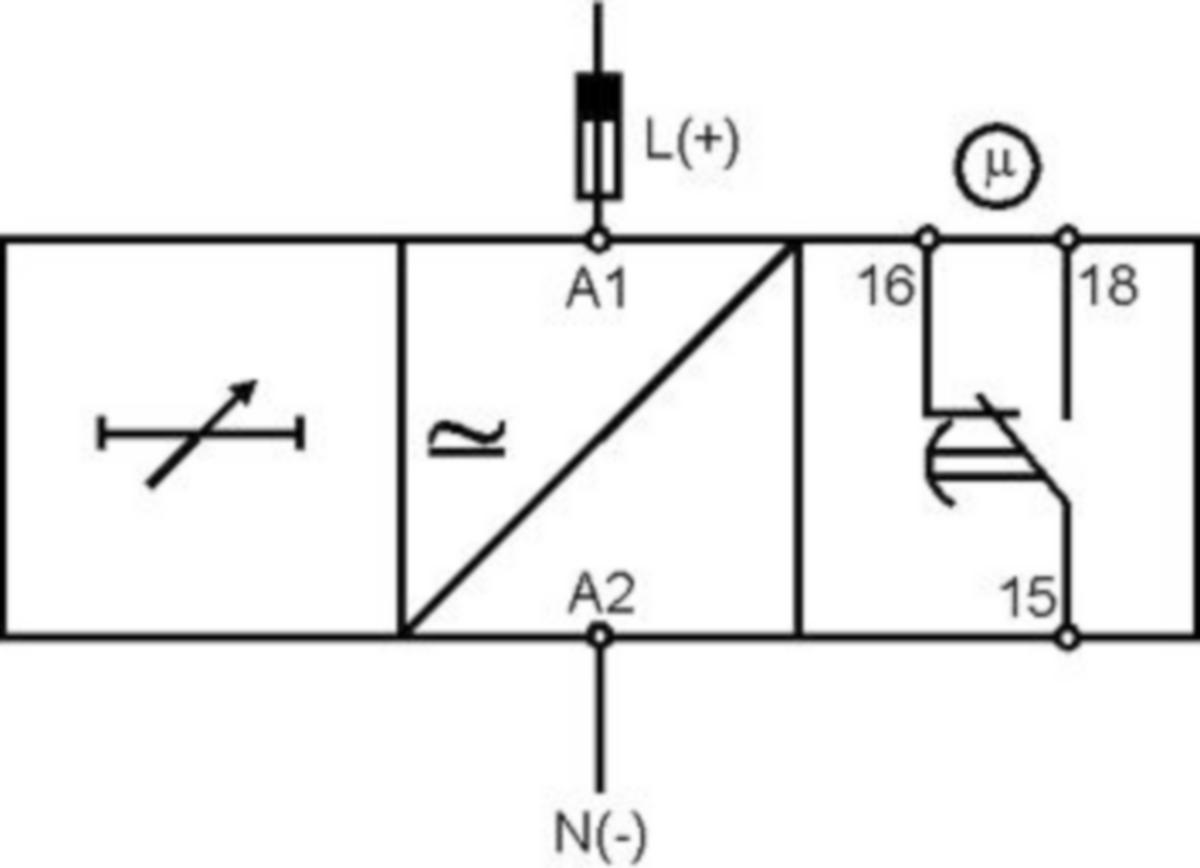

All relevant data, as well as the circuit diagram are clearly marked on the side of the relays.
Technical data
When the supply voltage is connected, the time count starts. After the set time, the relay activates and will be the pull until the supply voltage is broken. DAA/PAA, 2 switch-on delayed contacts or 1 switch-on delayed and 1 instantaneous contact.
All relevant data, as well as the circuit diagram are clearly marked on the side of the relays.
Technical data
- Article number: 4036440
- Ean no: 8030956000030
- Material class QP581B
Technical data
- Type: DAA01DM24
- Rated control supply voltage DC: 24-240 V
- Rated control supply voltage AC 50 Hz: 24-240 V
- Type of electric connection: Screw connection
- Voltage type for actuating: AC/DC
- Time range: 0.1-360000
- Rated control supply voltage AC 60 Hz: 24-240 V
- Function delay-on energization: Yes
- Function delay on de-energization: No
- Function floating contact on energization: No
- Function floating contact on de-energization: No
- Function star-delta: No
- Function pulse shaping: No
- Function flashing, starting with pause, fixed time: No
- Function flashing, starting with pulse, fixed time: No
- Clock function, starting with pause, variable: No
- Clock function, starting with pulse, variable: No
- Remote operation possible: No
- Suitable as remote control: No
- Pluggable on auxiliary contact block: No
- Number of outputs, undelayed, normally closed contact: 0
- Number of outputs, undelayed, normally open contact: 1
- Number of outputs, undelayed, change-over contact: 0
- Number of outputs, delayed, normally closed contact: 0
- Number of outputs, delayed, normally open contact: 0
- Number of outputs, delayed, change-over contact: 2
- Outputs, reversible delayed/undelayed: Yes
- With semiconductor output: No
- Width: 22.5 mm
- Height: 83.5 mm
- Depth: 94 mm
- Attached to: DIN
- Relay output: 2 alt. contact
8A/250VAC - Dimension other: 22,5x80x99,5
- Indication: 2 LEDs. Green lights up when the control voltage is connected. Yellow lights up when the relay is closed and flashes during the time calculation.
- With plug-in socket: No
