Timer relay shutoff-delayed - TRUE DEL. ON RELEASE TIMER DIN DBB01DM24
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/_8/12/21110_1_812.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/_8/12/21107_1_812.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/_8/12/21108_1_812.jpg
https://www.youtube.com/watch?v=/external-assets/JPEGlarge800_800/_8/12/21109_1_812.jpg
Carlo Gavazzi

Timer relay shutoff-delayed

TRUE DEL. ON RELEASE TIMER DIN DBB01DM24
Article number:
4036435
Suppl. article no:
DBB01DM24
Normally in stock
 to view the store status of the store
 to see price and stock
Functional description

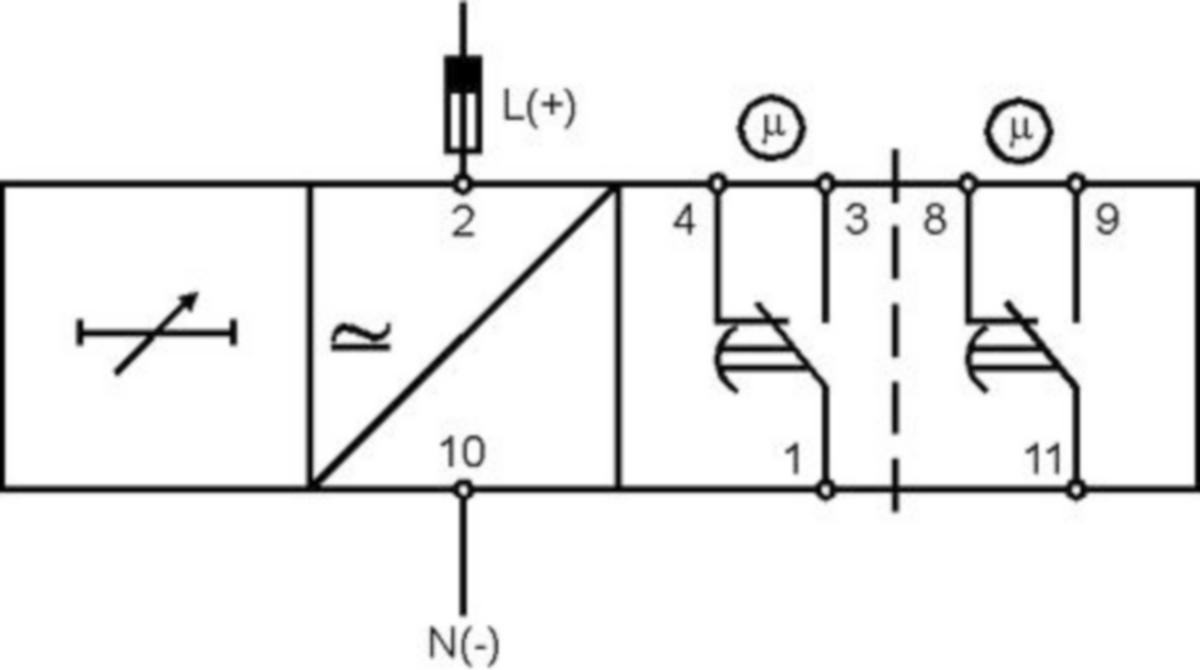

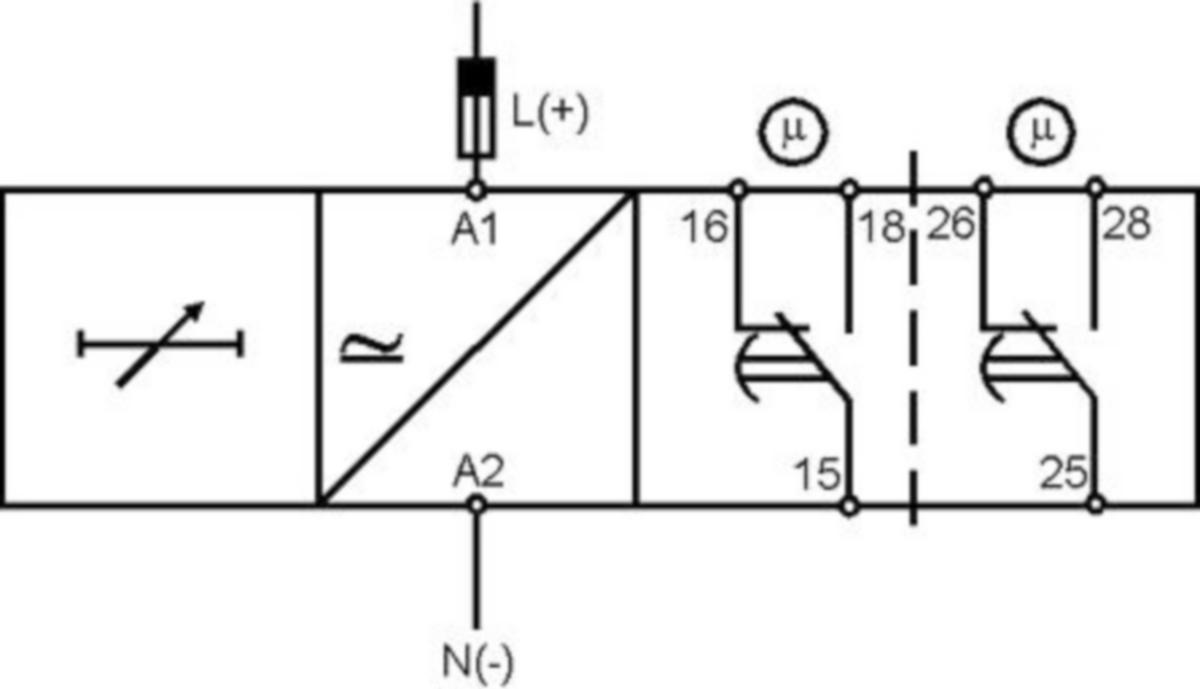

When the supply voltage is connected, the relay activates. When the supply voltage is interrupted, the relay starts and turns off after the set time. All relevant data and wiring diagrams are clearly marked on the side of the relays.
  • Article number:
    4036435
  • Suppl. article no:
    DBB01DM24
  • Ean no:
    8030956001204
  • Material class
    QP581B
Technical data
  • Type: DBB01DM24
  • Design: DIN
  • Rated control supply voltage DC: 24-240 V
  • Rated control supply voltage AC 50 Hz: 24-240 V
  • Type of electric connection: Screw connection
  • Voltage type for actuating: AC/DC
  • Time range: 0.1-600 s
  • Rated control supply voltage AC 60 Hz: 24-240 V
  • Function delay-on energization: No
  • Function delay on de-energization: Yes
  • Function floating contact on energization: No
  • Function floating contact on de-energization: No
  • Function star-delta: No
  • Function pulse shaping: No
  • Function flashing, starting with pause, fixed time: No
  • Function flashing, starting with pulse, fixed time: No
  • Clock function, starting with pause, variable: No
  • Clock function, starting with pulse, variable: No
  • Remote operation possible: No
  • Suitable as remote control: No
  • Pluggable on auxiliary contact block: No
  • Number of outputs, undelayed, normally closed contact: 0
  • Number of outputs, undelayed, normally open contact: 0
  • Number of outputs, undelayed, change-over contact: 0
  • Number of outputs, delayed, normally closed contact: 0
  • Number of outputs, delayed, normally open contact: 0
  • Number of outputs, delayed, change-over contact: 2
  • Outputs, reversible delayed/undelayed: No
  • With semiconductor output: No
  • Width: 22.5 mm
  • Height: 83.5 mm
  • Depth: 99.5 mm
  • Attached to: DIN
  • Relay output: 2 alt. contact
    8A/250VAC
  • Indication: 2 LEDs. Green lights up when the control voltage is connected. Yellow lights up when the relay is closed and flashes during the time calculation.
  • Dimension other: 22,5x80x99,5
  • With plug-in socket: No
