Schneider Electric
Timer relay RE22

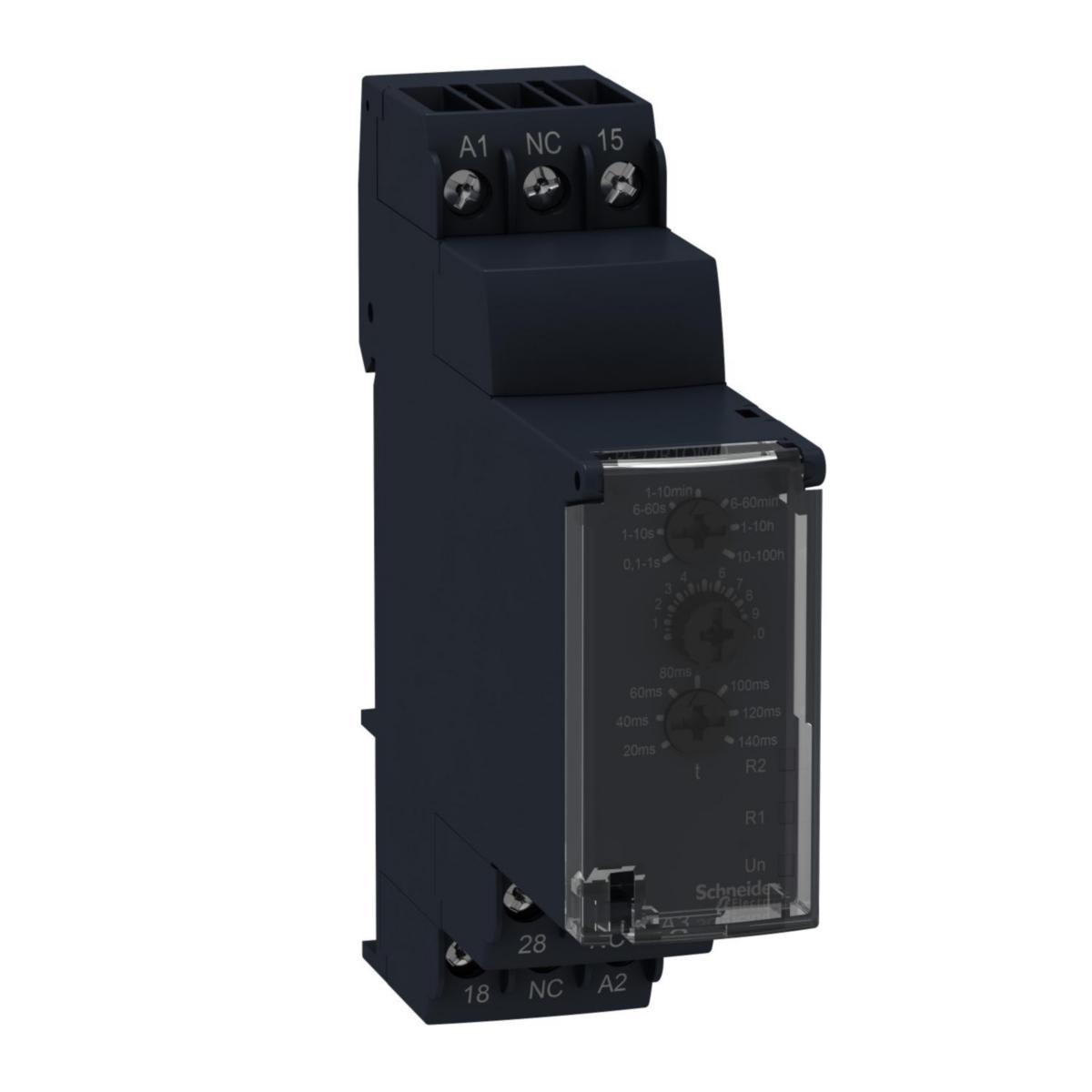

STAR-DELTA TIMER RELAY RE22R1QMQ
Article number: Suppl. article no:
4030086
RE22R1QMQ
to see price and stock
Width 22.5 mm
- Article number: 4030086
- Suppl. article no: RE22R1QMQ
- Ean no: 3606480676550
- Material class QP550B
Technical data
- Packagin Size: 1 ST/40 ST
- Type: RE22R1QMQ
- Rated control supply voltage AC 50 Hz: 230-440 V
- Type of electric connection: Screw connection
- Voltage type for actuating: AC
- Time range: 0.1-360000
- Rated control supply voltage AC 60 Hz: 230-440 V
- Function delay-on energization: No
- Function delay on de-energization: Yes
- Function floating contact on energization: No
- Function floating contact on de-energization: No
- Function star-delta: Yes
- Function pulse shaping: No
- Function flashing, starting with pause, fixed time: No
- Function flashing, starting with pulse, fixed time: No
- Clock function, starting with pause, variable: No
- Clock function, starting with pulse, variable: No
- Remote operation possible: Yes
- Suitable as remote control: No
- Pluggable on auxiliary contact block: No
- Number of outputs, undelayed, normally closed contact: 0
- Number of outputs, undelayed, normally open contact: 0
- Number of outputs, undelayed, change-over contact: 0
- Number of outputs, delayed, normally closed contact: 0
- Number of outputs, delayed, normally open contact: 0
- Number of outputs, delayed, change-over contact: 1
- Outputs, reversible delayed/undelayed: No
- With semiconductor output: No
- Width: 22.5 mm
- Height: 90 mm
- Depth: 73 mm
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- With plug-in socket: No
