Crouzet

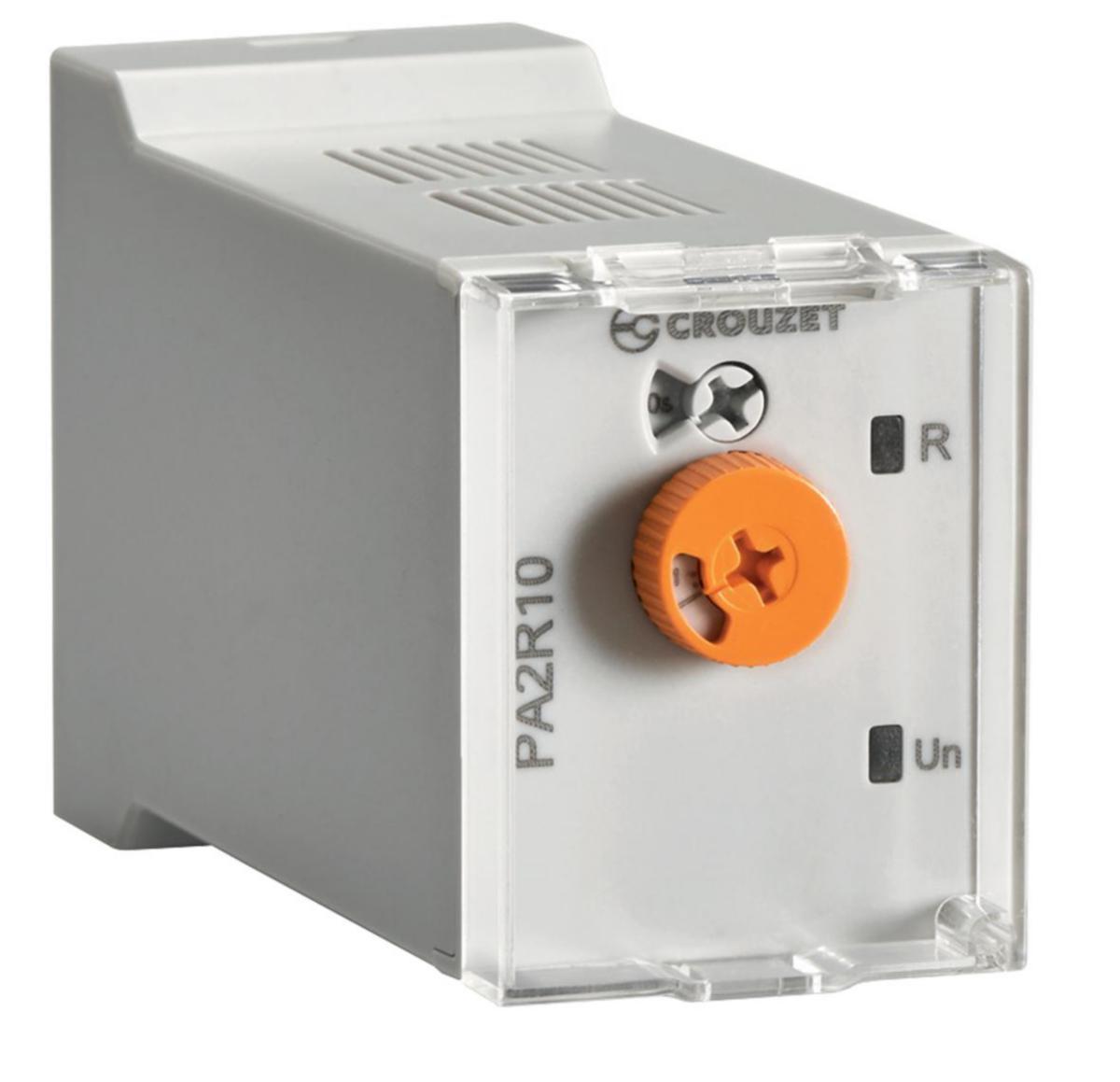

Time relay Syr-line type P
SYRLINE ON-DEL 10A 12-240V 11P PA2R10MV1
Article number: Suppl. article no:
4030189
PA2R10MV1
to see price and stock
To shop with us, you need a registered company and a customer number.
• Single function
• 11-pin socket
• 7 time ranges 0.5 s - 240 h
• Multi-voltage 12-240 V AC / DC
• Two 10A relay contacts
• 11-pin socket
• 7 time ranges 0.5 s - 240 h
• Multi-voltage 12-240 V AC / DC
• Two 10A relay contacts
- Article number: 4030189
- Suppl. article no: PA2R10MV1
- Ean no: 3593150048444
- Material class QP530B
Technical data
- Rated control supply voltage DC: 12-240 V
- Rated control supply voltage AC 50 Hz: 12-240 V
- Type of electric connection: Plug-in connection
- Voltage type for actuating: AC/DC
- Time range: 0.5-864000 s
- Function delay-on energization: Yes
- Number of outputs, delayed, change-over contact: 2
- Width: 35 mm
- Height: 45 mm
- Depth: 82 mm
- REACH Date: 2021-10-09
- REACH Information obligation: No
