Weidmüller

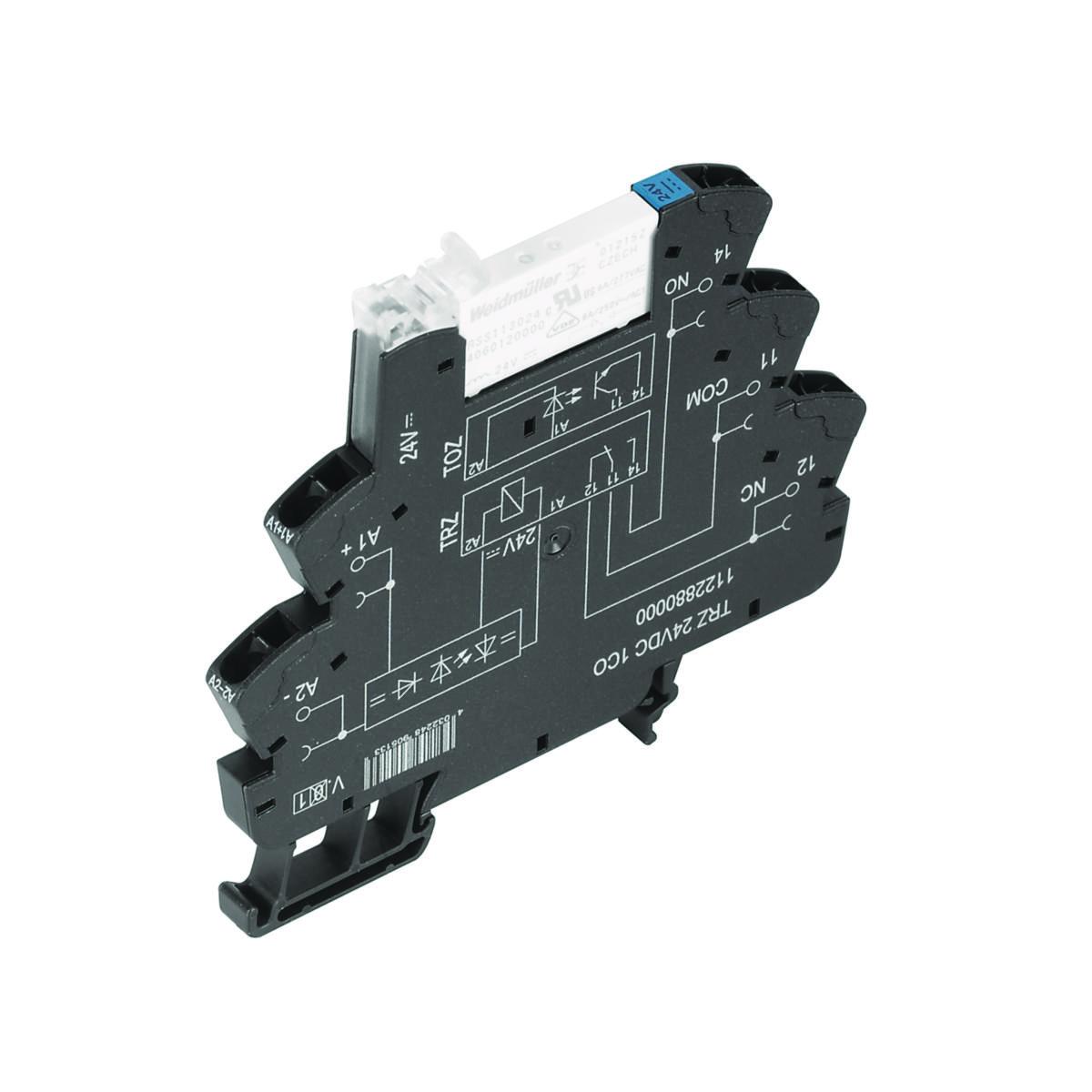

Terminal block relay TRZ
RELAY TERM F 24VDC 1CO 6A TRZ 24VDC 1CO
Article number: Suppl. article no:
4028909
1122880000
to see price and stock
Term series. Jackable units for mounting on DIN rail. Builds 6 gxl) / 12.8 (2 vxl) mm and can be selected with screw or spring connection.
Clear status indication even in difficult display conditions
Unlimited switching options, even outside section plates, ensure flexible use
Plug-and-Play solution with interface adapter enables a minimized effort when wiring. The adapter provides a large space advantage in interaction with the Term Series
Clear status indication even in difficult display conditions
Unlimited switching options, even outside section plates, ensure flexible use
Plug-and-Play solution with interface adapter enables a minimized effort when wiring. The adapter provides a large space advantage in interaction with the Term Series
- Article number: 4028909
- Suppl. article no: 1122880000
- Ean no: 4032248905133
- Material class QP435B
Technical data
- Packagin Size: 10 ST
- Type: TRZ 24VDC 1CO
- Type of electric connection: Spring clamp connection
- Rated control supply voltage DC: 19.2-28.8 V
- Voltage type for actuating: AC
- Drive, polarization: Polarized
- Drive, switching attitude: Mono stable
- Nominal current: 6 A
- Number of contacts as change-over contact: 1
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- With forced-guided contacts: No
- Type of switch contact: Single contact
- With LED indication: Yes
- Width: 6.4 mm
- Height: 90.5 mm
- Depth: 87.8 mm
- Complete with socket: Yes
- With detachable clamps: No
- Degree of protection (IP): IP20
- REACH Date: 2022-10-28
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
