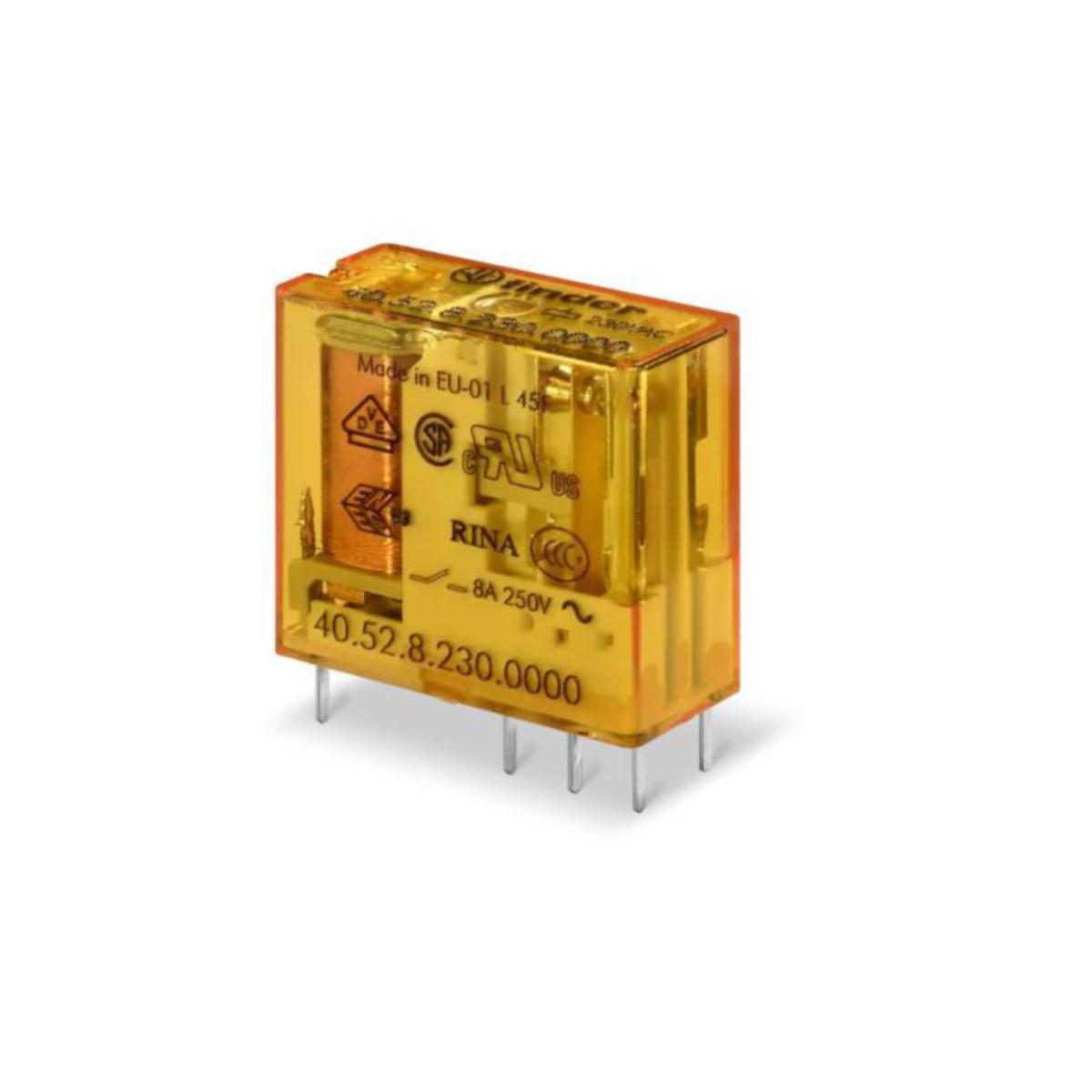

Auxiliary relay/output relay Compact type 40

RELAY 40 2P 230VAC 8A F40528230

Article number:

4006837

Suppl. article no:

405282300000

‌
‌
‌

‌
‌

to see price and stock

5 and 8 pin plug-in version for installation in the base or circuit board. 1 pc switching with 10 amp connector (5 pins) or 16 A power connector (8 pins). 2 shifts 5 A (8 pins). Relays with AC voltage coil have yellow casing and DC coil has light blue casing. Insulation voltage coil-contact group 4000 V AC.
High packing density as the width of the base is 15.5 mm.
Low control power (AC 1.3 VA, DC 0.65 W) = short warming up.
The plinth is mounted on a 35 mm symmetrical DIN rail or with 1 screw (M3) on the mounting plate. The relays are SEMKO approved.
Mechanical service life: 10x106AC, 20x106DC
Voltage range: 0.8-1.1 x rated voltage AC. 0.73-1.5 X rated voltage DC.
Ambient temperature: -40°C to +70°C

Article number:
4006837
Copy to clipboard
Suppl. article no:
405282300000
Copy to clipboard
Ean no:
8012823240282
Copy to clipboard
Material class
QP433B
Copy to clipboard

Technical data

Packagin Size: 1 ST/50 ST/100 ST
Type: F40528230
Design: Miniature
Rated control supply voltage AC 50 Hz: 230 V
Rated control supply voltage AC 60 Hz: 230 V
Nominal current: 8 A
Number of contacts as change-over contact: 2
Number of contacts as normally open contact: 0
Number of contacts as normally closed contact: 0
Type of switch contact: Single contact
Type of electric connection: Other
Degree of protection (IP): IP20
With detachable clamps: No
Complete with socket: No
Height: 25 mm
Width: 12.4 mm
Depth: 29 mm
With forced-guided contacts: No
Drive, switching attitude: Mono stable
Drive, polarization: Polarity free
Voltage type for actuating: AC
REACH Date: 2021-06-17
REACH Information obligation: No
