Schneider Electric

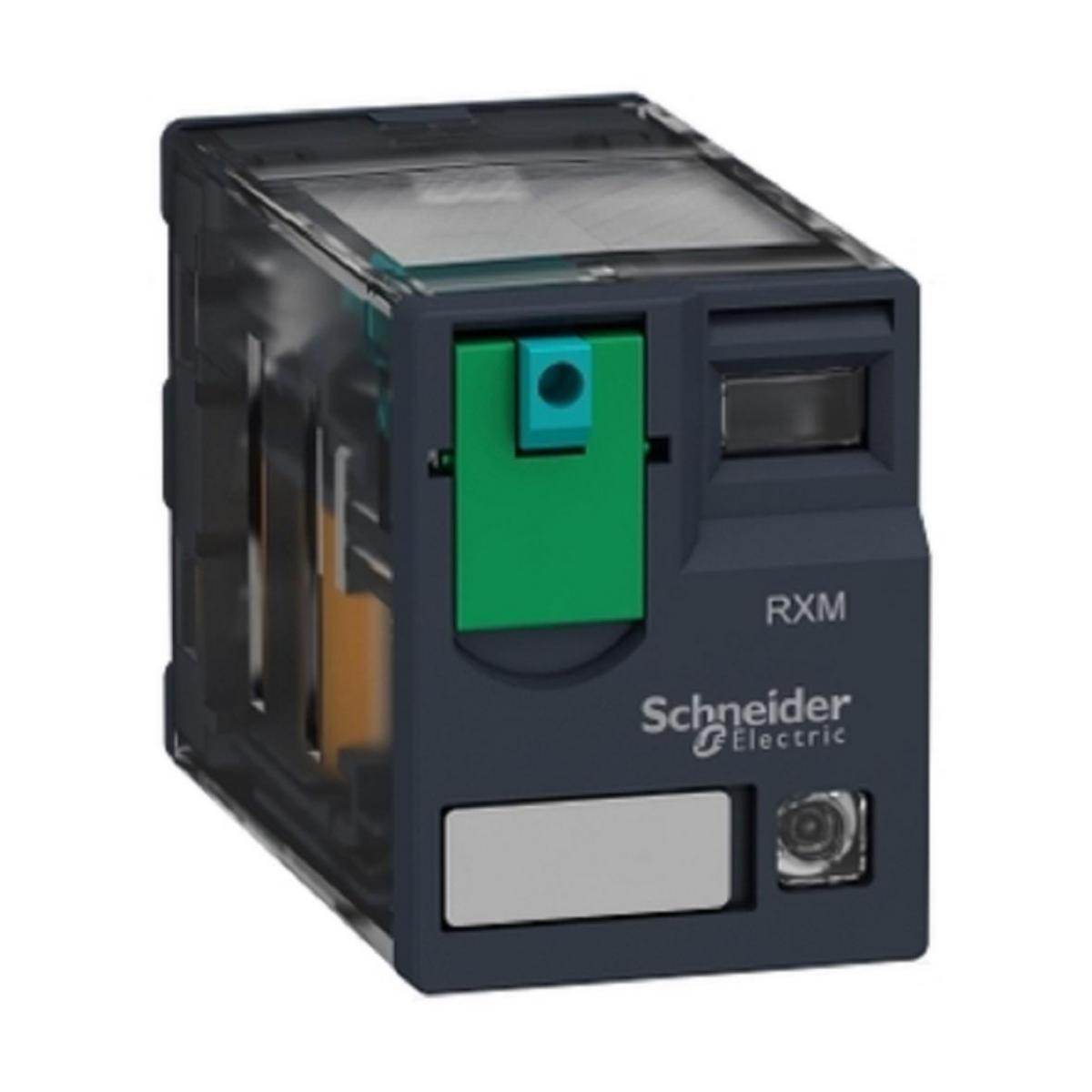

Miniature relay type RXM 4-pole
MIN.RELAY 4 CO W. LED 24 V DC RXM4AB2BD
Article number: Suppl. article no:
4027798
RXM4AB2BD
to see price and stock
A series of industrial miniature relays with two, three or four changeover contacts. Standard relay with long service life. Low level relay with Gold contact. Test option makes commissioning easier - test button with locking arm.
- Article number: 4027798
- Suppl. article no: RXM4AB2BD
- Ean no: 3389119403818
- Material class QP400B
Technical data
- Packagin Size: 1 ST/10 ST/240 ST/3840 ST
- Type: RXM4AB2BD
- Rated control supply voltage DC: 24 V
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
- Nominal current: 6 A
- Number of contacts as change-over contact: 4
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Type of switch contact: Other
- Type of electric connection: Plug-in connection
- With LED indication: Yes
- Degree of protection (IP): IP40
- With detachable clamps: No
- Complete with socket: No
- Height: 27 mm
- Width: 21 mm
- Depth: 55 mm
- With forced-guided contacts: No
- Drive, switching attitude: Mono stable
- Drive, polarization: Polarity free
- Voltage type for actuating: DC
- Material contact: Other
- Material of contact insert: Other
- Material of contact surface: Other
- REACH Date: 2022-07-20
- Indication: YES
- LED-indication: Yes
- REACH Information obligation: No
