Schneider Electric

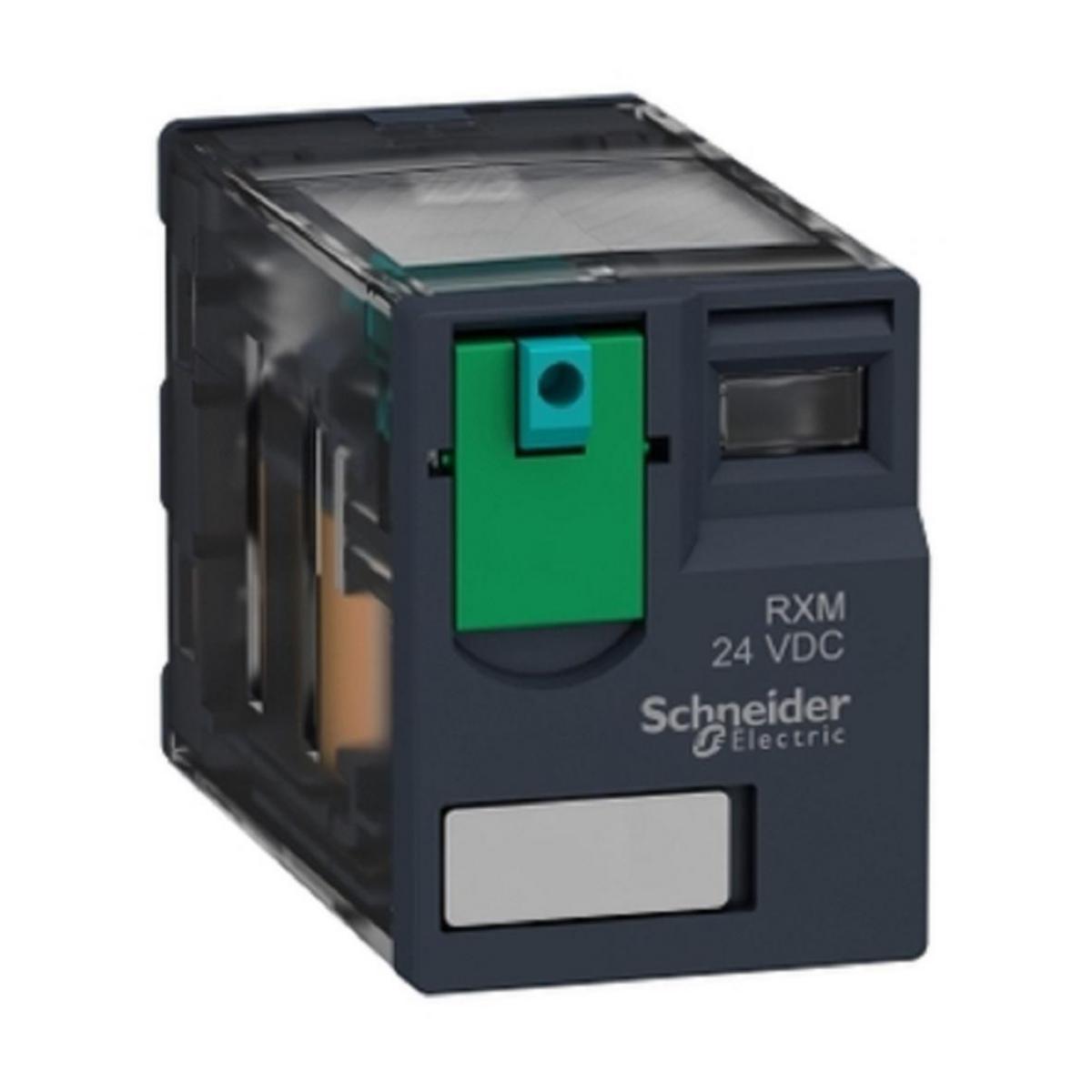

Miniature relay type RXM 2-pole
MINIATURE RELAY 2 CO 24 V DC RXM2AB1BD
Article number: Suppl. article no:
4027768
RXM2AB1BD
to see price and stock
A series of miniature relays with two, three or four switching contacts. Standard relay with long life. Test option provides easier commissioning - test button with the locking arm.
- Article number: 4027768
- Suppl. article no: RXM2AB1BD
- Ean no: 3389119403399
- Material class QP400B
Technical data
- Packagin Size: 1 ST/10 ST
- Type: RXM2AB1BD
- Design: Miniature
- Rated control supply voltage DC: 24 V
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
- Nominal current: 12 A
- Number of contacts as change-over contact: 2
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Type of switch contact: Other
- Type of electric connection: Plug-in connection
- With LED indication: No
- Degree of protection (IP): IP40
- With detachable clamps: No
- Complete with socket: No
- Height: 27 mm
- Width: 21 mm
- Depth: 55 mm
- With forced-guided contacts: No
- Drive, switching attitude: Mono stable
- Drive, polarization: Polarity free
- Voltage type for actuating: DC
- Material contact: Other
- Material of contact insert: Other
- Material of contact surface: Other
- REACH Date: 2022-07-20
- REACH Information obligation: No
