Finder
Interface relay type 3851 6.2 mm
INTERFACE RELAY 38.61.7.024.4050
Article number: Suppl. article no:
4007537
386170244050
to see price and stock

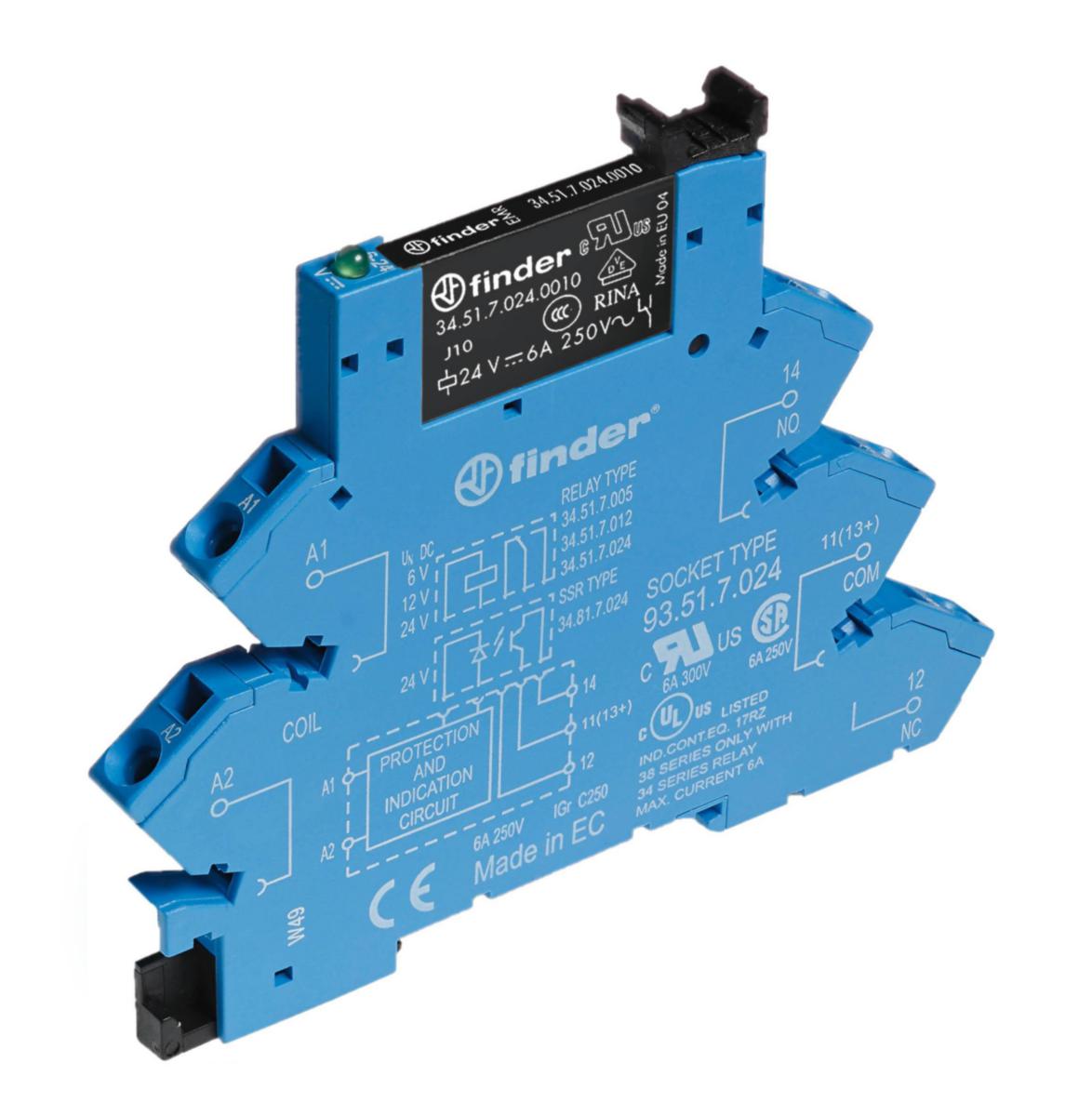

Interface relay with interchangeable relay module for mounting on 35 mm DIN rail. Comes with 1 pc changeover contact 6 A, 250 V, light diode indication (LED) and transient protection. Low control power (DC 0, 170W) insulation voltage coil contact group 4000 VAC. Extremely high packing density as the width of the interface relay is 6.2 mm. CE approved.
- Article number: 4007537
- Suppl. article no: 386170244050
- Ean no: 8012823292717
- Material class QP433B
Technical data
- Packagin Size: 10 ST
- Rated control supply voltage DC: 24 V
- Nominal current: 6 A
- Number of contacts as change-over contact: 1
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Type of switch contact: Single contact
- Type of electric connection: Spring clamp connection
- Degree of protection (IP): IP20
- With detachable clamps: No
- Complete with socket: Yes
- Height: 93.6 mm
- Width: 6.2 mm
- Depth: 76 mm
- With forced-guided contacts: No
- Drive, switching attitude: Mono stable
- Drive, polarization: Polarized
- Voltage type for actuating: DC
- REACH Date: 2021-06-18
- REACH Information obligation: No
