Schneider Electric

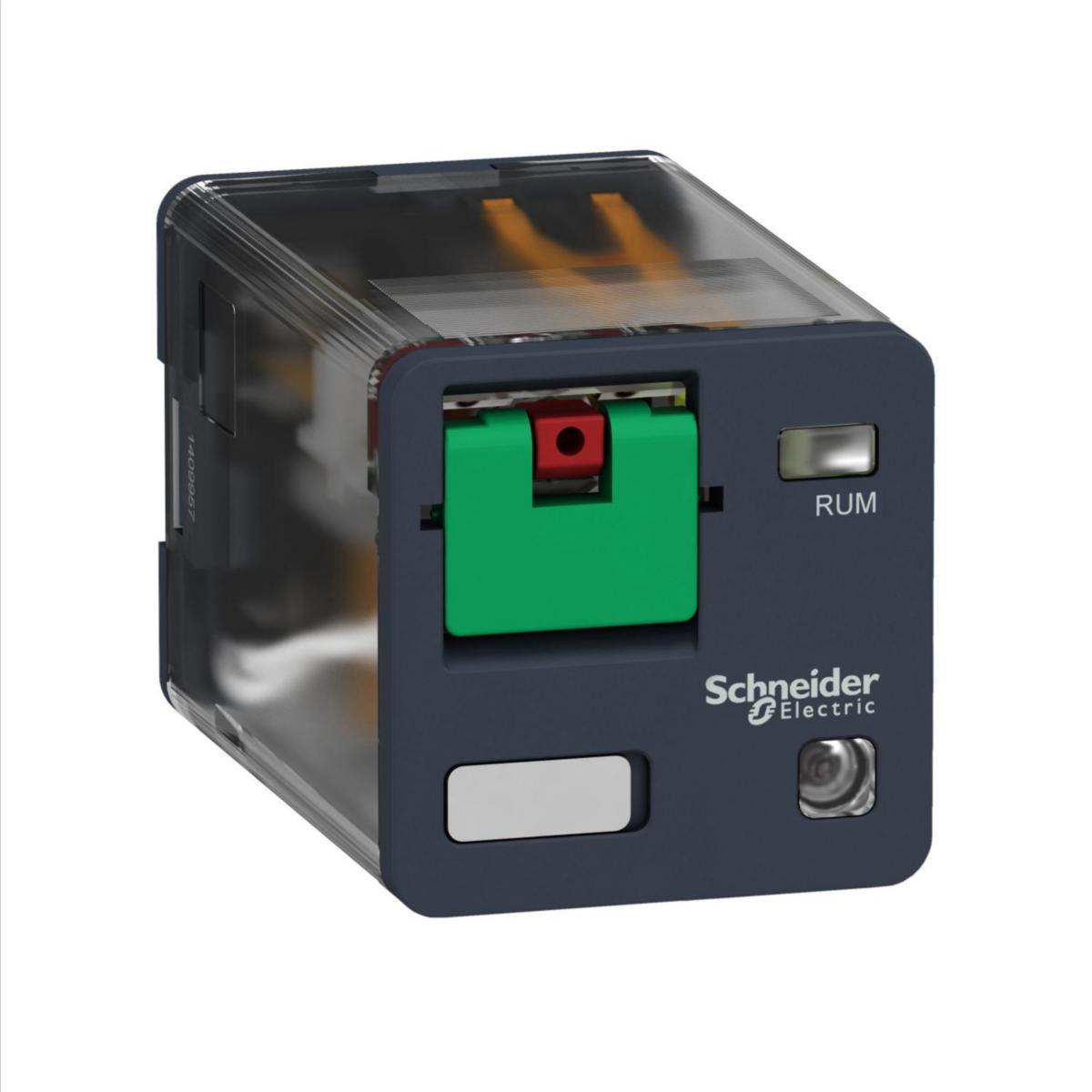

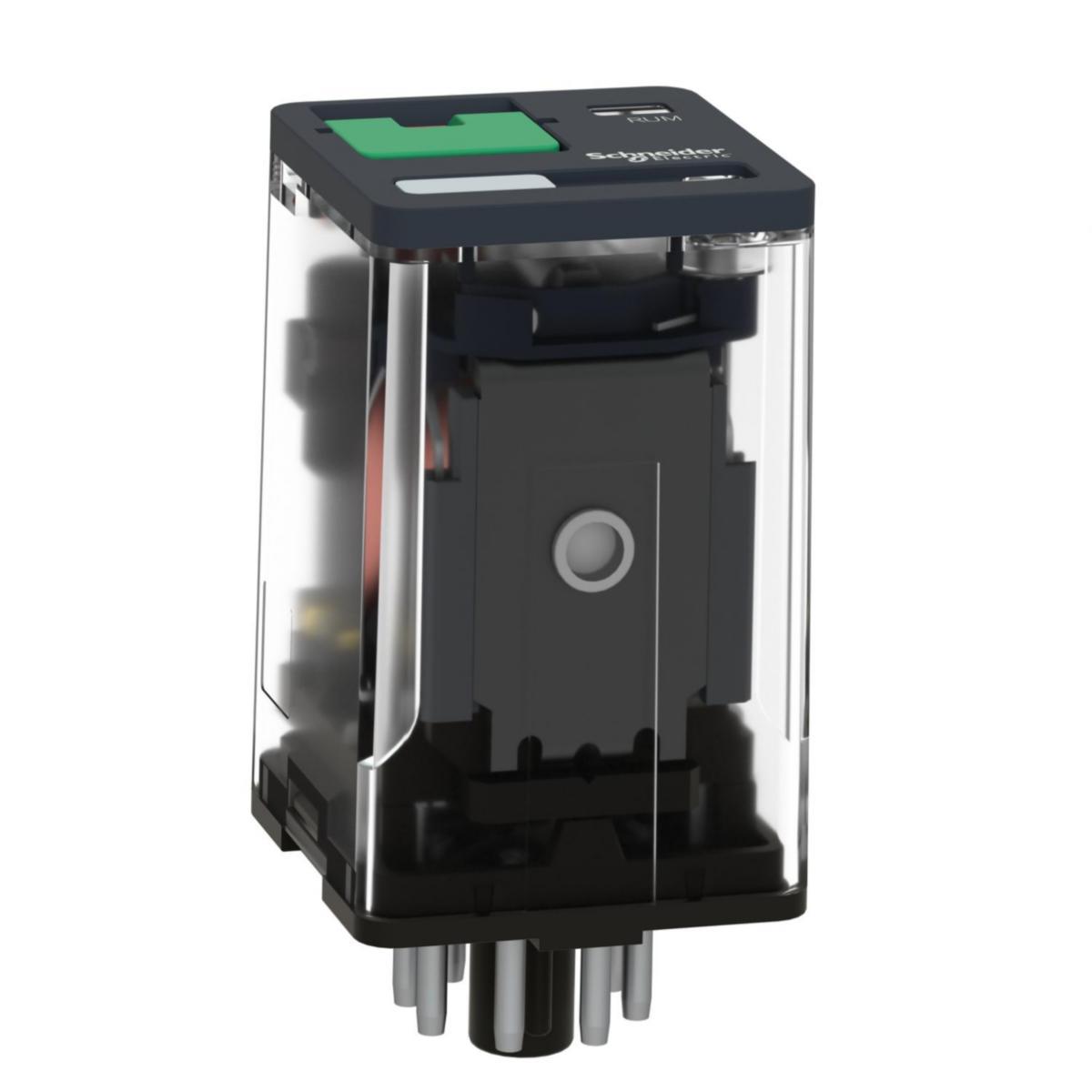

Universal relay type RUMC3
3CO 10A RELAY CYLIND RUMC32B7
Article number: Suppl. article no:
4001444
RUMC32B7
to see price and stock
A series of industrial universal relays three switching contacts. Standard relay with long life. Test option provides easier commissioning - test button with the locking arm.
- Article number: 4001444
- Suppl. article no: RUMC32B7
- Ean no: 3606480626920
- Replaces art.nbr: 4027746
- Material class QP400B
Technical data
- Packagin Size: 1 ST/10 ST/60 ST
- Type: RUMC32B7
- Design: Universal
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Nominal current: 10 A
- Number of contacts as change-over contact: 3
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 0
- Type of switch contact: Single contact
- Type of electric connection: Plug-in connection
- With LED indication: Yes
- Degree of protection (IP): IP40
- With detachable clamps: No
- Complete with socket: No
- Height: 35.4 mm
- Width: 35 mm
- Depth: 56 mm
- With forced-guided contacts: Yes
- Drive, switching attitude: Mono stable
- Drive, polarization: Polarized
- Voltage type for actuating: AC
- Material contact: Other
- Material of contact insert: Other
- Material of contact surface: Other
- Mechanical indication: Yes
- REACH Date: 2022-07-20
- LED-indication: Yes
- REACH Information obligation: No
