IFM

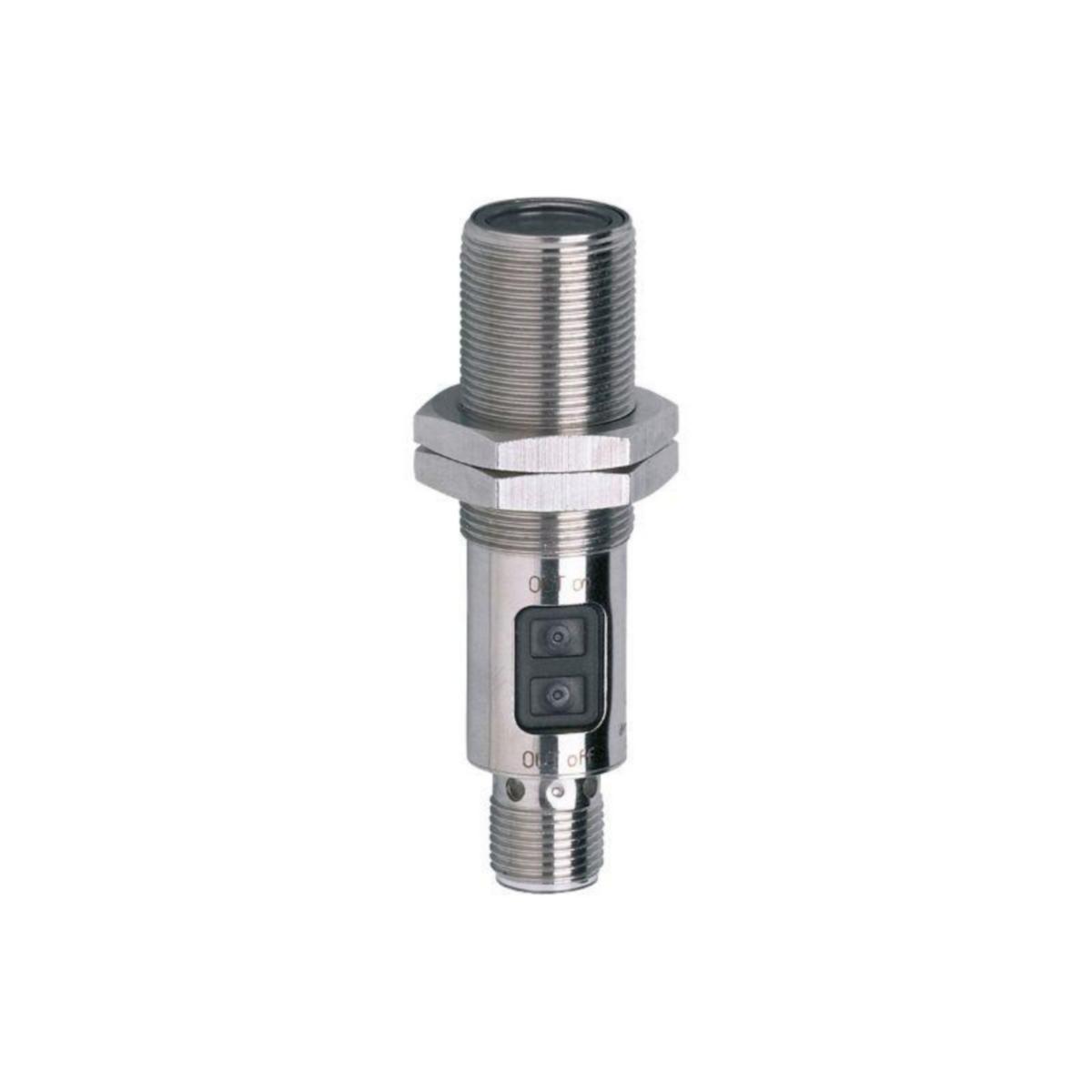

Photocell M18 OGT500
Photocell OGT500
Article number: Suppl. article no:
3854225
OGT500
to see price and stock
• Robust stainless steel housing for use in harsh industrial environments
• Very long range
• Intuitive sensitivity setting via push button
• Large range of fastening components for quick and easy installation
• Excellent price / performance ratio
• Very long range
• Intuitive sensitivity setting via push button
• Large range of fastening components for quick and easy installation
• Excellent price / performance ratio
- Article number: 3854225
- Suppl. article no: OGT500
- Ean no: 4021179173254
- Material class QP062B
Technical data
- Housing material: Metal
- Length of sensor: 72 mm
- Diameter sensor: 18 mm
- Type of switch function: Programmable/configurable
- Type of switching output: PNP
- Type of electric connection: Connector M12
- Construction type housing: Cylinder, screw-thread
- Max. switching distance: 800 mm
- Rated control supply voltage DC: 10-36 V
- Switching frequency: 2000 Hz
- Voltage type: DC
- Wavelength of the sensor: 624 nm
