Sick
Photocell W24-2

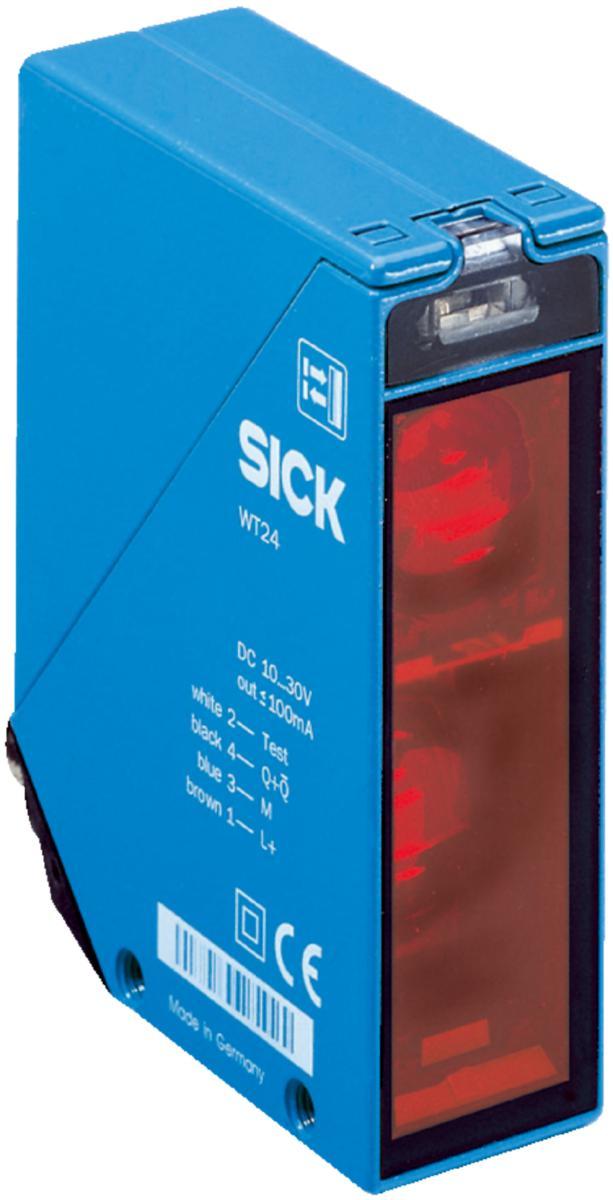

PHOTOELECTRIC PROXIMITY SENSOR WT24-2B410
Article number: Suppl. article no:
3840383E
1016933
to see price and stock
Direct sensing photocell, Background dimming
- Article number: 3840383E
- Suppl. article no: 1016933
- Material class QP028B
Technical data
- Housing material: Metal
- Width sensor: 27 mm
- Height of sensor: 87.5 mm
- Length of sensor: 65 mm
- Type of switch function: Programmable/configurable
- Type of switching output: PNP/NPN
- Type of electric connection: Connector M12
- Type of light: Infrared light
- Setting procedure: Manual adjustment
- Adjustment range: 100-2500 mm
- Construction type housing: Cuboid
- Material of optical surface: Plastic
- Max. switching distance: 2500 mm
- Max. output current: 100 mA
- Min. reflector distance: 100 mm
- Rated control supply voltage DC: 10-30 V
- Ambient temperature: -40-+60 °C
- Switching frequency: 1000 Hz
- Voltage type: DC
- REACH Date: 2023-03-15
- REACH Information obligation: No
