Carlo Gavazzi

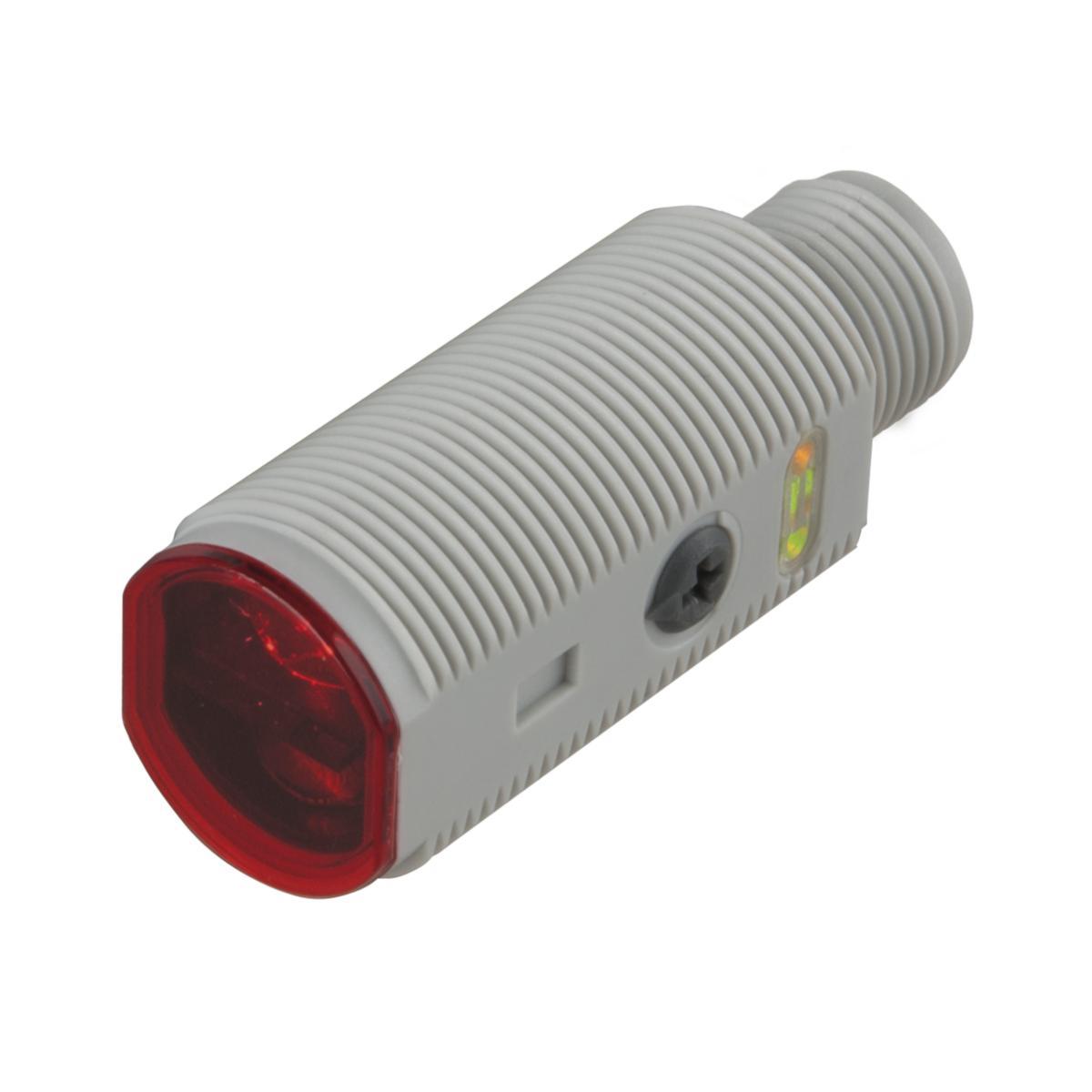

Photocell M18 PA18CAB
PHOTO M18 BGS PNP NO+NC. PLUG PA18CAB20PAM1SA
Article number: Suppl. article no:
3830184
PA18CAB20PAM1SA
to see price and stock
Photocell M18
- Article number: 3830184
- Suppl. article no: PA18CAB20PAM1SA
- Ean no: 5709870384139
- Material class QP029B
Technical data
- Rated switching distance: 200 mm
- Housing material: Plastic
- Width sensor: 0 mm
- Height of sensor: 0 mm
- Length of sensor: 43.8 mm
- Diameter sensor: 18 mm
- Type of switch function: Programmable/configurable
- Type of switching output: PNP
- Type of electric connection: Connector M12
- Type of light: Polarity free red light
- Analogue output -10 V ... +10 V: No
- Analogue output 0 V ... 10 V: No
- Analogue output 0 mA ... 20 mA: No
- Analogue output 4 mA ... 20 mA: No
- Number of semiconductor outputs with signalling function: 0
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 1
- Number of protected contact energized outputs: 0
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Pre failure notice: No
- Setting procedure: Manual adjustment
- Adjustment range: 10-200 mm
- Degree of protection (IP): IP67K
- Construction type housing: Cylinder, screw-thread
- Sensing mode: Light-/dark switching
- Laser protection class: None
- Suitable for safety functions: No
- Material of cable sheath: Polyvinyl chloride (PVC)
- Material of optical surface: Plastic
- Max. switching distance: 200 mm
- Max. output current: 100 mA
- Max. output current at protected output: 100 mA
- With other analogue output: No
- With communication interface AS-Interface: No
- With communication interface analogue: No
- With communication interface CANOpen: No
- With communication interface DeviceNet: No
- With communication interface Ethernet: No
- With communication interface INTERBUS: No
- With communication interface PROFIBUS: No
- With communication interface RS-232: No
- With communication interface RS-422: No
- With communication interface RS-485: No
- With communication interface SSD: No
- With communication interface SSI: No
- With restart blockage: No
- With time function: No
- With monitoring function downstream switching devices: No
- Rated control supply voltage DC: 10-30 V
- Ambient temperature: -25-60 °C
- Switching frequency: 500 Hz
- Response time: 1 ms
- With reflector: No
- Voltage type: DC
- Triangulation: Background fade-out
- Wavelength of the sensor: 625 nm
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
