Telemecanique

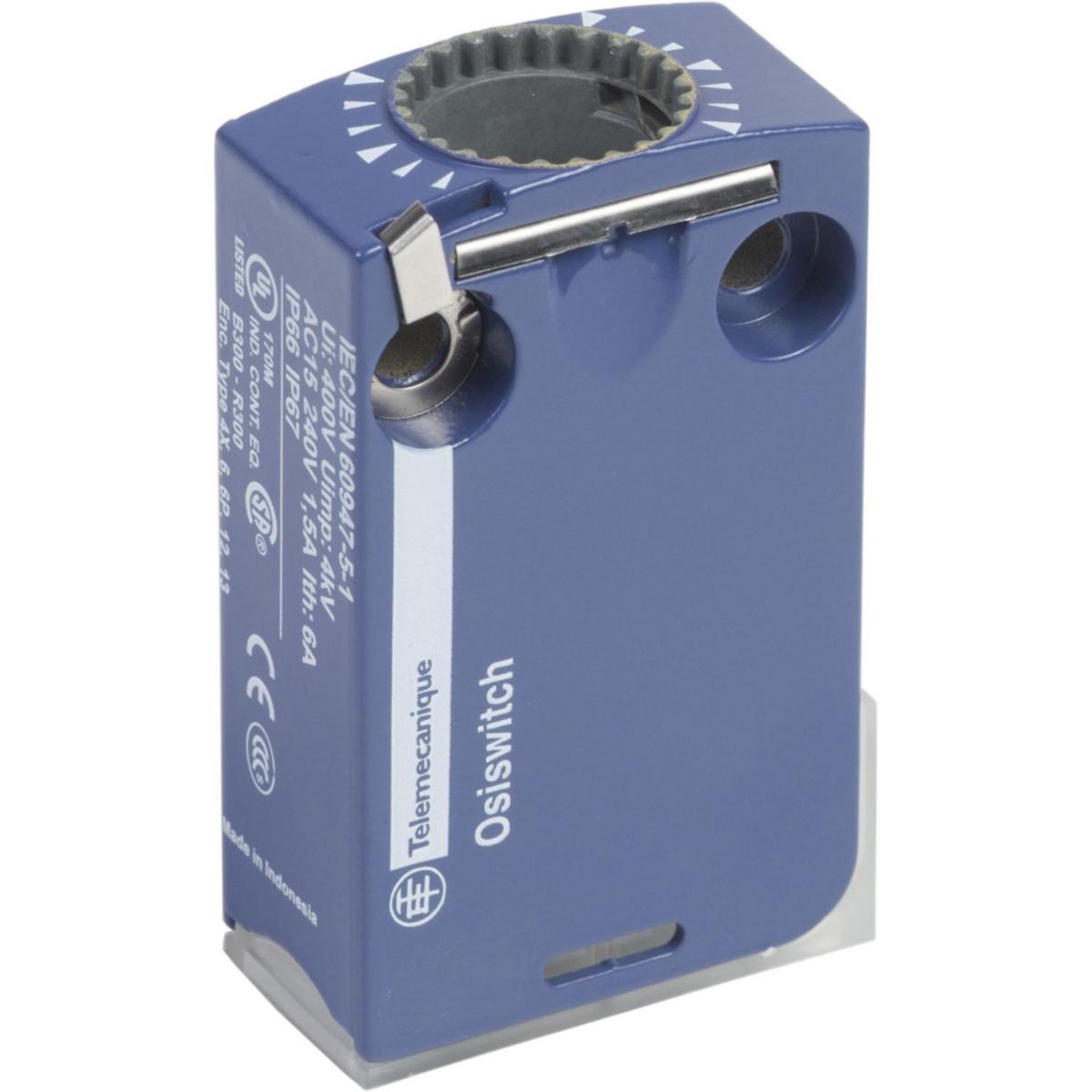

Limit switch ZCMD Osiconcept, separate parts
BODY 1NO1NC SA ZCMD21
Artikelnummer: Lev. artikelnr:
3818155
ZCMD21
för att se saldo och pris
Osiconcept, modularity for increased product availability. Products are interchangeable with each other, operating head, contact blocks and connections. Only one type of operating head for five different contact housing. 3D adjustable control head and control arms. Adjustment in 15 degree increments. 40% time saving on electrical connection. Easy selection of cable inputs, according to ISO, EN 50262.
Contact housing in metal 30 x 16 x 59 mm
Enclosure class IP66/67. Positive breaking contacts. Contact data: AC15 at Ue240V= 1,5A, DC13 at Ue250V= 0, 1A Snap-in mounting of the operating head.
Connector with cable for contact housing ZCMD. (Applies to item nos. 3818199-3818210).
Tiltable cable. (Applies to item nos. 3818199-3818210).
Contact housing in metal 30 x 16 x 59 mm
Enclosure class IP66/67. Positive breaking contacts. Contact data: AC15 at Ue240V= 1,5A, DC13 at Ue250V= 0, 1A Snap-in mounting of the operating head.
Connector with cable for contact housing ZCMD. (Applies to item nos. 3818199-3818210).
Tiltable cable. (Applies to item nos. 3818199-3818210).
- Article number: 3818155
- Suppl. article no: ZCMD21
- Ean no: 3389110299069
- Material class QP040B
Teknisk data
- Packagin Size: 1 ST/40 ST/44 ST
- Type: ZCMD21
- Design: Separate contact sensor
- Type of control element: None
- Switching function: Quick-break switch
- Alignment of the control element: Other
- Housing material: Metal
- Type of electric connection: Plug-in connection others
- Degree of protection (IP): IP66
- Number of contacts as normally open contact: 1
- Number of safety auxiliary contacts: 0
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 1
- Output electronic: No
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Coating housing: Other
- Construction type housing: Cuboid
- Suitable for safety functions: No
- With status indication: No
- Rated operation current Ie at AC-15, 24 V: 0 A
- Rated operation current Ie at DC-13, 24 V: 0 A
- Rated operation current Ie at AC-15, 230 V: 1.5 A
- Ambient temperature during operating: -25-70 °C
- Width sensor: 30 mm
- Diameter sensor: 0 mm
- Height of sensor: 50 mm
- Length of sensor: 16 mm
- Forced opening: Yes
- Type of interface: None
- Type of interface for safety communication: None
- Rated operation current Ie at AC-15, 125 V: 0 A
- Rated operation current Ie at DC-13, 125 V: 0 A
- Rated operation current Ie at DC-13, 230 V: 0.1 A
- Switching function latching: No
- REACH Date: 2023-03-20
- REACH contains candidate substances: 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane | 1,3-propanesultone 1,2-oxathiolane 2,2-dioxide
- Material: Metal
- REACH Information obligation: Yes
