Telemecanique

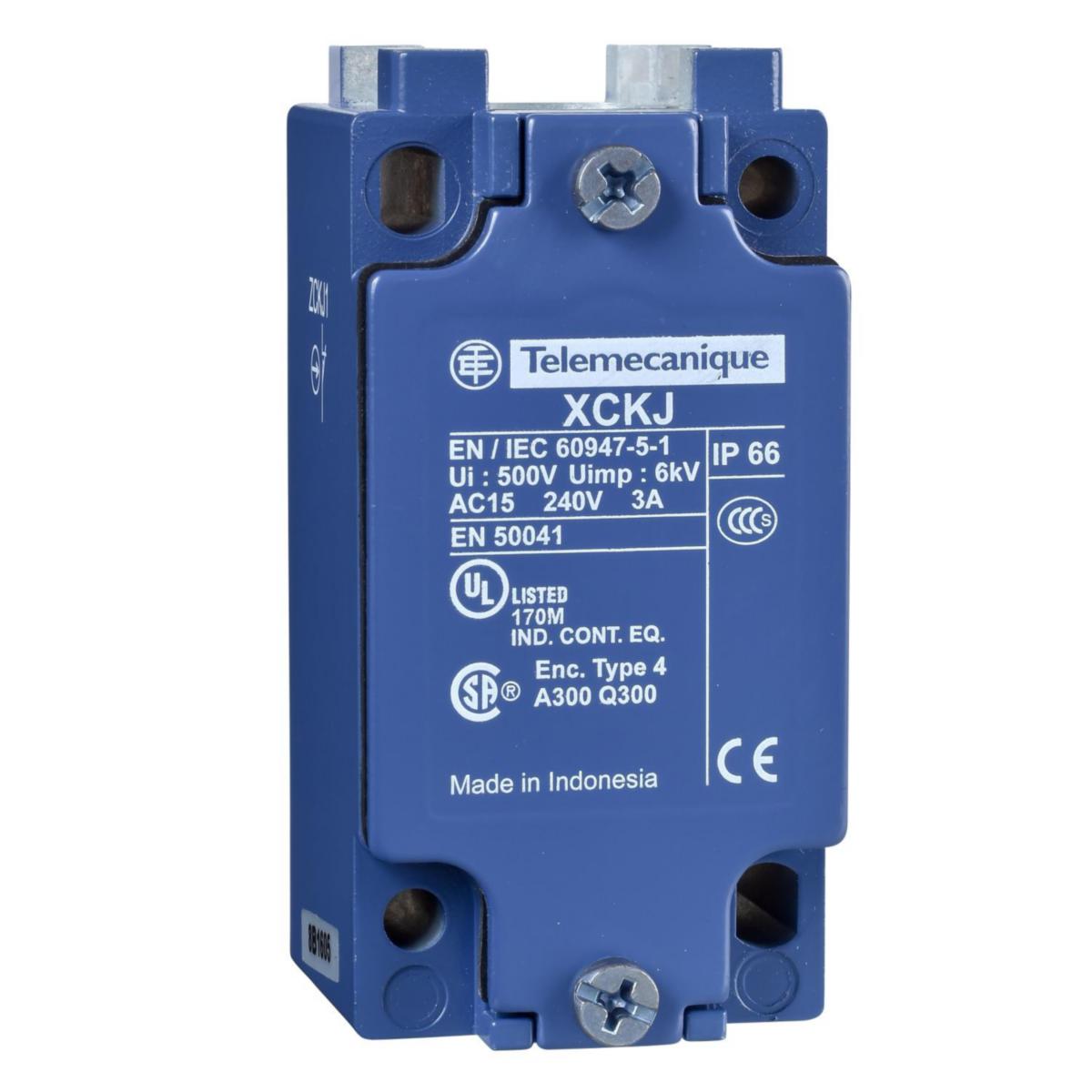

Electronics housing ZCKJ
LIMIT SWITCH BODY ZCKJ1
Article number: Suppl. article no:
3817610
ZCKJ1
to see price and stock
Supplemented with appropriate operating head
- Article number: 3817610
- Suppl. article no: ZCKJ1
- Ean no: 3389110646108
- Material class QP040B
Technical data
- Packagin Size: 1 ST/27 ST
- Type: ZCKJ1
- Design: Full housing
- Type of control element: None
- Switching function: Quick-break switch
- Alignment of the control element: Other
- Housing material: Metal
- Type of electric connection: Cable entry PG
- Degree of protection (IP): IP65
- Number of contacts as normally open contact: 1
- Number of safety auxiliary contacts: 0
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 1
- Output electronic: No
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Coating housing: Other
- Construction type housing: Cuboid
- Suitable for safety functions: No
- With status indication: No
- Rated operation current Ie at AC-15, 230 V: 3 A
- Ambient temperature during operating: -25-70 °C
- Width sensor: 40 mm
- Height of sensor: 81.5 mm
- Length of sensor: 44 mm
- Forced opening: Yes
- Type of interface: None
- Type of interface for safety communication: None
- Rated operation current Ie at DC-13, 230 V: 0.27 A
- Switching function latching: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
