Telemecanique

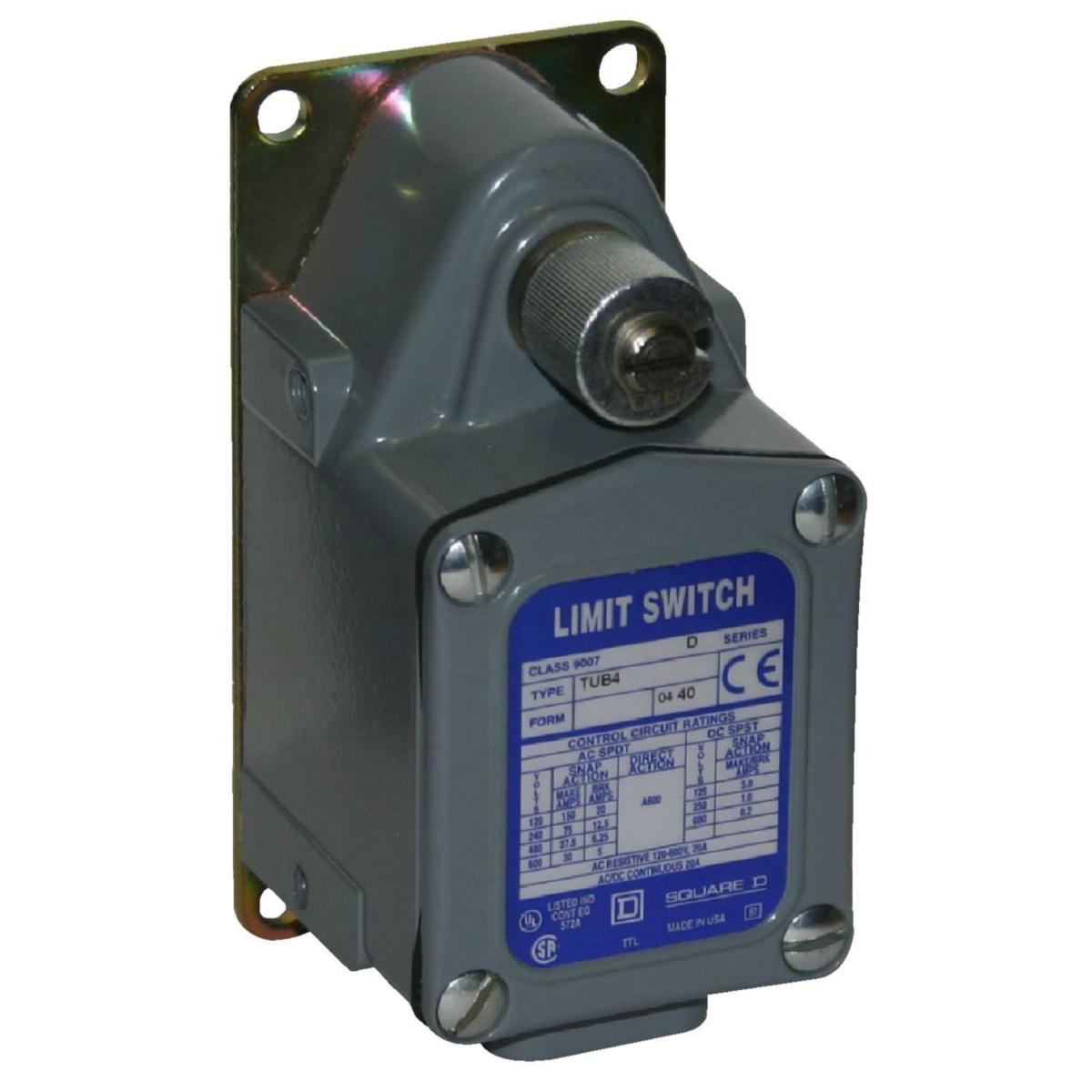

Limit switch 9007
LIMIT SWITCH 9007FT ZINC M20 9007TUB4M11
Artikelnummer: Lev. artikelnr:
3802051
9007TUB4M11
för att se saldo och pris
Limit switch 9007T / FT zinc 600VAC 12AMP T M20 snap action Rotating head -10 ... 185 ° F
- Article number: 3802051
- Suppl. article no: 9007TUB4M11
- Ean no: 0785901291275
- Material class QP040B
Teknisk data
- Type of control element: Rotary lever
- Switching function: Quick-break switch
- Alignment of the control element: Other
- Housing material: Metal
- Type of electric connection: Other
- Degree of protection (IP): IP67K
- Number of contacts as normally open contact: 0
- Number of safety auxiliary contacts: 0
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Output electronic: No
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Coating housing: Other
- Construction type housing: Cuboid
- Suitable for safety functions: No
- With status indication: No
- Rated operation current Ie at AC-15, 24 V: 0 A
- Rated operation current Ie at DC-13, 24 V: 0 A
- Rated operation current Ie at AC-15, 230 V: 12.5 A
- Ambient temperature during operating: -24-85 °C
- Width sensor: 57.15 mm
- Diameter sensor: 0 mm
- Height of sensor: 118.364 mm
- Length of sensor: 61.9 mm
- Forced opening: No
- Type of interface: None
- Type of interface for safety communication: None
- Rated operation current Ie at AC-15, 125 V: 20 A
- Rated operation current Ie at DC-13, 125 V: 5 A
- Rated operation current Ie at DC-13, 230 V: 1 A
- Switching function latching: No
- Degree of protection (NEMA): Other
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
