Telemecanique

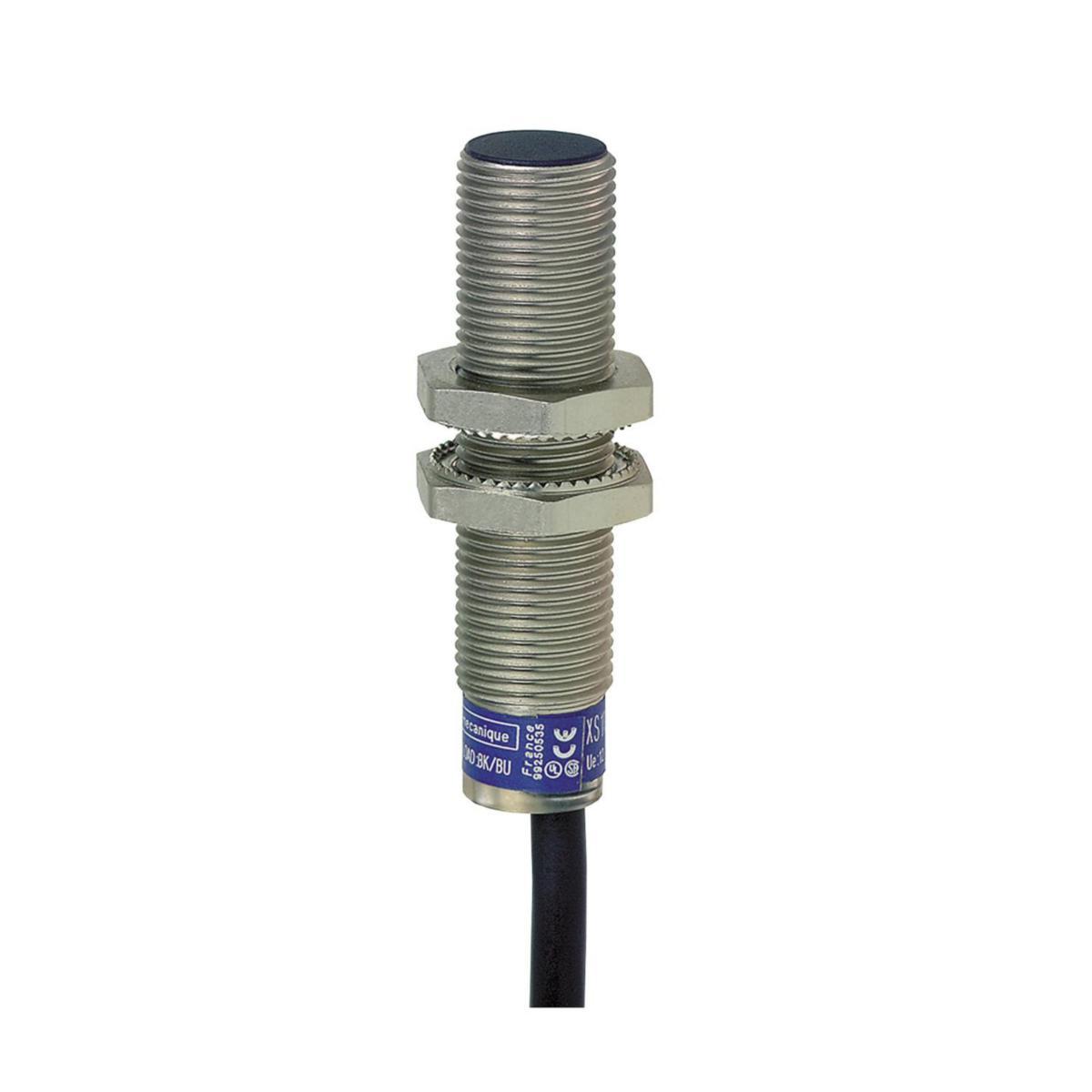

Inductive sensor XS6 long Osisense DC supply
DDPI M12 SN=4MM NO PNP UF 10-5 XS612B1PAL2
Article number: Suppl. article no:
3849556
XS612B1PAL2
to see price and stock
The most complete range of inductive transducers from short to long cylindrical models, and from miniature to 80x80 block models.
Many different materials: metal, plastic and stainless steel 316L (on request).
Plastic or stainless steel housing IP69K, high resistance to chemical substances.
Many functions: from standard PNP, NPN to programmable PNP/NPN, NO/NC, and precise detection of object position via teach of assembly environment.
Special models: custom cable lengths and specific connectors on request.
Large selection of mounting brackets for cylindrical & block models.
Replacement of sensors without disassembling the mounting bracket. With Snap connection (Snap-C).
Enclosure: Metal or Plastic
Protection class IP67, IP69K on type XS2..AA...., IP 68 on type XS6..B4.... with built-in cable
Temperature range: -25 to +70ºC, -25 to +85ºC on type XS2..AA....
Supply: 3-wire 10-58VDC
Cable connection, type designation ends in: L2 = 2m built-in cable, M12 = M12 quick connection, M8 = M8 quick connection
Many different materials: metal, plastic and stainless steel 316L (on request).
Plastic or stainless steel housing IP69K, high resistance to chemical substances.
Many functions: from standard PNP, NPN to programmable PNP/NPN, NO/NC, and precise detection of object position via teach of assembly environment.
Special models: custom cable lengths and specific connectors on request.
Large selection of mounting brackets for cylindrical & block models.
Replacement of sensors without disassembling the mounting bracket. With Snap connection (Snap-C).
Enclosure: Metal or Plastic
Protection class IP67, IP69K on type XS2..AA...., IP 68 on type XS6..B4.... with built-in cable
Temperature range: -25 to +70ºC, -25 to +85ºC on type XS2..AA....
Supply: 3-wire 10-58VDC
Cable connection, type designation ends in: L2 = 2m built-in cable, M12 = M12 quick connection, M8 = M8 quick connection
- Article number: 3849556
- Suppl. article no: XS612B1PAL2
- Ean no: 3389110145731
- Material class QP030B
Technical data
- Packagin Size: 1 ST/44 ST
- Type: XS612B1PAL2
- Design: Shielded
- Supply voltage: 12-48 V
- Switching distance: 4 mm
- Type of switching output: PNP/PNP
- Type of switch function: Normally open contact
- Diameter sensor: 12 mm
- Length of sensor: 50 mm
- Housing material: Metal
- Type of electric connection: Cable radial
- Coating housing: Nickel-plated
- Max. output current at protected output: 200 mA
- Switching frequency: 2500 Hz
- Construction type housing: Cylinder, screw-thread
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Interference resistance to magnetic fields: Immune against magnetic DC- and AC-field
- Type of interface: None
- Type of interface for safety communication: None
- Type of actuation: Metallic Target
- Rated control supply voltage DC: 12-48 V
- Number of semiconductor outputs with signalling function: 1
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Voltage type: AC/DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: No
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Concise
- Performance level according to EN ISO 13849-1: None
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
