Telemecanique

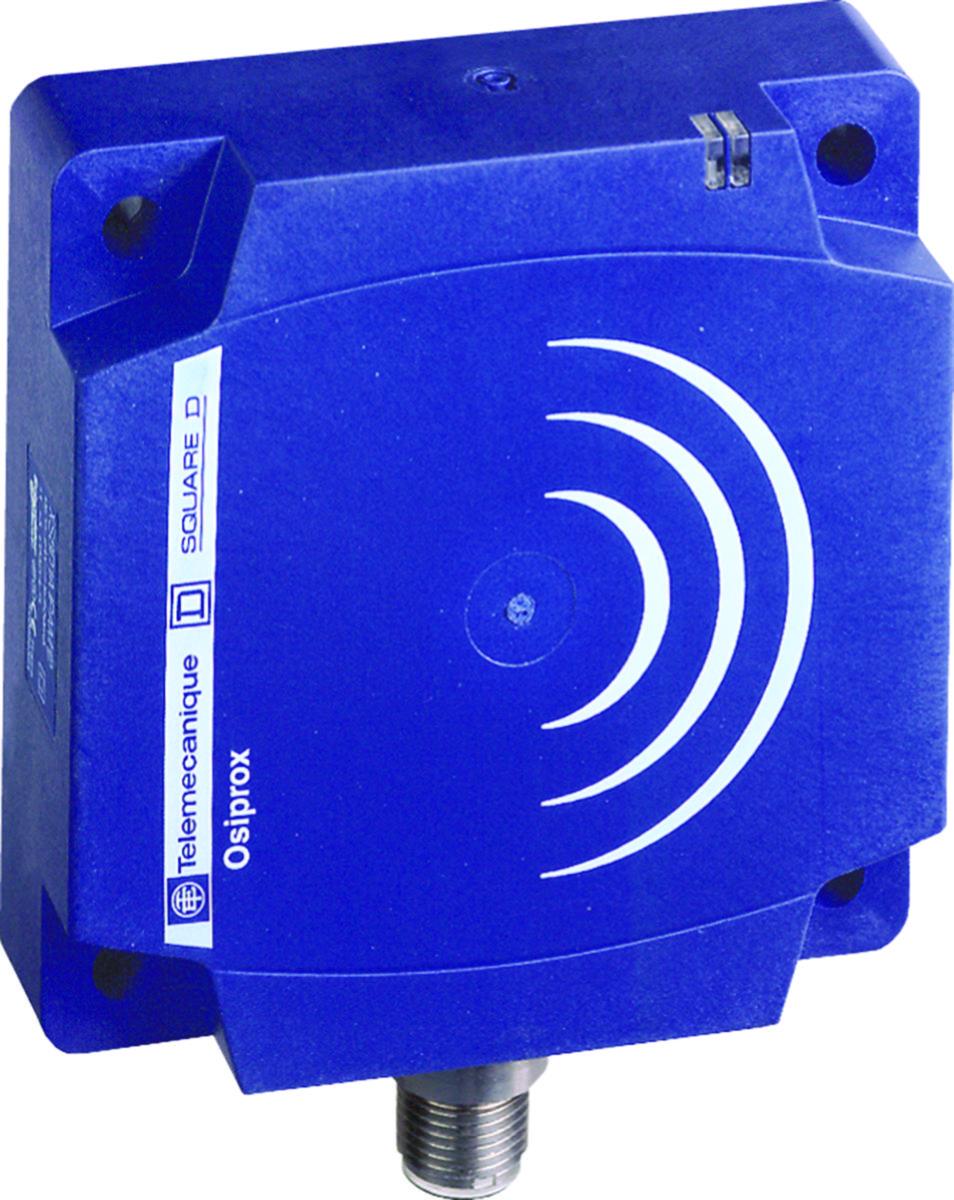

Inductive sensor of block model Osisense DC-power supply
IND.SEN.FORMD SN=60MM NO24V XS8D1A1PAM12
Article number: Suppl. article no:
3849528
XS8D1A1PAM12
to see price and stock
The most complete series of inductive sensors
Large variety of formats: from short to long cylindrical models, and from miniature to 80x80 block models.
Many different materials: metal, plastic and stainless steel 316L (on request).
Resistant in demanding environments: Plastic or stainless steel enclosure IP69K, high resistance to chemical substances. (Food Approvals)
many features:from standard PNP, NPN to programmable PNP/NPN, NO/NC, and precise detection of object position via the teach of compositing environment.
Extended voltage limits: up to 10..58 VDC and 20.264 VAC.
Temperature range:-25..+70°C as standard. -40°C and + 85°C available upon request.
Special models: custom cable lengths and specific connectors on request.
Simple assembly and cabling:
Easy maintenance & replacement, short downtime: large selection of mounting brackets for cylindrical & amp; block models. Replacement of sensor without having to disassemble the mounting holder.
Quick cabling without tools, with Snap-connection (Snap-C).
Casing: Plastic (see table) protection class: IP67T Temperature area: -25 to +70°C Feed: 3-wire 10-36VDCK cable connection, type designation ends with:L2 = 2 m integrated cable, M12 = M12 quick connection, M8 = M8 quick connection. *Installation: Programmable Shielded/Unshielded
Large variety of formats: from short to long cylindrical models, and from miniature to 80x80 block models.
Many different materials: metal, plastic and stainless steel 316L (on request).
Resistant in demanding environments: Plastic or stainless steel enclosure IP69K, high resistance to chemical substances. (Food Approvals)
many features:from standard PNP, NPN to programmable PNP/NPN, NO/NC, and precise detection of object position via the teach of compositing environment.
Extended voltage limits: up to 10..58 VDC and 20.264 VAC.
Temperature range:-25..+70°C as standard. -40°C and + 85°C available upon request.
Special models: custom cable lengths and specific connectors on request.
Simple assembly and cabling:
Easy maintenance & replacement, short downtime: large selection of mounting brackets for cylindrical & amp; block models. Replacement of sensor without having to disassemble the mounting holder.
Quick cabling without tools, with Snap-connection (Snap-C).
Casing: Plastic (see table) protection class: IP67T Temperature area: -25 to +70°C Feed: 3-wire 10-36VDCK cable connection, type designation ends with:L2 = 2 m integrated cable, M12 = M12 quick connection, M8 = M8 quick connection. *Installation: Programmable Shielded/Unshielded
- Article number: 3849528
- Suppl. article no: XS8D1A1PAM12
- Ean no: 3389110142815
- Material class QP030B
Technical data
- Packagin Size: 1 ST/10 ST/22 ST
- Type: XS8D1A1PAM12
- Supply voltage: 12-24 V
- Switching distance: 60 mm
- Type of switching output: PNP/PNP
- Type of switch function: Normally open contact
- Diameter sensor: 0 mm
- Length of sensor: 26 mm
- Width sensor: 80 mm
- Height of sensor: 80 mm
- Housing material: Plastic
- Type of electric connection: Connector M12
- Coating housing: Other
- Max. output current at protected output: 200 mA
- Switching frequency: 150 Hz
- Construction type housing: Special construction
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Interference resistance to magnetic fields: Immune against magnetic DC- and AC-field
- Type of interface: None
- Type of interface for safety communication: None
- Type of actuation: Metallic Target
- Rated control supply voltage DC: 12-24 V
- Number of semiconductor outputs with signalling function: 1
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Voltage type: AC/DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: No
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Not flat
- Performance level according to EN ISO 13849-1: None
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- Dimensions: 80x80x26
- Sensor type: *Sk./Osk.
- REACH Information obligation: Yes
