Carlo Gavazzi

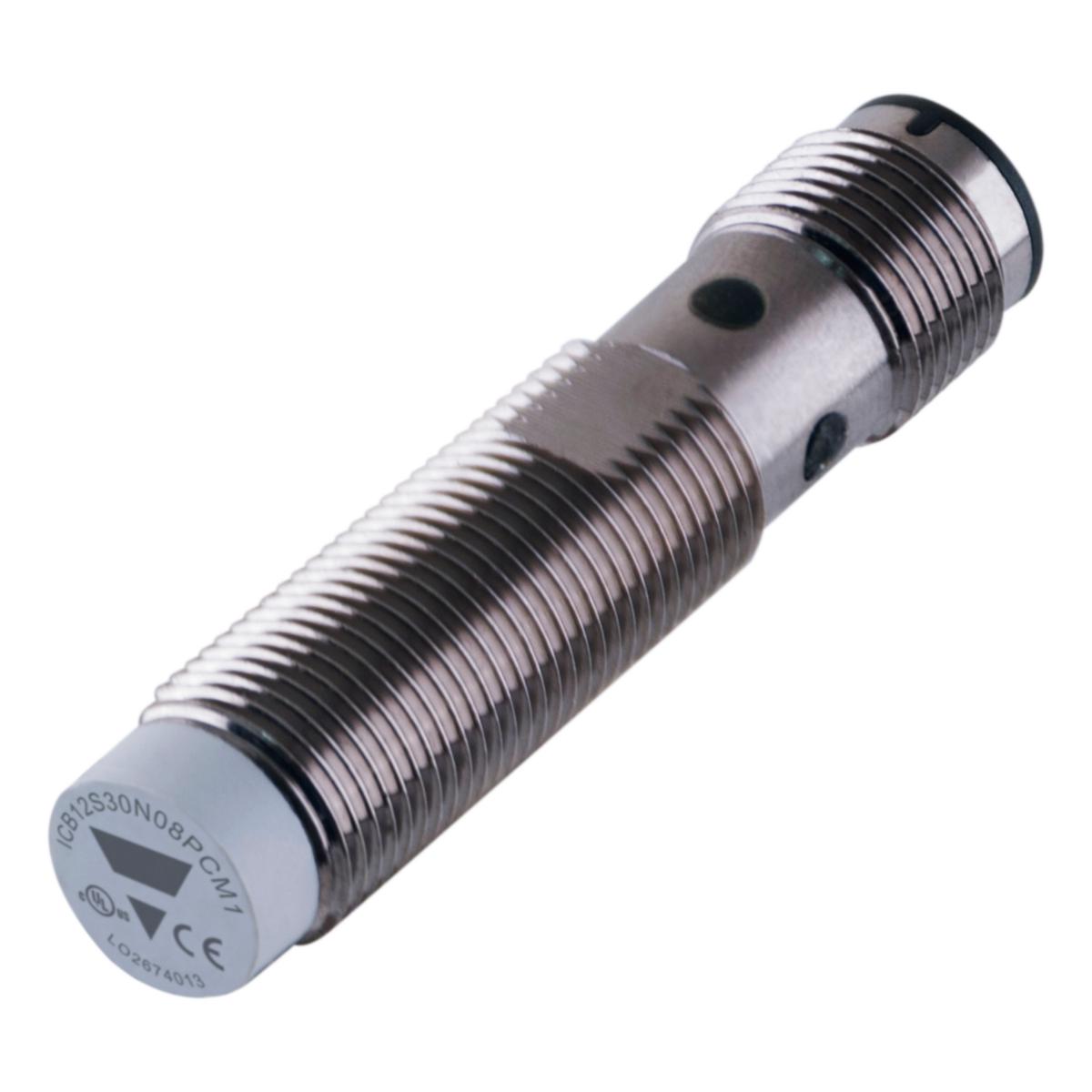

Inductive sensor ICB
IND.SENSOR M12 PLG PNPNO NO-FL
Article number: Suppl. article no:
3835163
ICB12S30N08POM1
to see price and stock
Inductive sensor ICB
- Article number: 3835163
- Suppl. article no: ICB12S30N08POM1
- Ean no: 8030956073195
- Material class QP0290
Technical data
- Type: ICB12S30N08POM1
- Supply voltage: 10-36 V
- Switching distance: 8 mm
- Type of switching output: PNP
- Type of switch function: Normally open contact
- Diameter sensor: 12 mm
- Length of sensor: 54.2 mm
- Width sensor: 0 mm
- Height of sensor: 0 mm
- Housing material: Metal
- Type of electric connection: Connector M12
- Coating housing: Nickel-plated
- Max. output current at protected output: 200 mA
- Switching frequency: 2000 Hz
- Construction type housing: Cylinder, screw-thread
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Interference resistance to magnetic fields: Immune against magnetic DC- and AC-field
- Type of interface: None
- Type of interface for safety communication: None
- Type of actuation: Metallic Target
- Rated control supply voltage DC: 10-36 V
- Number of semiconductor outputs with signalling function: 1
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Voltage type: DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: No
- Degree of protection (NEMA): Other
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Not flat
- Performance level according to EN ISO 13849-1: None
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
- REACH Date: 2024-04-09
- REACH Information obligation: No
