Carlo Gavazzi

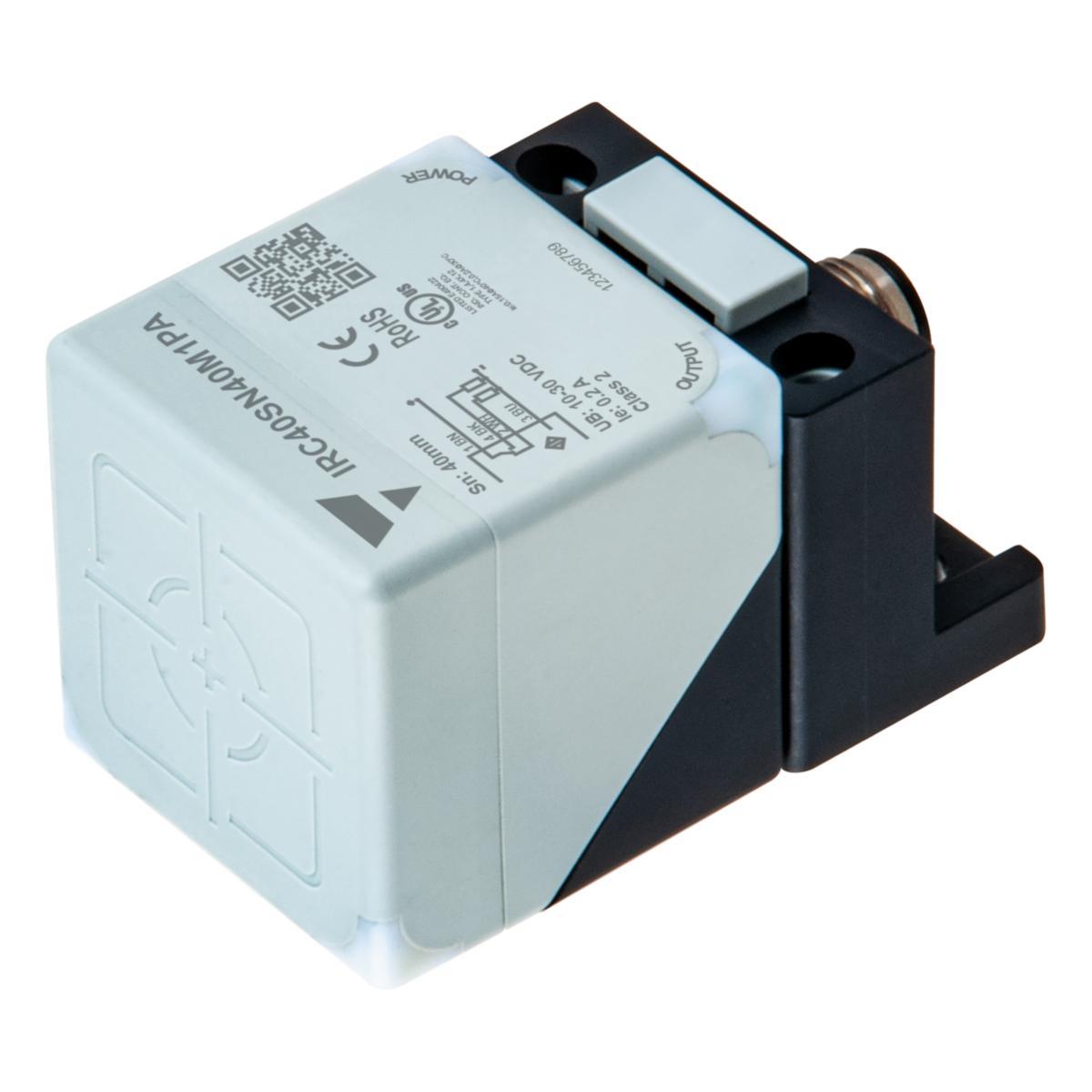

Inductive sensor IRC
IND.SENS.IRC40 PLG PNP NON-FL.
Article number: Suppl. article no:
3835154
IRC40SN40M1PA
to see price and stock
Inductive sensor IRC
- Article number: 3835154
- Suppl. article no: IRC40SN40M1PA
- Ean no: 5709870406657
- Material class QP0290
Technical data
- Type: IRC40SN40M1PA
- Supply voltage: 10-30 V
- Switching distance: 40 mm
- Type of switching output: PNP
- Type of switch function: Change-over contact
- Diameter sensor: 0 mm
- Length of sensor: 66 mm
- Width sensor: 40 mm
- Height of sensor: 40 mm
- Housing material: Plastic
- Type of electric connection: Connector M12
- Coating housing: Other
- Max. output current at protected output: 200 mA
- Switching frequency: 200 Hz
- Construction type housing: Cuboid
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Type of interface: None
- Type of interface for safety communication: None
- Type of actuation: Metallic Target
- Rated control supply voltage DC: 10-30 V
- Number of semiconductor outputs with signalling function: 0
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 1
- Number of protected contact energized outputs: 0
- Voltage type: DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: No
- Degree of protection (NEMA): Other
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Not flat
- Performance level according to EN ISO 13849-1: None
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
- REACH Date: 2024-04-09
- REACH Information obligation: No
