Carlo Gavazzi

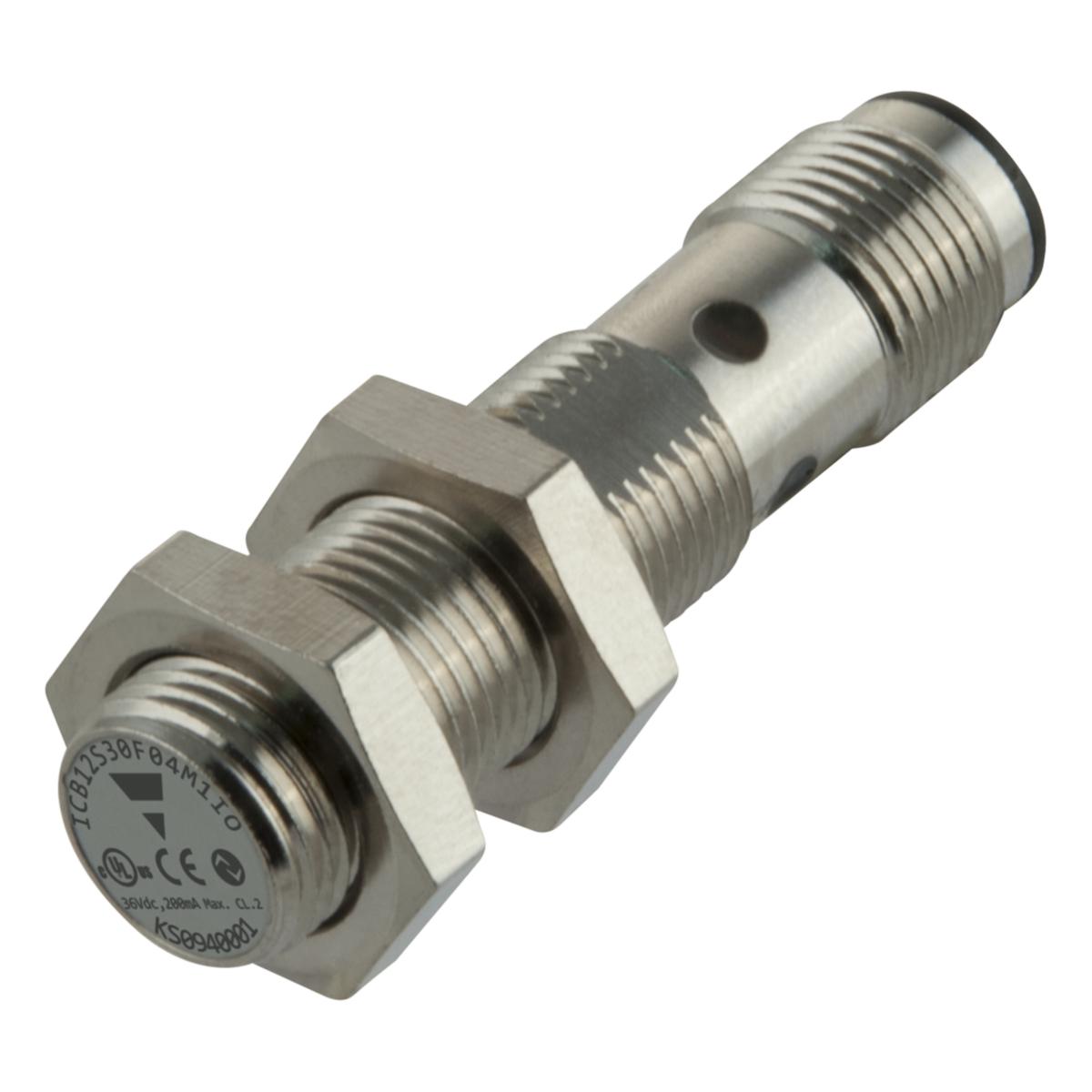

Inductive sensor ICB IO link
INDUCTIVE M12 PLUG IO-LINK ICB12S30F04M1IO
Article number: Suppl. article no:
3832455
ICB12S30F04M1IO
to see price and stock
With IO link
- Article number: 3832455
- Suppl. article no: ICB12S30F04M1IO
- Ean no: 5709870394435
- Material class QP029B
Technical data
- Supply voltage: 10-36 V
- Switching distance: 4 mm
- Type of switching output: PNP/NPN
- Type of switch function: Programmable/configurable
- Diameter sensor: 12 mm
- Length of sensor: 50.2 mm
- Width sensor: 0 mm
- Height of sensor: 0 mm
- Housing material: Metal
- Type of electric connection: Connector M12
- Coating housing: Nickel-plated
- Max. output current at protected output: 200 mA
- Switching frequency: 2000 Hz
- Construction type housing: Cylinder, screw-thread
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Interference resistance to magnetic fields: Immune against magnetic DC- and AC-field
- Type of interface: Other
- Type of interface for safety communication: None
- Type of actuation: Metallic Target
- Rated control supply voltage DC: 10-36 V
- Number of semiconductor outputs with signalling function: 1
- SIL according to IEC 61508: None
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 0
- Number of protected contact energized outputs: 0
- Voltage type: DC
- With monitoring function downstream switching devices: No
- Compression-resistant: No
- Cascadable: No
- Suitable for safety functions: No
- Mechanical mounting condition for sensor: Concise
- Performance level according to EN ISO 13849-1: None
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
