ABB
Safeball™

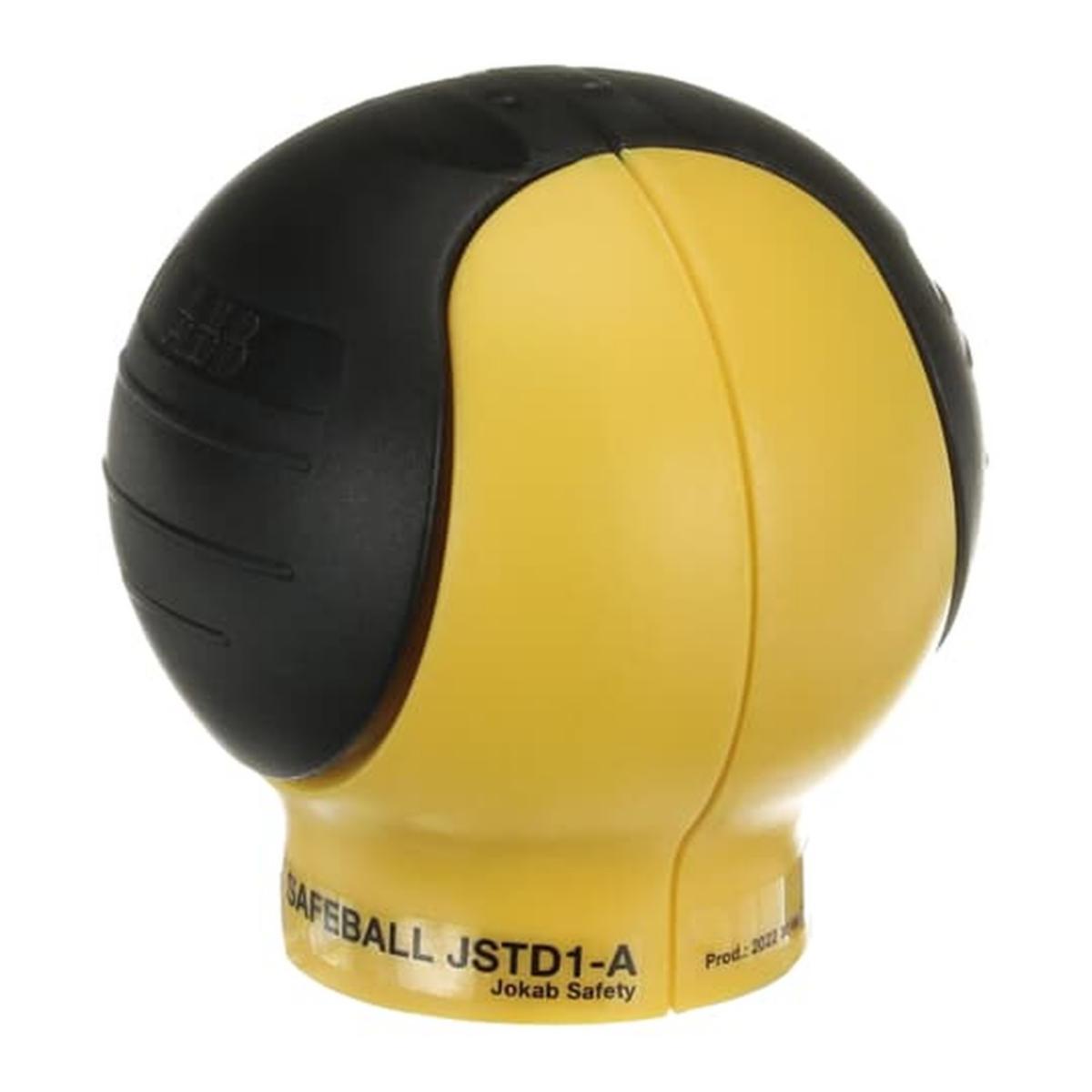

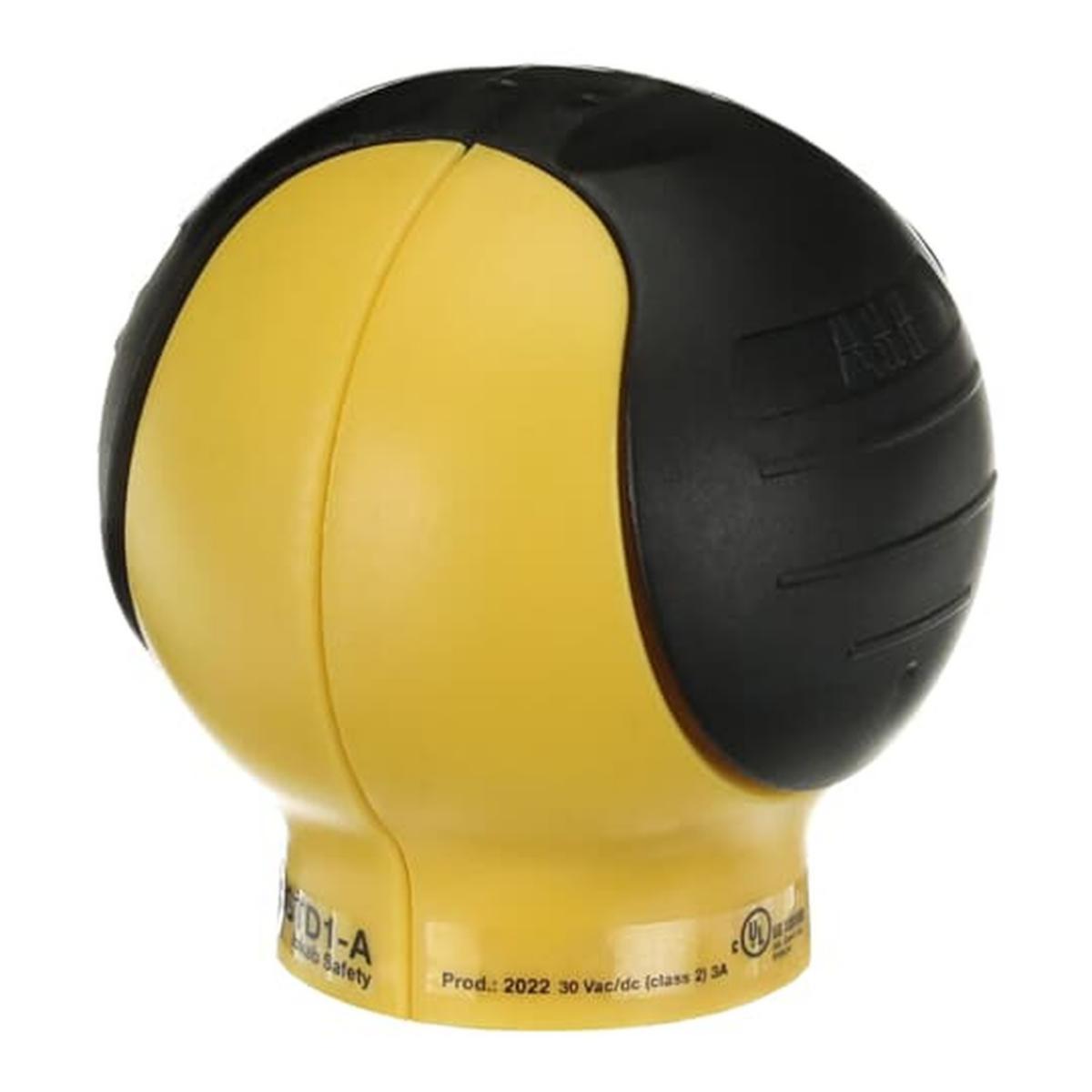

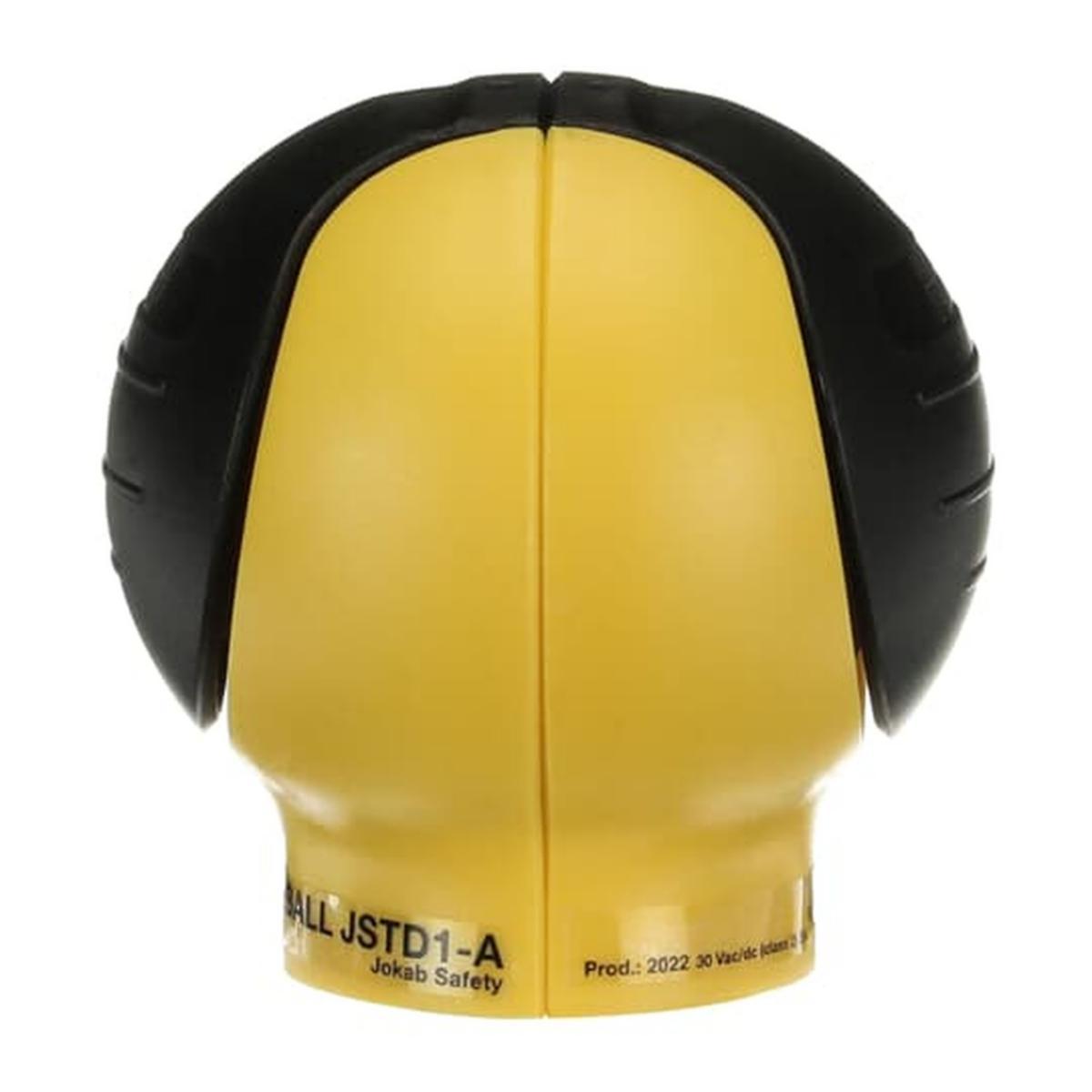

SAFEBALL 2M KABEL JSTD1-A JSTD1-A
Artikelnummer: Lev. artikelnr:
3861300
2TLA020007R3000
för att se saldo och pris
Safeball™ is an ergonomic one and two hands device with high security. Safeball™ consists of two units which can be mounted very flexibly, one for each hand and each device has two buttons, one on each side. In order to run a machine, all the buttons must be pressed the required simultaneously (0.5 seconds). This means that the Safeball™ is the first actuator that is two-channel right in your hand. When Safeball is used as a one-hand device, both buttons must be pressed. For both one-and two-hand devices, as soon as a button is released, the stop signal is given directly to the machine. Safeball™ can be connected to JSBR4 (38 610 21) or to a security PLC
- Article number: 3861300
- Suppl. article no: 2TLA020007R3000
- Ean no: 7350024460193
- Material class QP200B
- This is an alternative to item 3861302
Teknisk data
- Forced opening: No
- Suitable for safety functions: Yes
- Cross-wire monitoring possible: Yes
- With status indication: No
- Type of switching contact: Other
- Rated operation current Ie at DC-12, 24 V: 0.02 A
- Number of contacts as normally closed contact: 1
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 1
- Degree of protection (IP): IP67
- Width: 72 mm
- Height: 71 mm
- Deep: 72 mm
- Cable: 2000
- Contact: 1NO/1NC
- Design: With 2 m cable
- Type of electric connection: Other
- Weight: 200 g
- Performance level according to EN ISO 13849-1: Level e
- Degree of protection (NEMA): 1
- REACH Date: 2023-01-18
- Type: JSTD1-A
- REACH Information obligation: No
