Carlo Gavazzi

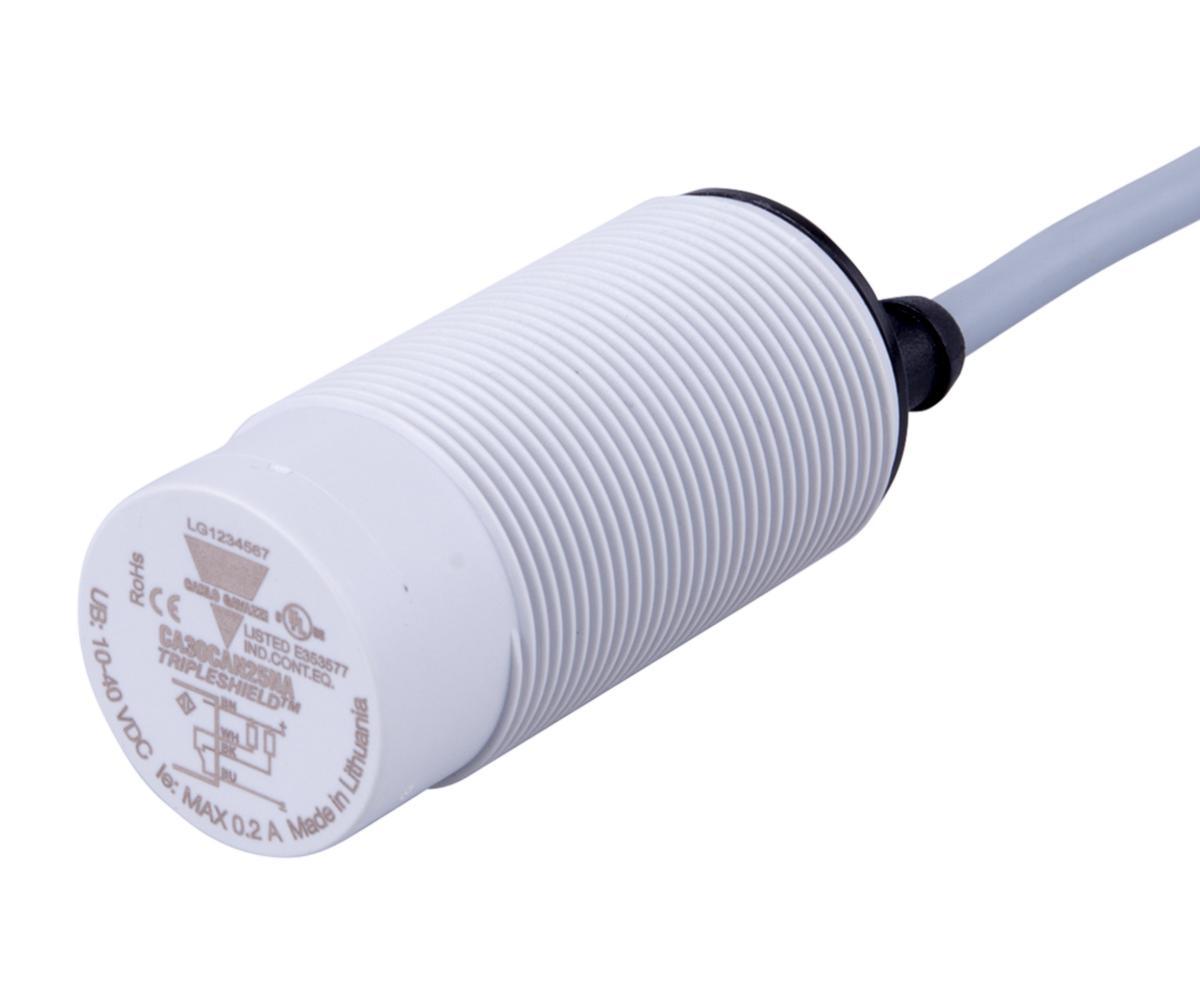

Capacitive sensor CA30
CAP PROX PL M30 PNP NO+NC,CAB CA30CAN25PA
Article number: Suppl. article no:
3830390
CA30CAN25PA
to see price and stock
Intended for partially recessed mounting
- Article number: 3830390
- Suppl. article no: CA30CAN25PA
- Ean no: 5709870386539
- Replaces art.nbr: 3834444
- Material class QP029B
Technical data
- Type: CA30CAN25PA
- Number of semiconductor outputs with signalling function: 0
- Number of contact energized outputs with signalling function: 0
- Number of protected semiconductor outputs: 1
- Number of protected contact energized outputs: 0
- Explosion safety category for dust: None
- Explosion safety category for gas: None
- Coating housing: Other
- Cascadable: Yes
- Housing material: Plastic
- Construction type housing: Cylinder, screw-thread
- Suitable for safety functions: No
- Supply voltage: 10-40 V
- Max. output current at protected output: 200 mA
- With monitoring function downstream switching devices: No
- Mechanical mounting condition for sensor: Not flat
- Rated control supply voltage DC: 10-40 V
- Switching distance: 25 mm
- Switching frequency: 50 Hz
- Performance level according to EN ISO 13849-1: Level a
- Width sensor: 0 mm
- Diameter sensor: 30 mm
- Height of sensor: 0 mm
- Length of sensor: 61 mm
- Voltage type: DC
- Compression-resistant: Yes
- Type of electric connection: Cable axial
- Type of interface: None
- Type of interface for safety communication: None
- Type of actuation: Other
- Type of switch function: Programmable/configurable
- Type of switching output: PNP
- Rated control supply voltage AC 50 Hz: 0 V
- Rated control supply voltage AC 60 Hz: 0 V
