IFM

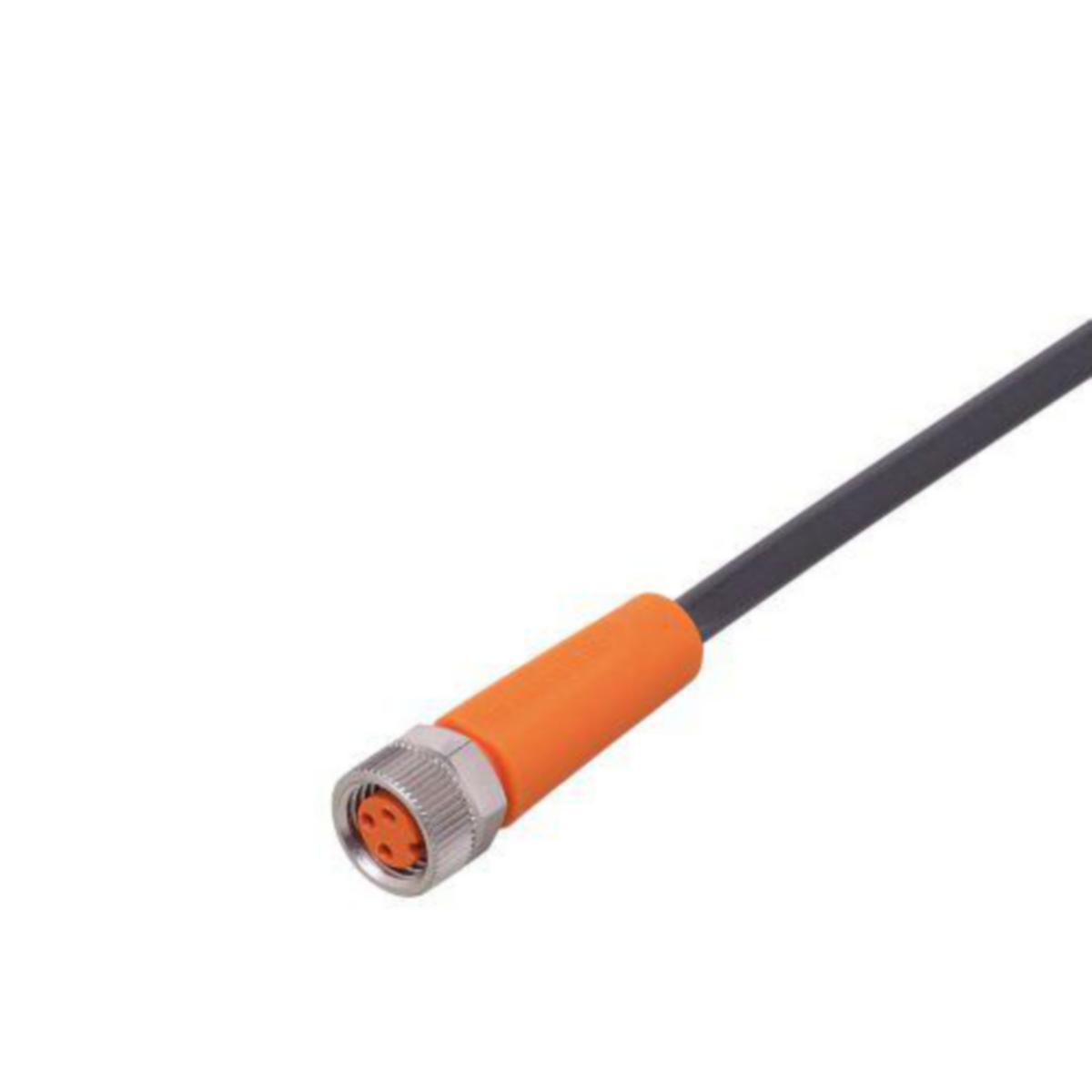

Connection cable EVC M8
CONNECTION CABLES WITH SOCKET ADOGF030MSS0005H03
Article number: Suppl. article no:
3830286
EVC142
to see price and stock
• Resistant to oil and coolant
• Permanent, reliable sealing even when mounting without tools
• High protection class for the requirements in harsh industrial environments
• Vibration and shock resistant thanks to clutch ring with locking mechanism
• Mechanical end stop to protect the O-ring from being destroyed
• Permanent, reliable sealing even when mounting without tools
• High protection class for the requirements in harsh industrial environments
• Vibration and shock resistant thanks to clutch ring with locking mechanism
• Mechanical end stop to protect the O-ring from being destroyed
- Article number: 3830286
- Suppl. article no: EVC142
- Ean no: 4021179249607
- Material class QP069B
Technical data
- Type: ADOGF030MSS0005H03
- Positioning cable feed, box-sided: Straight
- Type of plug-in contact, box-sided: Female (bus)
- Number of poles: 3
- Cable length: 5 m
- Material of cable sheath: Polyurethane (PUR)
- Halogen free: Yes
- Colour cable sheath: Black
- Type of electrical connection, field-sided: Free conductor end
- Type of electrical connection, box-sided: M8
