Schneider Electric

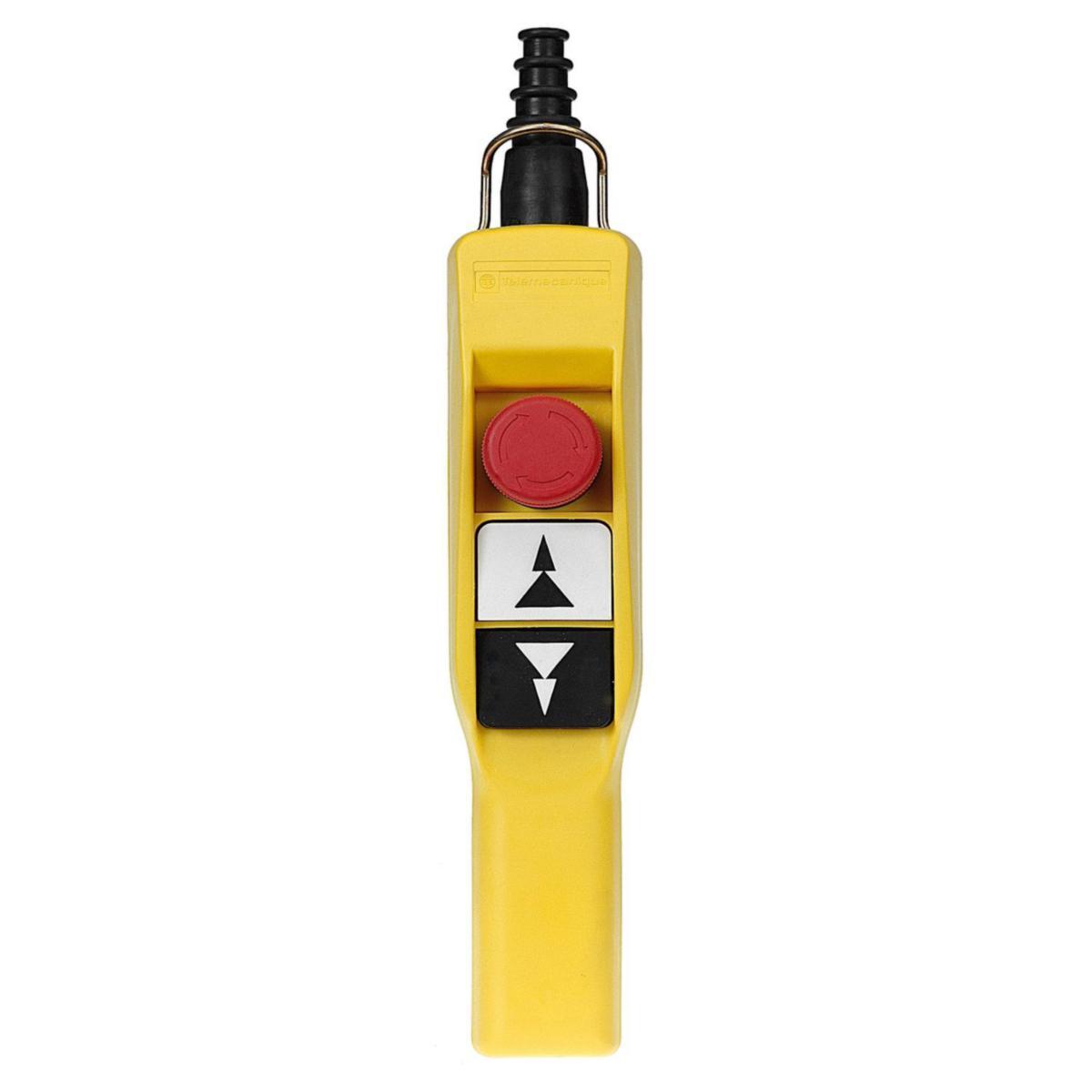

Hanging switch in polyamide IP 65 for two speeds (2 step)
PISTOL PENDANT STATION XACA2073
Artikelnummer: Lev. artikelnr:
3740828
XACA2073
för att se saldo och pris
Complete assembled for operation power. Enclosure in yellow polyamide. Cable grommet for cable diameter 9-13 mm. Thermal rated current 10 A.
Two closing contacts with offset function per direction. Two levers have mutually mechanical interlocking.
*As above but with external rubber seal
Two closing contacts with offset function per direction. Two levers have mutually mechanical interlocking.
*As above but with external rubber seal
- Article number: 3740828
- Suppl. article no: XACA2073
- Ean no: 3389110558890
- Material class QO760B
Teknisk data
- Number of command positions: 2
- Height: 295 mm
- Number of speeds: 2
- Width: 52 mm
- Depth: 101 mm
- Housing material: Plastic
- Suitable for emergency stop: Yes
- Rated operation current Ie at AC-15, 600 V: 1.2 A
- Type of executable motions: Lift
- Colour housing cover: Yellow
- Degree of protection (IP): IP65
- Housing material quality: Other
- Degree of protection (NEMA): 13
- REACH Date: 2022-07-20
- REACH Information obligation: No
