Schneider Electric

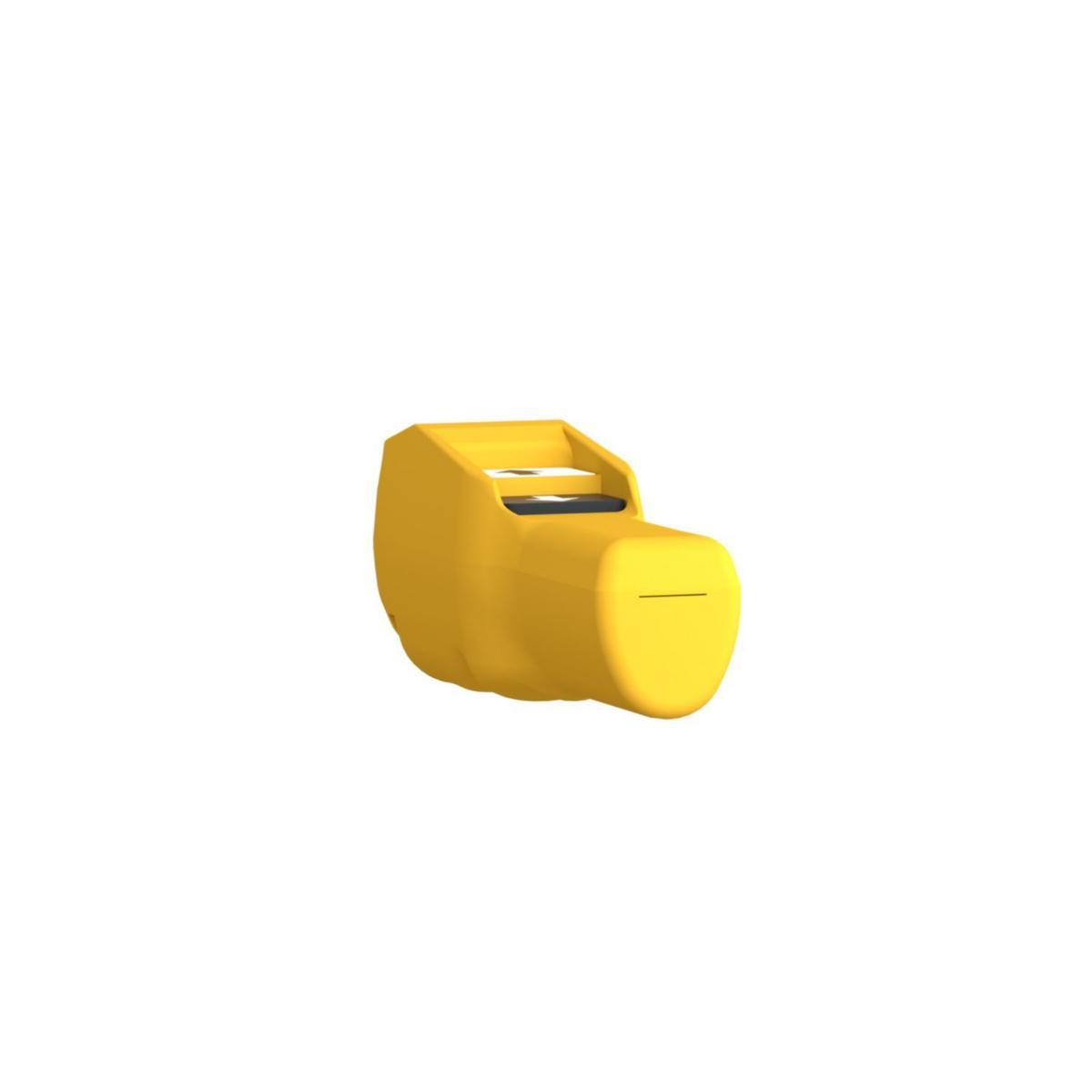

Hanging switch in polyamide IP 65 for one speed (1 step)
PUSHBUTTON STATION XACA205
Artikelnummer: Lev. artikelnr:
3740510
XACA205
för att se saldo och pris
Complete assembled for operation power. Enclosure in yellow polyamide. Cable grommet for cable diameter 9-13 mm. Thermal rated current 10 A.
One closing and one breaking per direction. Two levers have mutually mechanical interlocking.
One closing and one breaking per direction. Two levers have mutually mechanical interlocking.
- Article number: 3740510
- Suppl. article no: XACA205
- Ean no: 3389110645026
- Material class QO760B
Teknisk data
- Packagin Size: 1 ST/14 ST/112 ST
- Type: XACA205
- Number of command positions: 2
- Height: 295 mm
- Number of speeds: 1
- Width: 52 mm
- Depth: 71 mm
- Housing material: Plastic
- Suitable for emergency stop: No
- Rated operation current Ie at AC-15, 600 V: 1.2 A
- Type of executable motions: Lift
- Colour housing cover: Yellow
- Degree of protection (IP): IP65
- Housing material quality: Other
- Degree of protection (NEMA): 13
- REACH Date: 2022-07-20
- REACH Information obligation: No
