Åkerströms

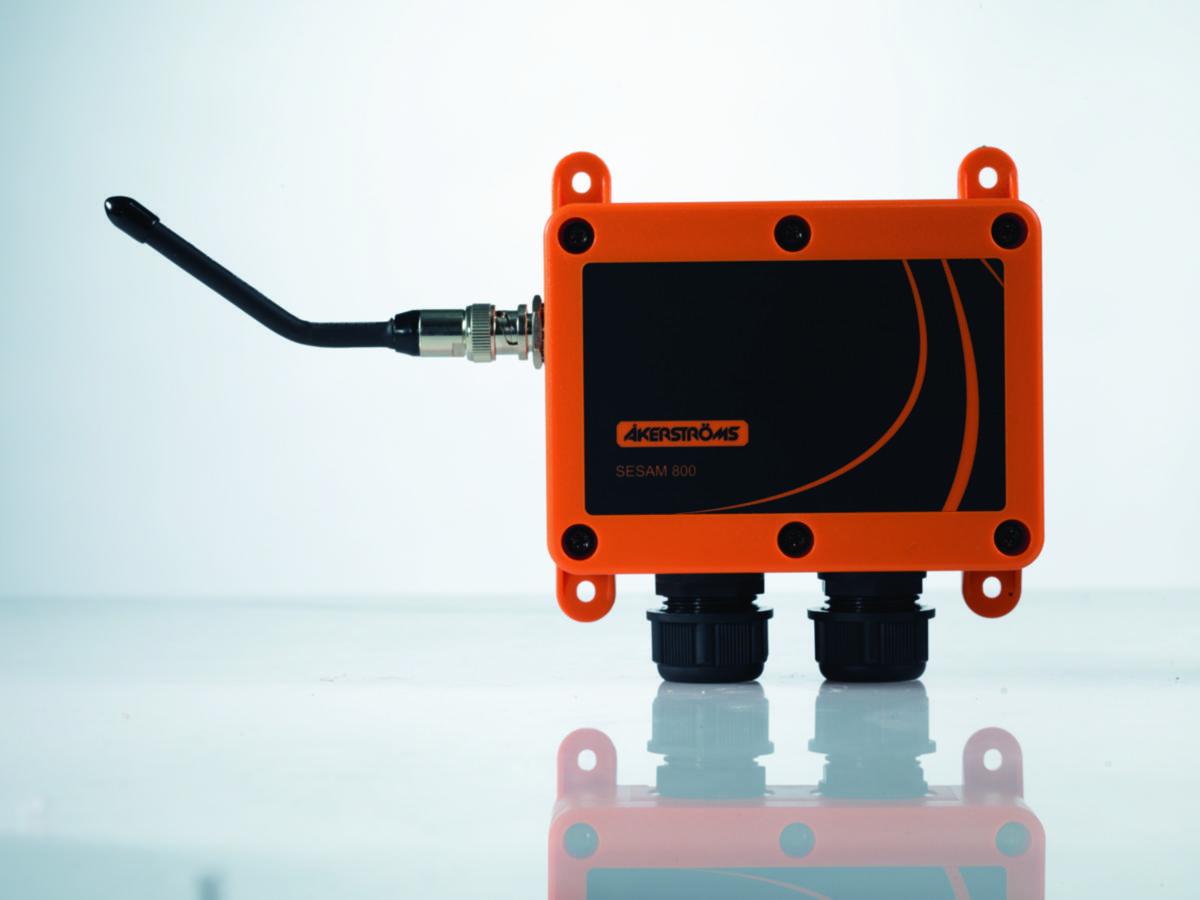

Receiver Sesam 800
RECEIVER 3 RELAY 230V 940156-000
Artikelnummer: Lev. artikelnr:
3775310
940156-000
för att se saldo och pris
There are three receiver models; one with and one without a LCD display window and a smaller receiver for mounting on a DIN rail. The receiver with the PCD display window makes it simple to remove or add new transmitters/users. It also has a removable memory card for business-critical systems where each receiver can be used together with a large number of transmitters. In the receiver, there is also the option to protect the installation with a four-digit PIN code, which means that only authorised people can unlock and use the functions. Installation and unlocking is simply done using the display windows keys.
- Article number: 3775310
- Suppl. article no: 940156-000
- Material class QO785B
Teknisk data
- Design: 3 (SPDT) outputs
- Signal transmission: Radio frequency (RF)
- Weight: 0.45 kg
- Height: 51 mm
- Width: 90 mm
- Power consumption: 0.06 A
- Length: 120 mm
- Radio frequency: 869.8 MHz
- Type: RX
- Information: Power consumption: 60 mA at 12 VDC
- Output: Max. 5 m
- Enclosure class: IP65
- Ambient temperature: -25° - +70°C
- Voltage: 230 V
