Schneider Electric

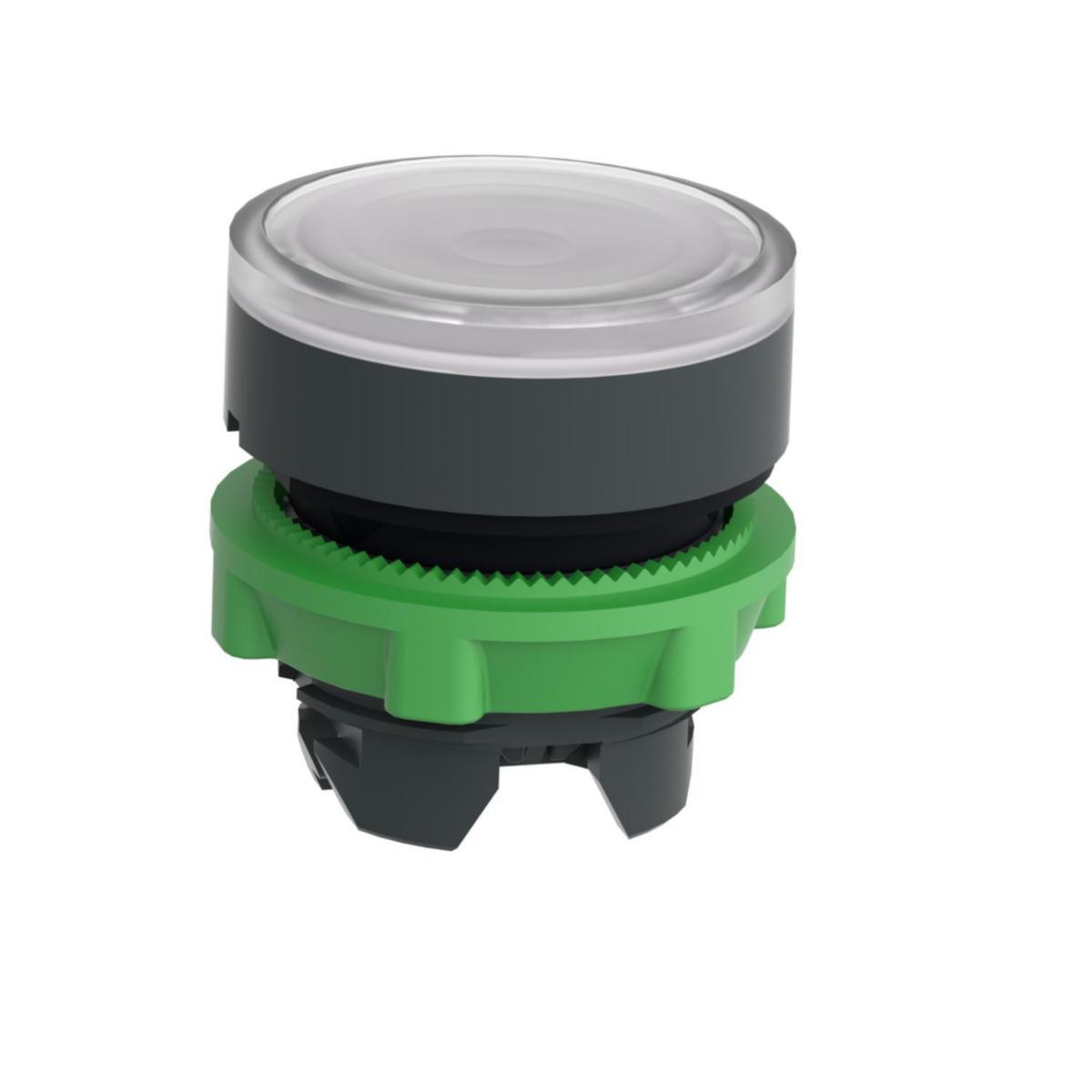

Flush lamp button for LED ZB5AW
ILLUMINATED PUSHBUTTON HE ZB5AW313
Article number: Suppl. article no:
3734295
ZB5AW313
to see price and stock
Flat lamp push buttons in different colours for LED
- Article number: 3734295
- Suppl. article no: ZB5AW313
- Ean no: 3389110909920
- Material class QO760B
Technical data
- Packagin Size: 1 ST/5 ST
- Type: ZB5AW313
- Design: Harmony style 5
- Colour button: White
- Type of button: Flat
- Number of command positions: 1
- Spring-return: Yes
- Switching function latching: No
- Material front ring: Plastic
- Hole diameter: 22.5 mm
- Colour front ring: Black
- Degree of protection (IP), front side: IP66
- With front ring: Yes
- Suitable for lighting: Yes
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Labelled: No
- With protective cover: No
- Degree of protection (NEMA), front side: Other
- REACH Date: 2022-07-20
- Temperature range in operation: -25+70 °C
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - REACH Information obligation: No
