Schneider Electric

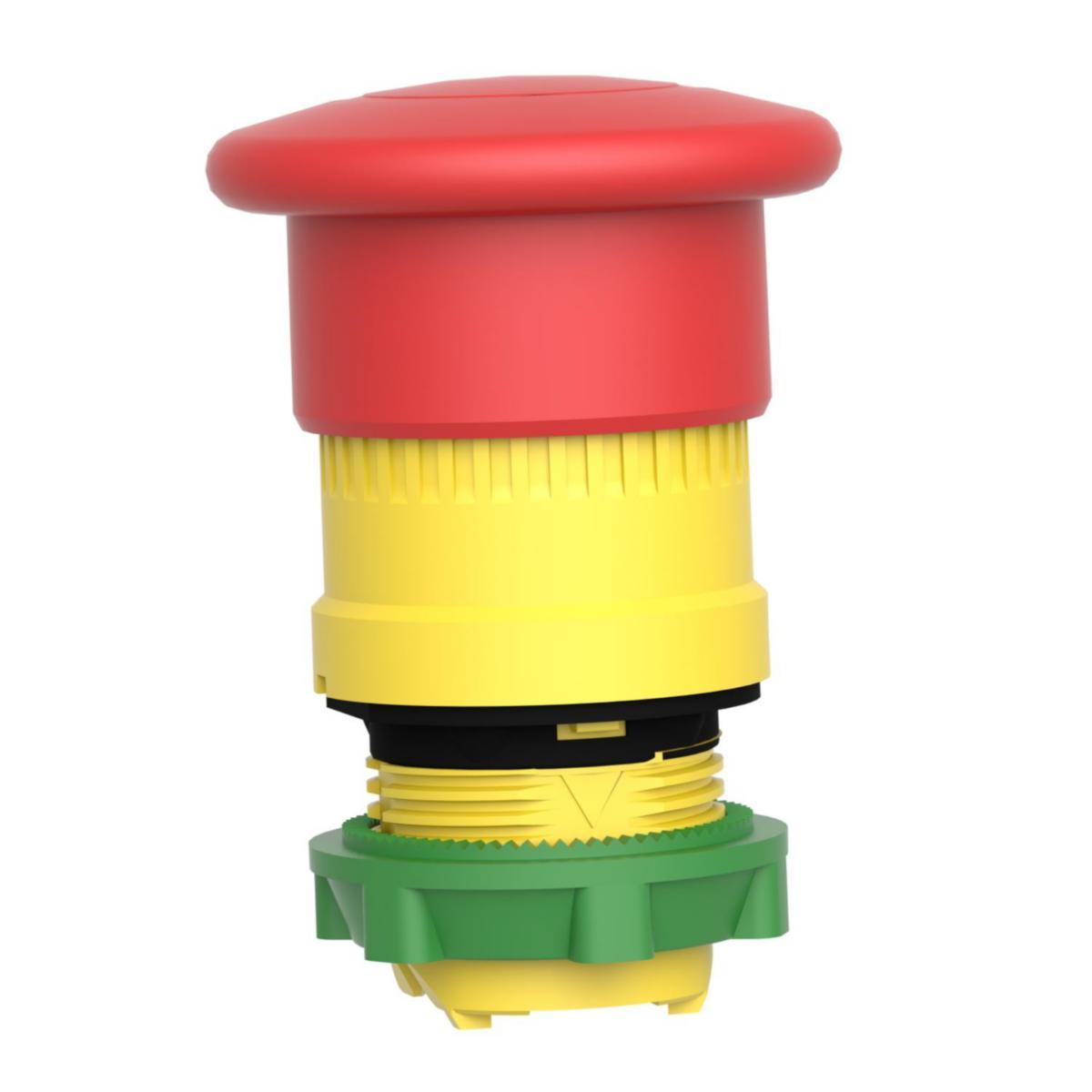

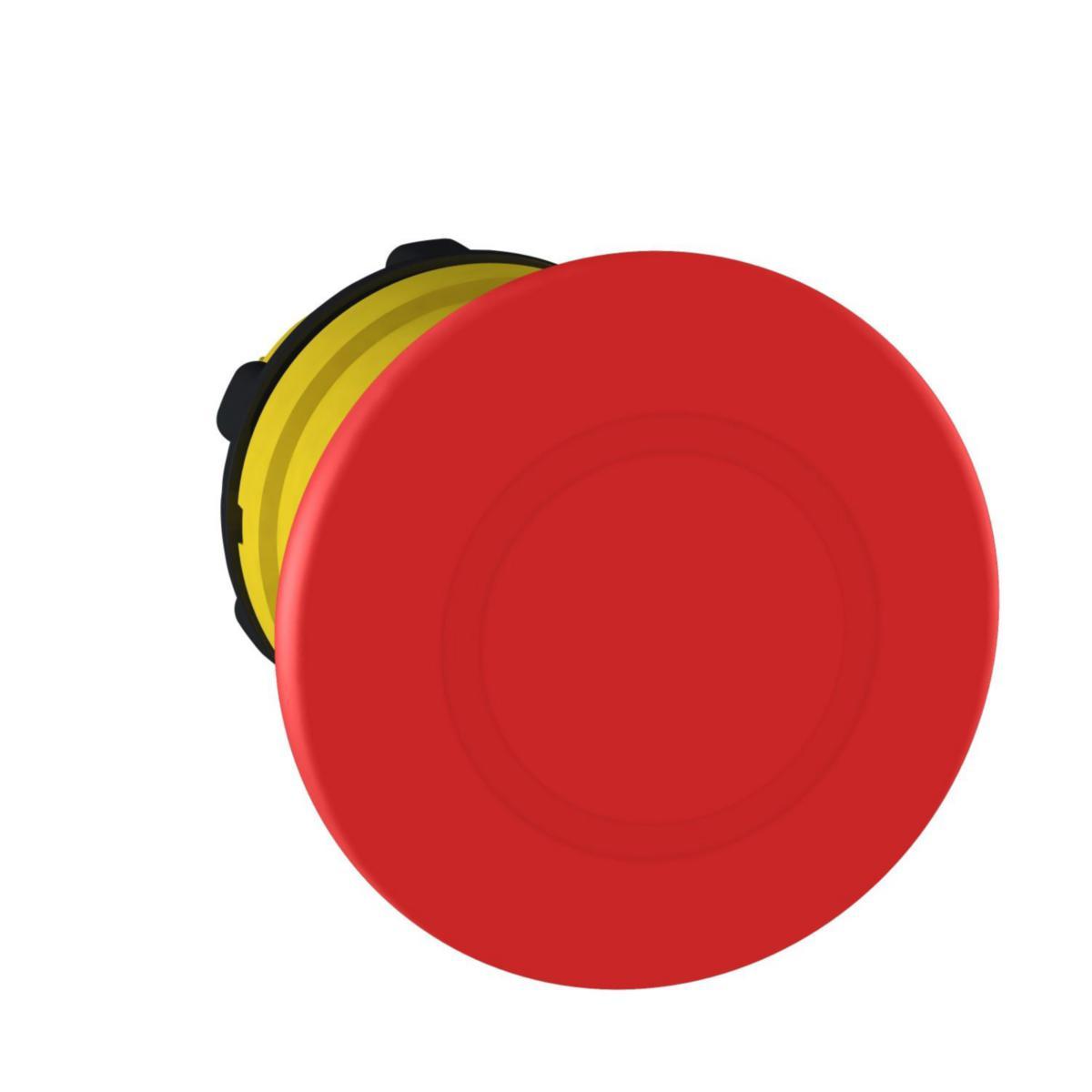

Mushroom head button ø 40 mm, "Trigger Action" with push/pull reset ZB5AT
EMERGENCY STOP OP. HEAD ZB5AT84
Article number: Suppl. article no:
3733971
ZB5AT84
to see price and stock
Front ring in plastic Harmony
- Article number: 3733971
- Suppl. article no: ZB5AT84
- Ean no: 3389110907742
- Material class QO760B
Technical data
- Packagin Size: 1 ST/42 ST
- Type: ZB5AT84
- Design: Harmony style 5
- Material front ring: Plastic
- Colour front ring: Black
- Hole diameter: 22.5 mm
- Colour button: Red
- Diameter cap: 40 mm
- Degree of protection (IP): IP66
- Unlocking method: Pull-release
- Width opening: 0 mm
- Spring-return: No
- Suitable for lighting: No
- Suitable for emergency stop: Yes
- With front ring: Yes
- Switching function latching: Yes
- Type of button: High
- Construction type lens: Round
- Height opening: 0 mm
- With lighting: No
- Degree of protection (NEMA): Other
- REACH Date: 2022-07-20
- Temperature range in operation: -25° C to +70° C
- Number of contacts: 1 to 9 pc
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - REACH Information obligation: No
