Schneider Electric

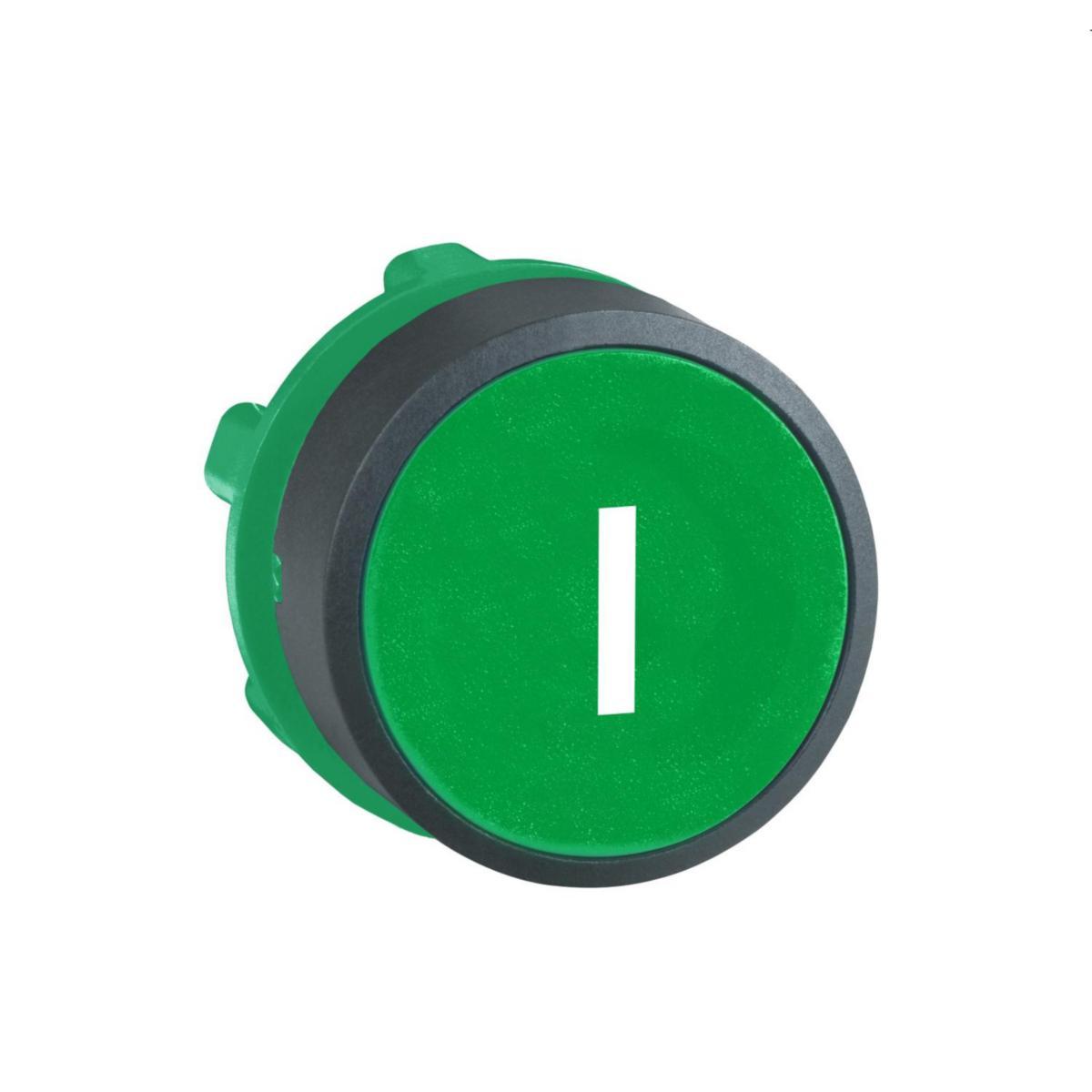

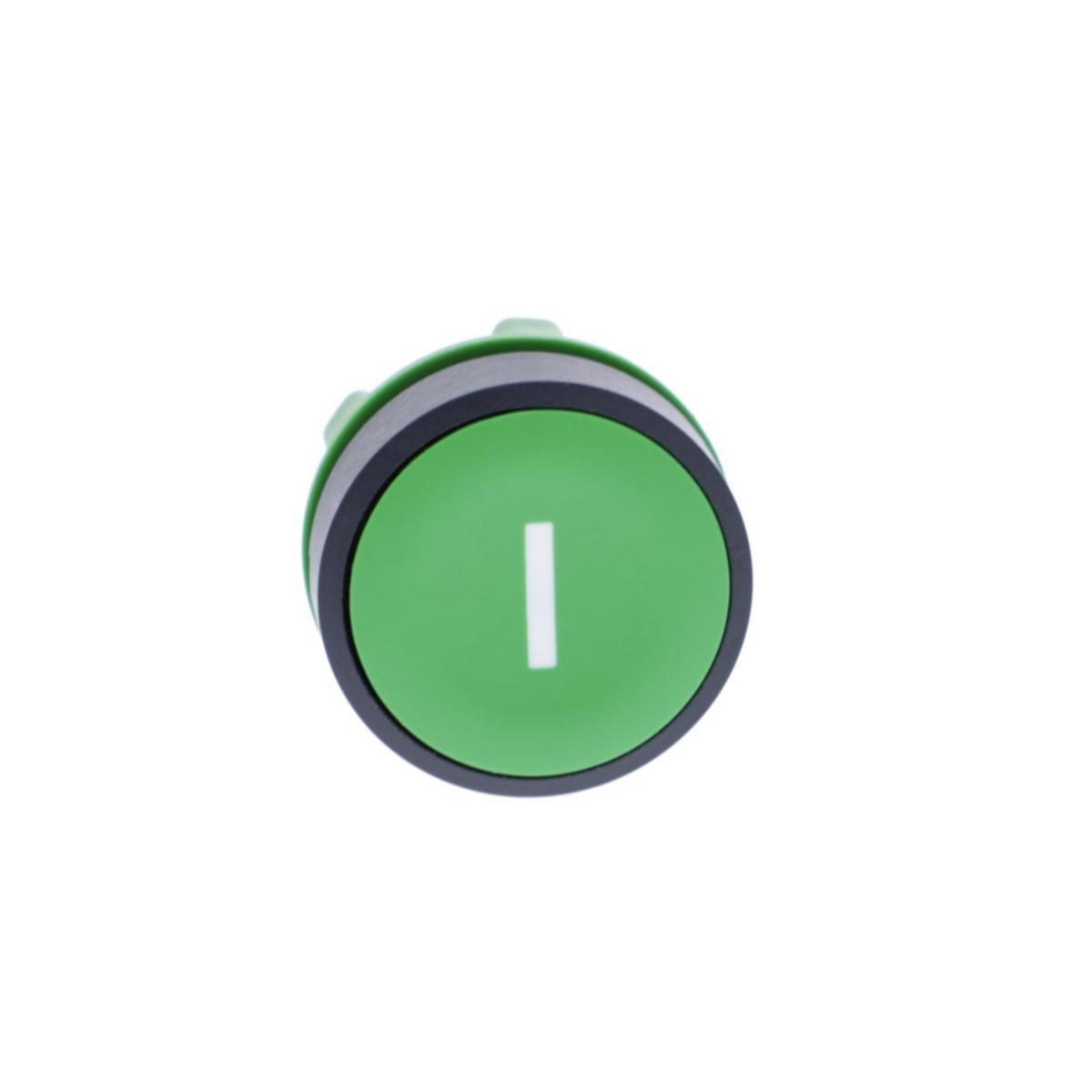

Flush actuator ZB5AA
PUSHBUTTON OPERATOR HEAD ZB5AA331
Article number: Suppl. article no:
3733862
ZB5AA331
to see price and stock
With marking in the push area
- Article number: 3733862
- Suppl. article no: ZB5AA331
- Ean no: 3389110904536
- Material class QO760B
Technical data
- Packagin Size: 1 ST/5 ST/300 ST/2400 ST
- Type: ZB5AA331
- Design: Harmony style 5
- Colour button: Green
- Type of button: Flat
- Number of command positions: 1
- Spring-return: Yes
- Switching function latching: No
- Material front ring: Plastic
- Hole diameter: 22.5 mm
- Colour front ring: Black
- Degree of protection (IP), front side: IP66
- With front ring: Yes
- Suitable for lighting: No
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Labelled: No
- With protective cover: No
- Degree of protection (NEMA), front side: 13
- REACH Date: 2022-07-20
- Temperature range in operation: -25° C to +70° C
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - Rating: White "I"
- Print colour/text: White "I"
- REACH Information obligation: No
