Telemecanique

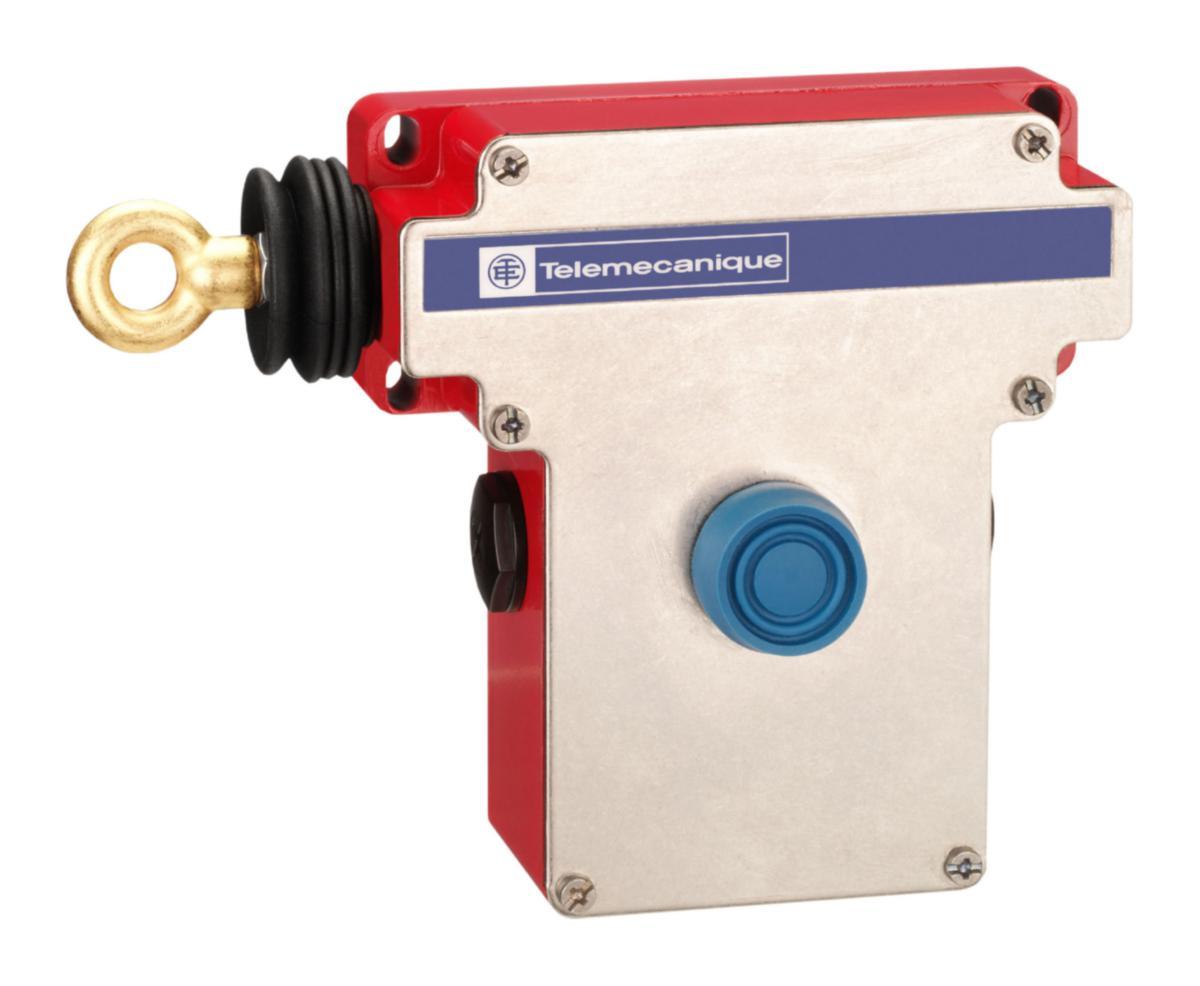

Cable pull switch without signal lamp IP 65 for line lengths up to 50 metres
TRIP WIRE SWITCH XY2CE6A270
Article number: Suppl. article no:
3741052
XY2CE6A270
to see price and stock
The line is drawn parallel to the longitudinal axis of the apparatus. A forced breaking and a closing contact are affected if the line is pulled more or slackened (line break). With" trigger-action" function (mechanical locking before electric break).Recommended line diameter ø 3.2 mm. Support for the line is placed at 5 m intervals commencing after 100 mm. Recovery via knob with external rubber seal. Cable insertion: 3 holes for cable diameter 12 mm Insulation rated voltage. 500 V
- Article number: 3741052
- Suppl. article no: XY2CE6A270
- Ean no: 3389110471892
- Material class QO760A
Technical data
- Packagin Size: 1 ST/6 ST
- Type: XY2-CE6A270
- Design: Left
- Number of contacts as normally open contact: 0
- Number of contacts as normally closed contact: 2
- Number of contacts as change-over contact: 0
- Max. length of pull cord: 0 m
- Degree of protection (IP): IP66
- With tension indication: No
- Colour: Red
- Ambient temperature: -25-70 °C
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
