Schneider Electric

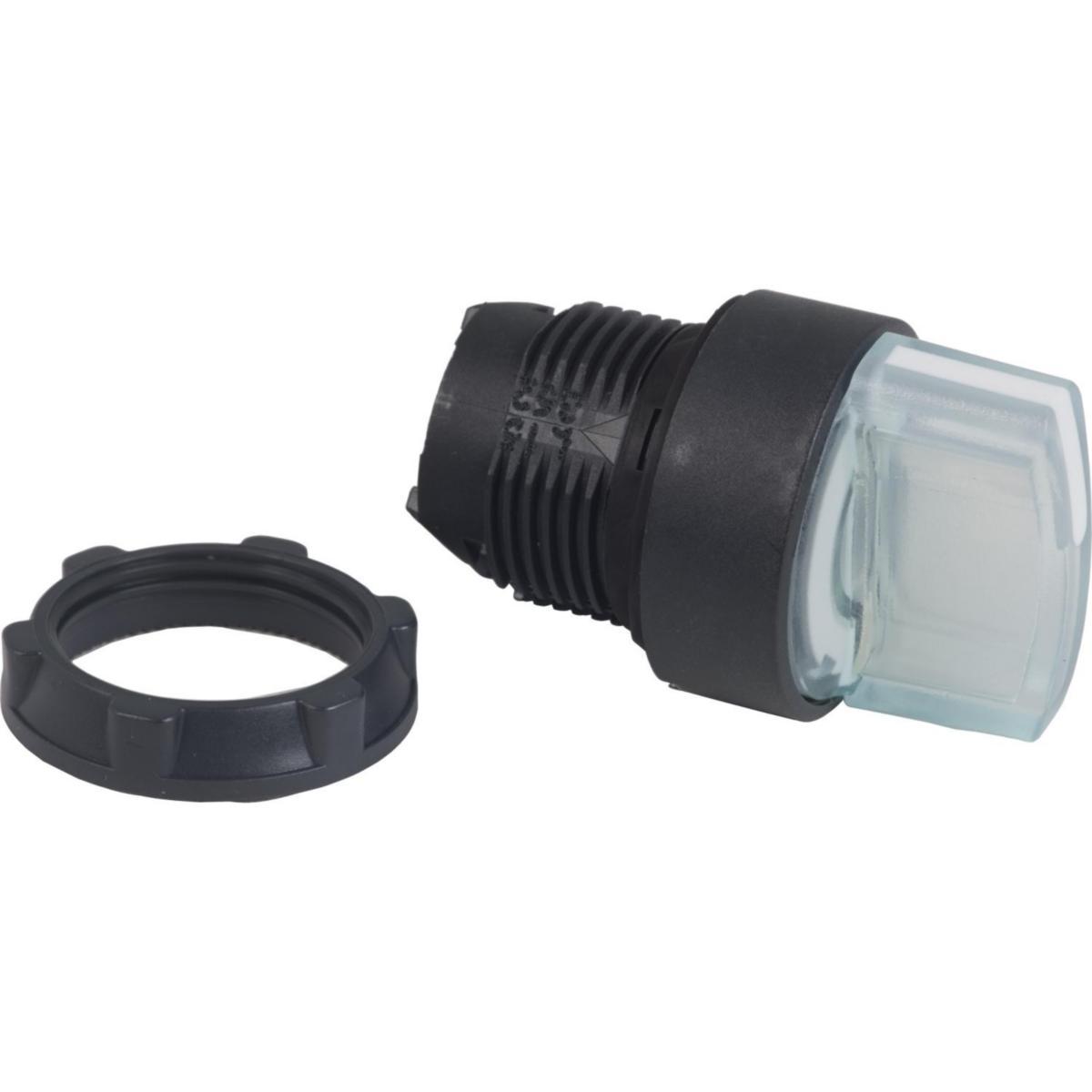

Lamp rotary switch with inbuilt LED ZB5AK
ILLUM SEL TO R SWITCH HEAD 2 P ZB5AK1213
Artikelnummer: Lev. artikelnr:
3734367
ZB5AK1213
för att se saldo och pris
Front ring in plastic Harmony
- Article number: 3734367
- Suppl. article no: ZB5AK1213
- Ean no: 3389110137903
- Material class QO760B
Teknisk data
- Packagin Size: 1 ST/100 ST/800 ST
- Type: ZB5AK1213
- Design: Harmony style 5
- Colour control element: White
- Colour indicator light cap: Other
- With front ring: Yes
- Colour front ring: Black
- Number of switch positions: 2
- Spring-return: No
- Material front ring: Plastic
- Hole diameter: 22.5 mm
- Suitable for lighting: Yes
- Switching function latching: Yes
- Degree of protection (IP), front side: IP66
- Type of control element: Short rotary handle
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Degree of protection (NEMA): 13
- Weight: 0.021 g
- REACH Date: 2022-07-20
- Temperature range in operation: -25° C to +70° C
- Number of contacts: 1 to 9 pc
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - REACH Information obligation: No
