Schneider Electric

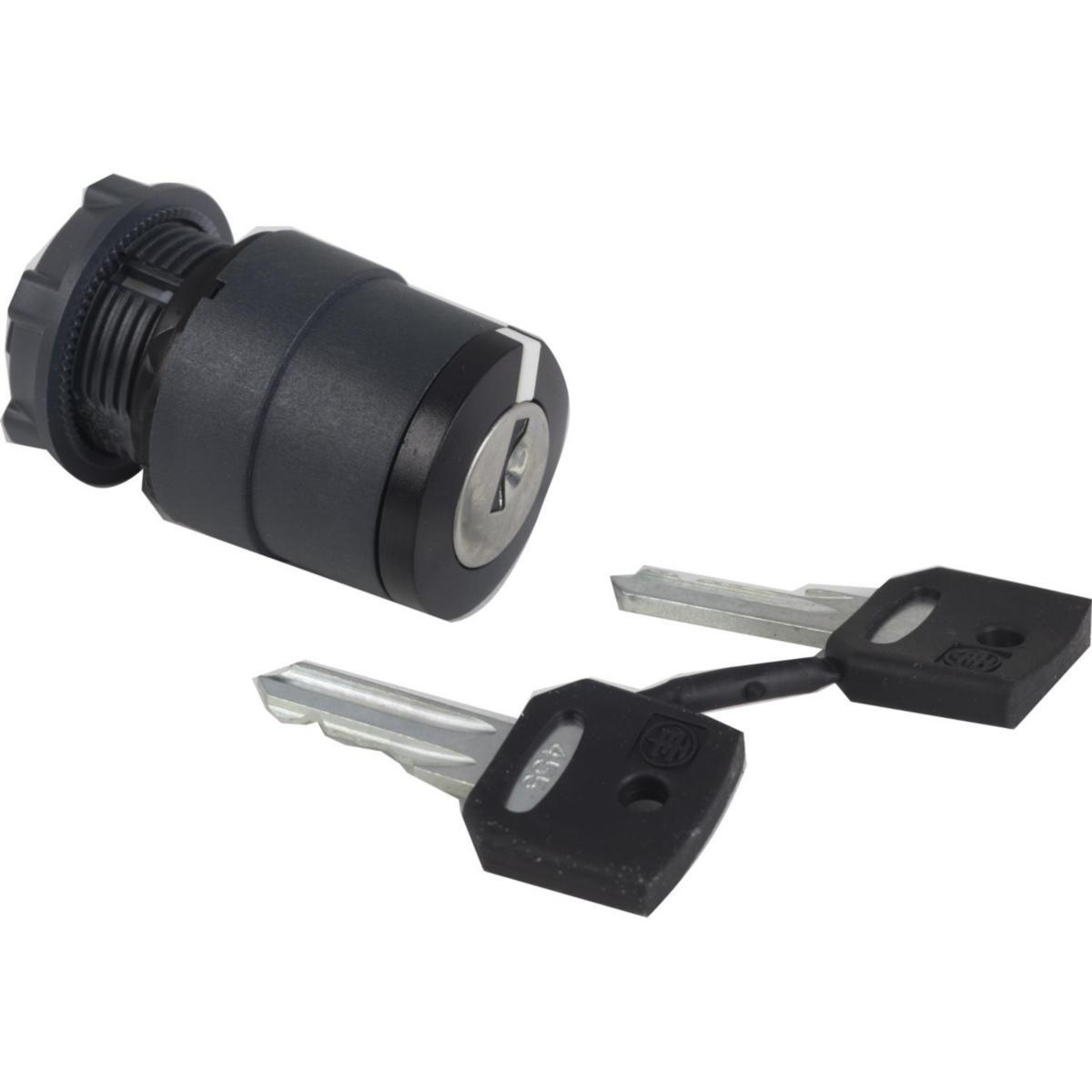

Key switch ZB5AG
SELECTOR SWITCH HEAD KEY 2 POS ZB5AG2
Artikelnummer: Lev. artikelnr:
3734040
ZB5AG2
för att se saldo och pris
Front ring in plastic Harmony
- Article number: 3734040
- Suppl. article no: ZB5AG2
- Ean no: 3389110905809
- Material class QO760B
Teknisk data
- Packagin Size: 1 ST/5 ST/150 ST/1200 ST
- Type: ZB5AG2
- Design: Harmony style 5
- Colour control element: Other
- With front ring: Yes
- Colour front ring: Black
- Number of switch positions: 2
- Spring-return: No
- Material front ring: Plastic
- Hole diameter: 22.5 mm
- Suitable for lighting: No
- Switching function latching: Yes
- Degree of protection (IP), front side: IP66
- Type of control element: Key
- Construction type lens: Round
- Height opening: 0 mm
- Width opening: 0 mm
- Degree of protection (NEMA): 13
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- Product series: Harmony style 5
- Temperature range in operation: -25° C to +70° C
- Number of contacts: 1 to 9 pc
- Rated data at AC 15: Ue = 240 V, le = 3 A
- Rated data at DC 13: Ue = 250 V, le = 0.27 A
- Number of positions: Key extractable in left mode
- Screw connection: min 1x0.22 mm without end sleeve
max 2x1.5 mm with end sleeve - REACH Information obligation: Yes
