AhlsellProductsElectricAutomation 29-4537 Push buttons, signal lampsFoot-operated control device Schneider Electric
Schneider Electric

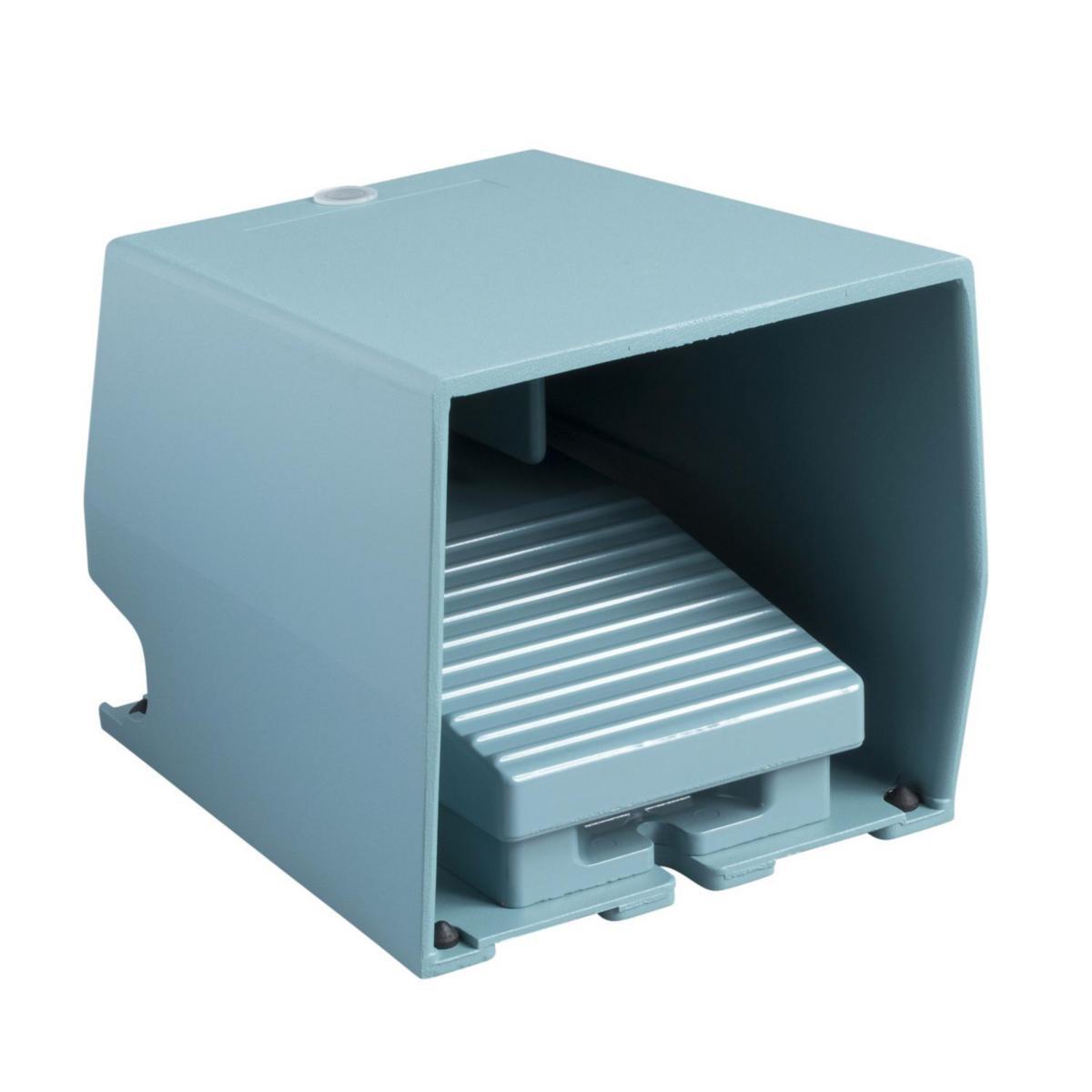

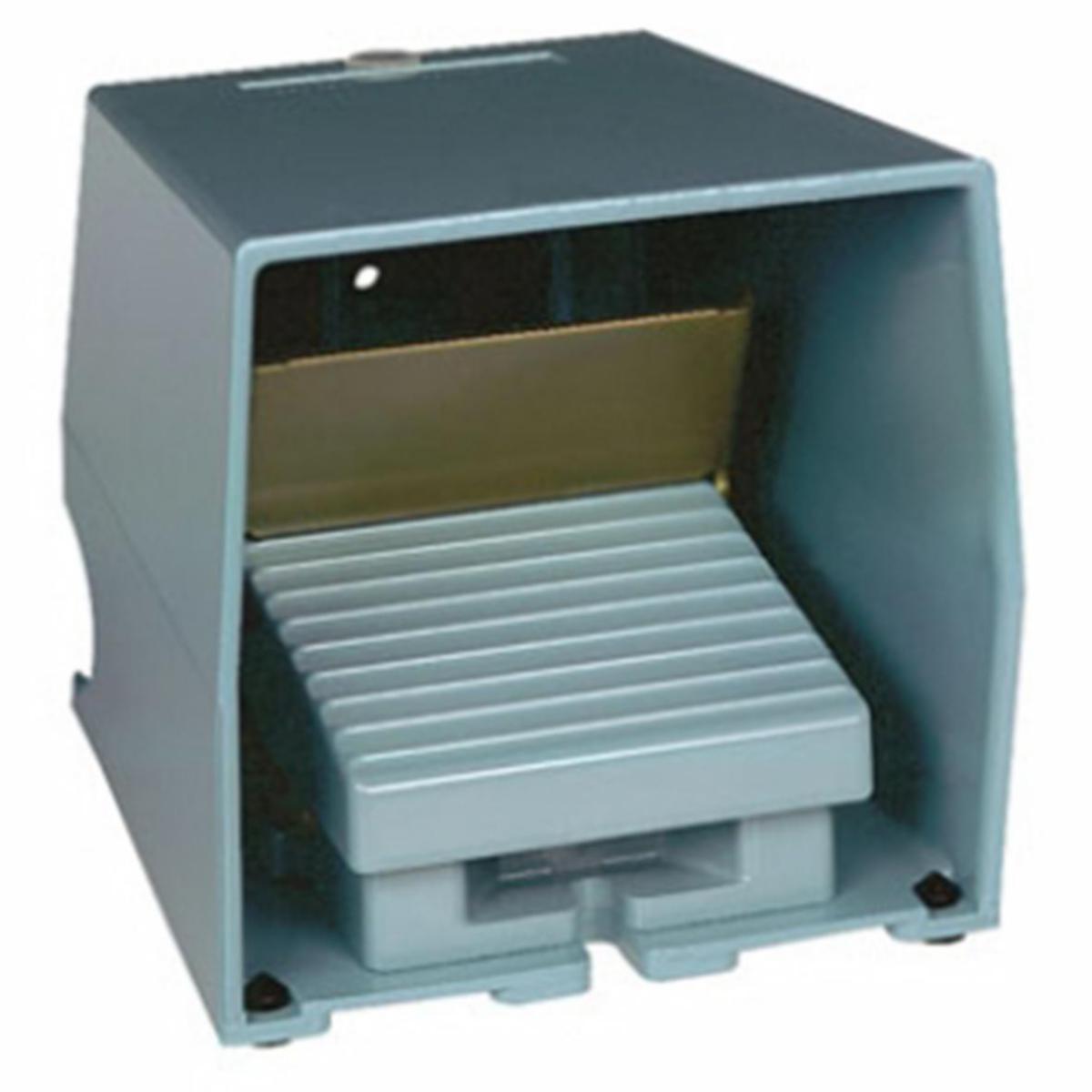

Pedal with protective casing and heel support
FOOT SWITCH XPEM3112
Article number: Suppl. article no:
3740120
XPEM3112
to see price and stock
Foot pedals from Schneider Electric is an ideal solution for start and stop command of various types of machines. Commands can be executed as: normal (pulse) start, gradually, constant. All these variants are not included in the list below. The new modern designed foot pedals are made of plastic and are suitable for easier machine control systems. Metal pedals are best suited for heavier machine control systems.
- Article number: 3740120
- Suppl. article no: XPEM3112
- Ean no: 3389118127715
- Material class QO760B
Technical data
- Packagin Size: 1 ST/10 ST
- Type: XPEM3112
- Number of contacts as normally closed contact: 2
- Number of contacts as normally open contact: 2
- Number of contacts as change-over contact: 0
- Colour: Blue
- Material: Metal
- With protection hood: Yes
- With interlocking: No
- Degree of protection (IP): IP66
- Suitable for safety functions: No
- With protective insulation: Yes
- Rated operation current Ie at AC-15, 230 V: 3 A
- Switching function latching: No
- Width: 0 mm
- Depth: 0 mm
- Type of command: On or off
- REACH Date: 2022-07-20
- Enclosure: IP66
- Control lock: No
- REACH Information obligation: No
