AhlsellProductsElectricAutomation 29-4537 Push buttons, signal lampsFoot-operated control device Schneider Electric
Schneider Electric
Pedal without protective casing

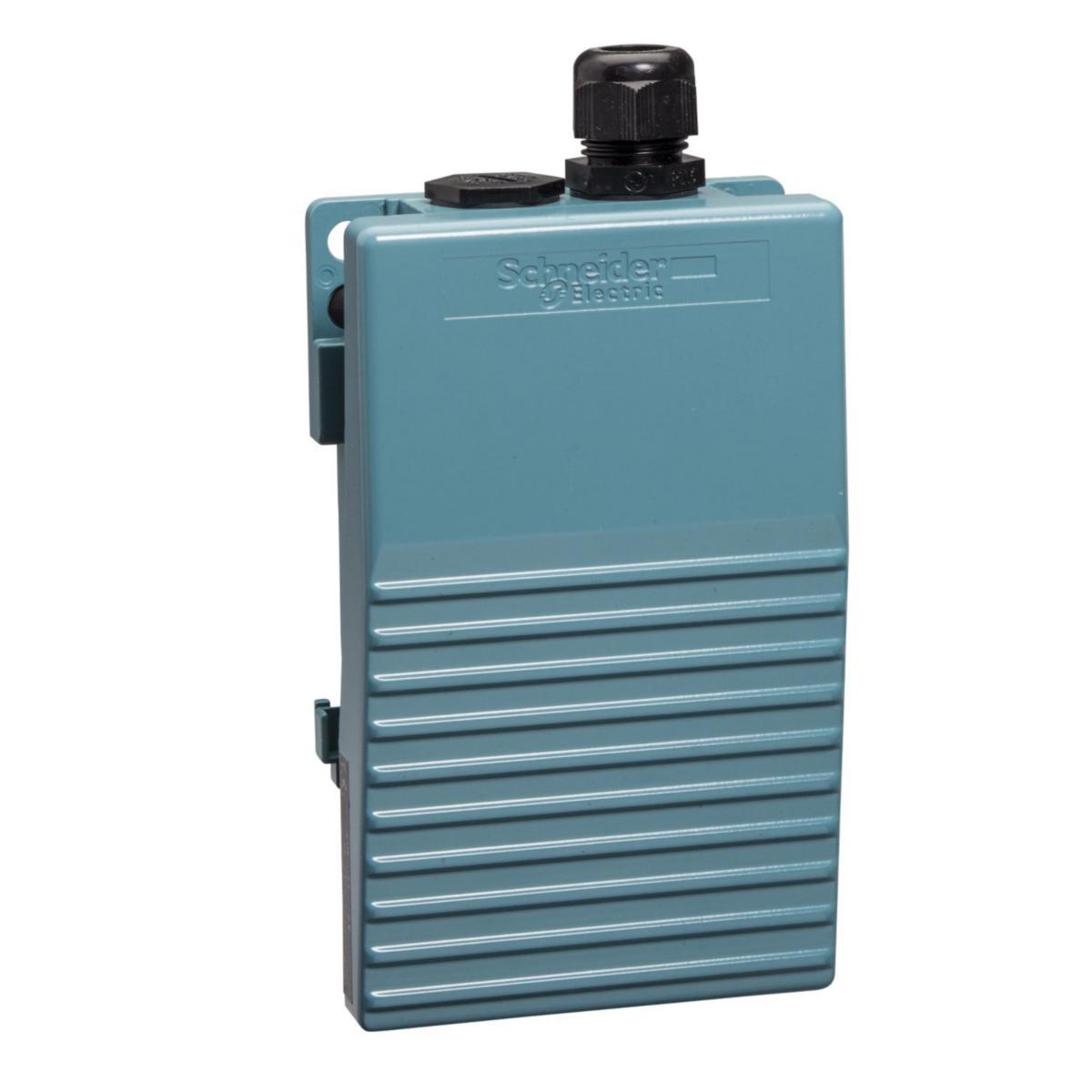

FOOT SWITCH XPEM111
Article number: Suppl. article no:
3740110
XPEM111
to see price and stock
Foot pedals from Schneider Electric is an ideal solution for start and stop command of various types of machines. Commands can be executed as: normal (pulse) start, gradually, constant. All these variants are not included in the list below. The new modern designed foot pedals are made of plastic and are suitable for easier machine control systems. Metal pedals are best suited for heavier machine control systems.
- Article number: 3740110
- Suppl. article no: XPEM111
- Ean no: 3389110650129
- Material class QO760A
Technical data
- Packagin Size: 1 ST/4 ST
- Type: XPEM111
- Number of contacts as normally closed contact: 2
- Number of contacts as normally open contact: 2
- Number of contacts as change-over contact: 0
- Colour: Blue
- Material: Metal
- With protection hood: No
- With interlocking: No
- Degree of protection (IP): IP66
- Suitable for safety functions: Yes
- With protective insulation: No
- Rated operation current Ie at AC-15, 230 V: 3 A
- Switching function latching: No
- Width: 104 mm
- Depth: 172 mm
- Type of command: On or off
- Number of switch positions: 1
- Height: 104 mm
- Degree of protection (NEMA): Other
- REACH Date: 2022-07-20
- Enclosure: IP66
- REACH Information obligation: No
