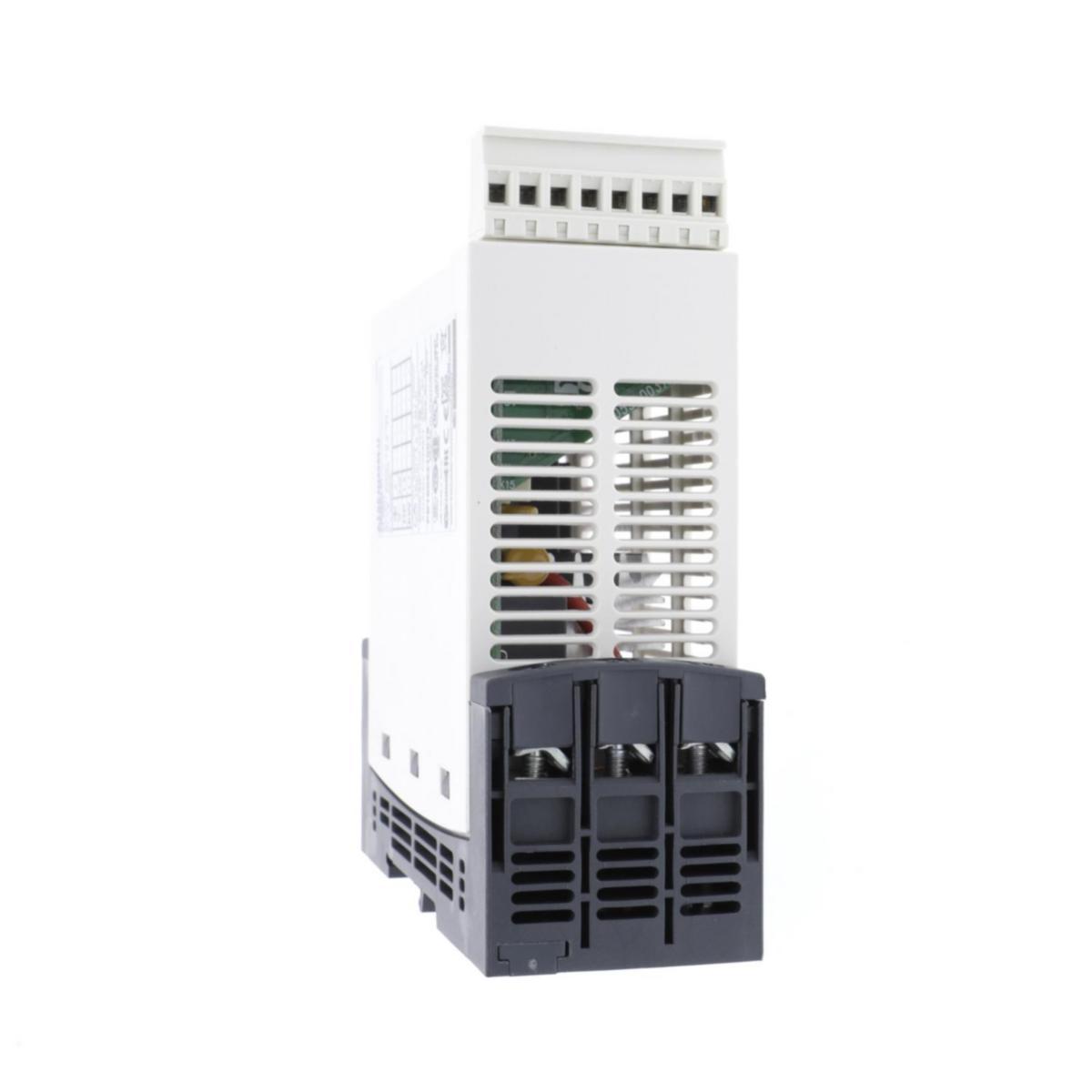

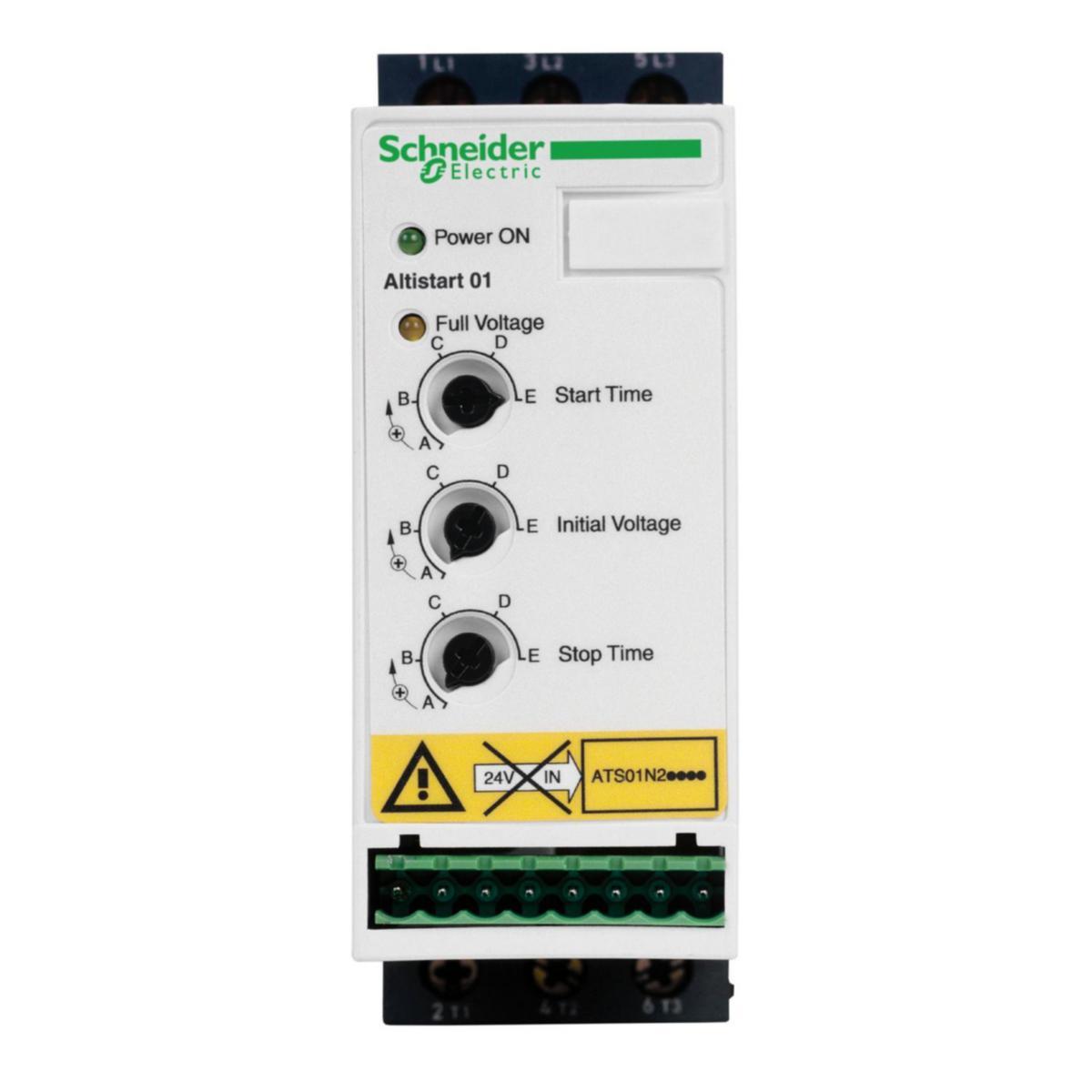

Soft starter ATS01N2 Soft start/stop, 0.75 for 15kW 3-phase 380-415 V

SOFT-START STOP 6A, 380 415V ATS01N206QN

Article number:

3308920

Suppl. article no:

ATS01N206QN

‌
‌
‌

‌
‌

to see price and stock

For single phase or three-phase cage induction motors from 0.37 to 15 kW/3 to 32 A.
Altistart 01 is the best solution for soft start and/or soft stop of most applications, it is both simple to use (connection, commissioning) and safe, thanks to the complete motor starting solutions (custom motor protection circuit breakers and contactors from Schneider). By reducing machine wear and limited maintenance. TeSys® Model U, paired with Altistart 01 provides control functions and communication for a motor startup drive.
Adjustable starting current and voltage ramp 1-10s. Boost function. Mounting on DIN rail. Start/stop via potential free contact (24 V).

Article number:
3308920
Copy to clipboard
Suppl. article no:
ATS01N206QN
Copy to clipboard
Ean no:
3389110667202
Copy to clipboard
Replaces art.nbr:
3292315
Copy to clipboard
Material class
QO443B
Copy to clipboard

Technical data

Packagin Size: 1 ST/14 ST
Type: ATS01N206QN
Rated operation current Ie at 40 °C Tu: 6 A
Rated operating voltage Ue: 380-415 V
Rated power three-phase motor, inline, at 230 V: 0 kW
Rated power three-phase motor, inline, at 400 V: 1.5 kW
Rated surrounding temperature without derating: 40 °C
Voltage type for actuating: AC/DC
Integrated motor overload protection: No
Internal bypass: Yes
Function: Single direction
Release class: Other
Torque control: No
With display: Yes
Degree of protection (IP): IP20
Width: 45 mm
Deep: 131 mm
Height: 124 mm
REACH Date: 2022-07-20
REACH Information obligation: No
