Thermistorrelä CM-MSS.xxS

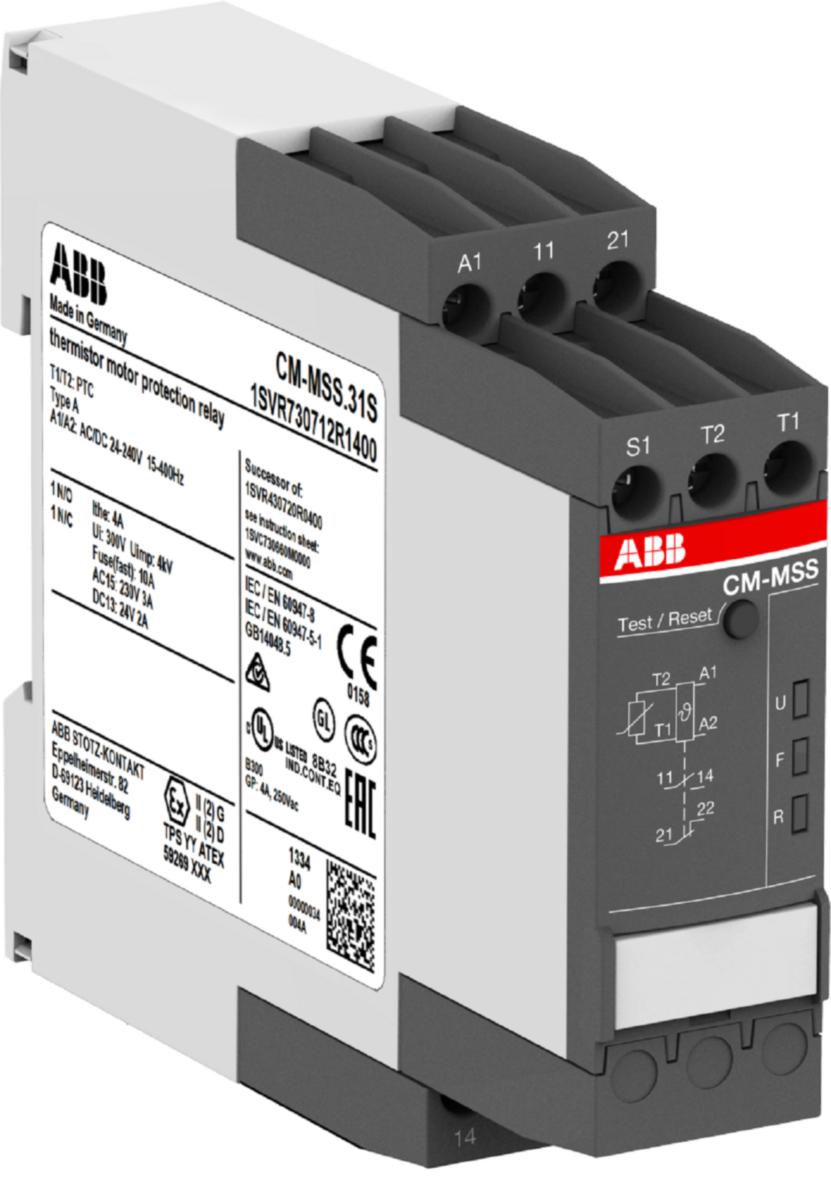

CM-MSS.31S THERMISTOR RELAY CM-MSS.31S
Article number: Suppl. article no:
3860728
1SVR730712R1400
to see price and stock
The thermistor motor protection relays in the CM-MSx series are used to monitor the temperature in motors equipped with PTC temperature sensors. The PTC temperature sensors are integrated in the motor windings to measure the heating of the motor directly. This enables direct control and evaluation of different operating conditions. Depending on the product, the sensors can also be obtained with ATEX approvals for use in hazardous areas.
- Article number: 3860728
- Suppl. article no: 1SVR730712R1400
- Ean no: 4013614496653
- Material class QP020B
Technical data
- With detachable clamps: No
- Voltage type for actuating: AC/DC
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 1
- Number of measuring circuits: 1
- External reset possible: Yes
- Error registration possible: No
- Connection type auxiliary circuit: Screw connection
- Height: 85.6 mm
- Width: 22.5 mm
- Depth: 103.7 mm
- Rated control supply voltage: 24-240 V
- REACH Date: 2022-01-18
- REACH Information obligation: No
