AhlsellProductsElectricAutomation 29-4532 Contactors, starter devicesStartup combinations
Schneider Electric

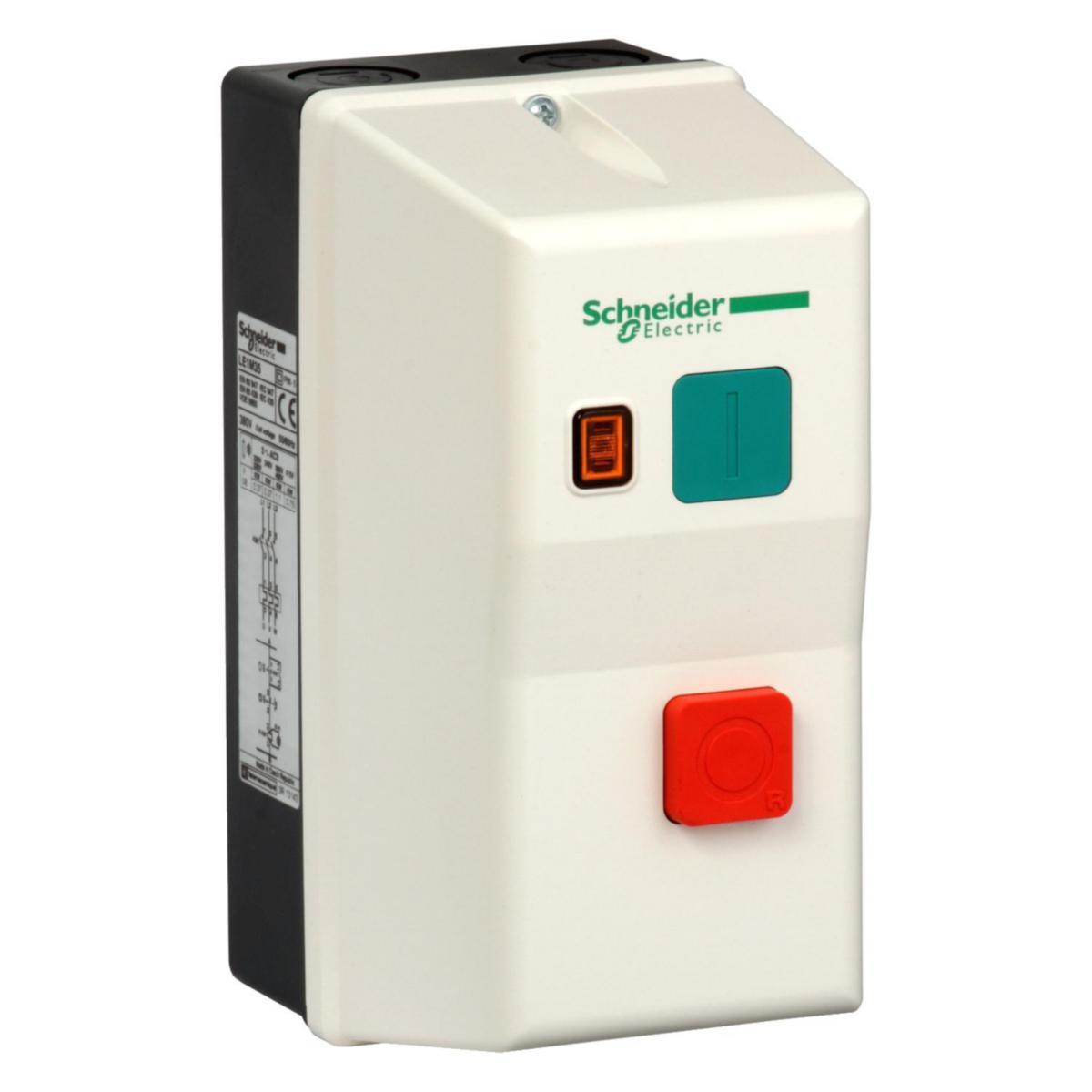

Starting device encased LE1M

STARTER LE1M35Q710
Article number:
3234910
Suppl. article no:
LE1M35Q710
‌
‌
‌
‌
‌
 to see price and stock
TeSys LE sealed start device. With buttons and over-current relay.
  • Article number:
    3234910
  • Suppl. article no:
    LE1M35Q710
  • Ean no:
    3389110765762
  • Material class
    QO360B
Technical data
  • Type: LE1M35Q710
  • Type of motor starter: Direct online starter (DOL)
  • Rated operation power at AC-3, 400 V: 1.5 kW
  • With short-circuit release: No
  • Rated control supply voltage AC 50 Hz: 380 V
  • Overload release current setting: 2.6-3.7 A
  • Rated operation current Ie: 3.7 A
  • Number of indicator lights: 0
  • Number of command positions: 1
  • Number of auxiliary contacts as normally open contact: 0
  • Number of auxiliary contacts as normally closed contact: 0
  • Width: 78 mm
  • Depth: 108 mm
  • External reset possible: No
  • Type of electrical connection of main circuit: Screw connection
  • Height: 160 mm
  • Degree of protection (IP): IP65
  • Suitable for emergency stop: No
  • With fuse: No
  • With transformer: No
  • Rated operation power at AC-3, 230 V, 3-phase: 0.55 kW
  • Rated operation current at AC-3, 400 V: 3.7 A
  • Rated power, 460 V, 60 Hz, 3-phase: 1.1 kW
  • Rated power, 575 V, 60 Hz, 3-phase: 1.5 kW
  • Rated control supply voltage AC 60 Hz: 380 V
  • Ambient temperature, upper operating limit: 40 °C
  • Suitable for rail mounting: No
  • Voltage type for actuating: AC
  • Supporting protocol for AS-Interface Safety at Work: No
  • Supporting protocol for ASI: No
  • Supporting protocol for CAN: No
  • Supporting protocol for Data-Highway: No
  • Supporting protocol for DeviceNet: No
  • Supporting protocol for DeviceNet Safety: No
  • Supporting protocol for EtherNet/IP: No
  • Supporting protocol for Foundation Fieldbus: No
  • Supporting protocol for INTERBUS: No
  • Supporting protocol for INTERBUS-Safety: No
  • Supporting protocol for LON: No
  • Supporting protocol for Modbus: No
  • Supporting protocol for PROFIBUS: No
  • Supporting protocol for PROFINET CBA: No
  • Supporting protocol for PROFINET IO: No
  • Supporting protocol for PROFIsafe: No
  • Supporting protocol for SERCOS: No
  • Supporting protocol for SUCONET: No
  • Supporting protocol for SafetyBUS p: No
  • Supporting protocol for TCP/IP: No
  • Supporting protocol for other bus systems: No
  • Type of electrical connection for auxiliary- and control current circuit: Screw connection
  • Release class: CLASS 10 A
  • Temperature compensated overload protection: Yes
  • REACH Date: 2022-07-20
  • REACH Information obligation: No
