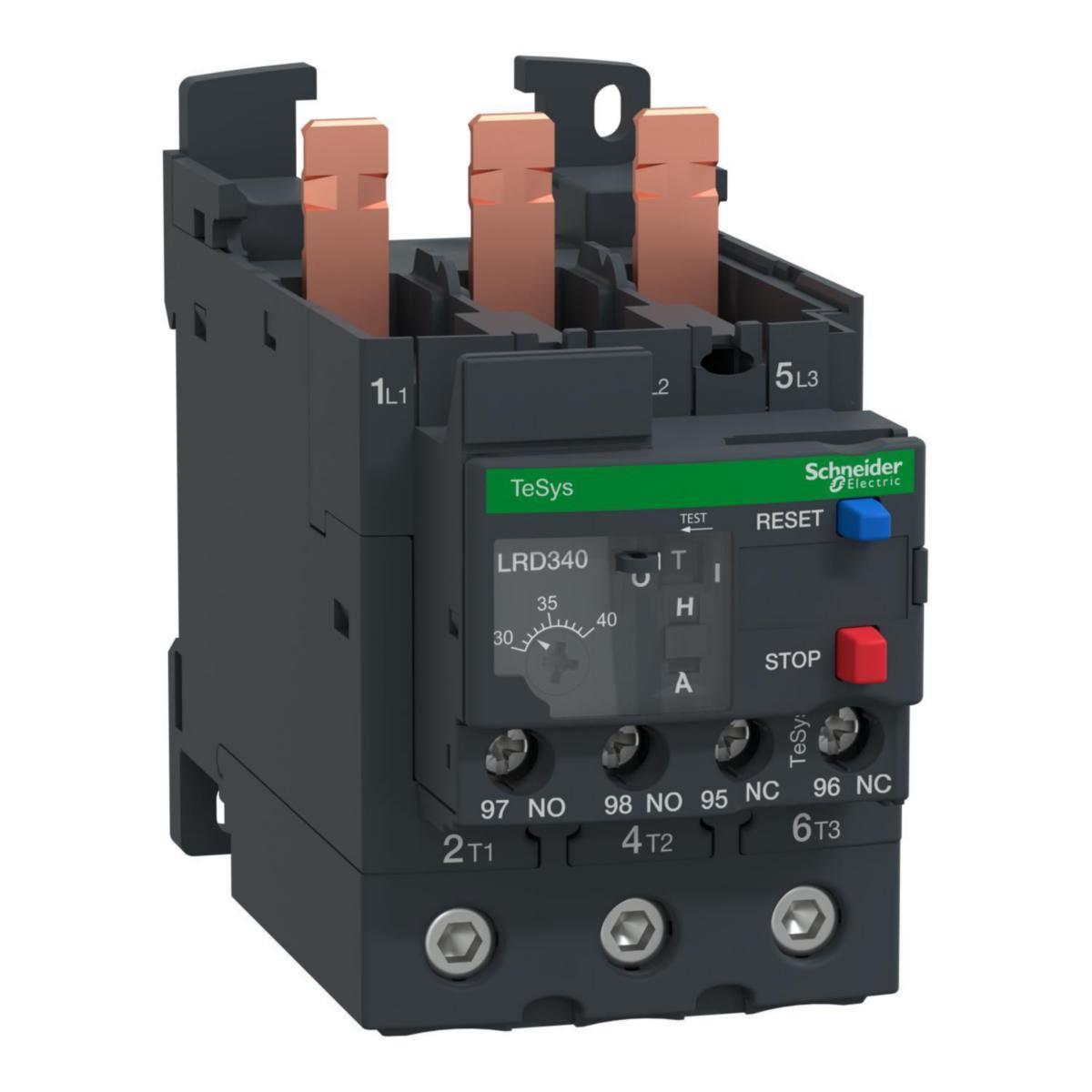

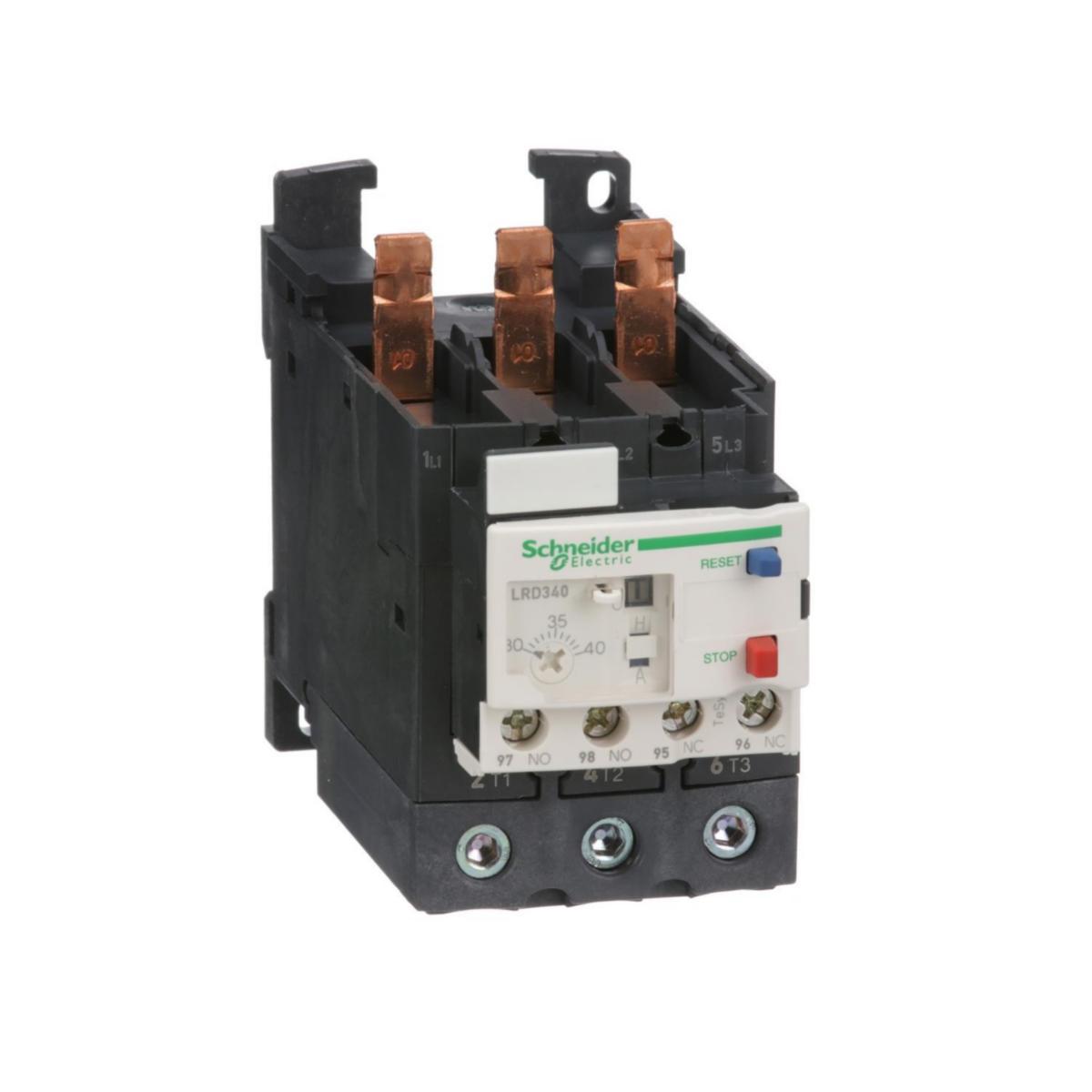

Overvoltage relay LRD with EverLink
30-40A CLASS 10A THER MAL OVERLOAD RELAY
Article number: Suppl. article no:
3234388
LRD340
to see price and stock
Overcurrent relays TeSys model D with EverLink terminal that reduces the need for retightening.
Thermal relays with phase failure protection
With relay trip indication
The standard IEC 947-4-1 specifies the tripping time at 7.2 times the set current Ir.
Tripping classes:
Class 10 Normal start of motors. Trips from 2-10 seconds
Class 20 Heavy start of motors. Trips from 6 to 20 seconds.
Thermal relays with phase failure protection
With relay trip indication
The standard IEC 947-4-1 specifies the tripping time at 7.2 times the set current Ir.
Tripping classes:
Class 10 Normal start of motors. Trips from 2-10 seconds
Class 20 Heavy start of motors. Trips from 6 to 20 seconds.
- Article number: 3234388
- Suppl. article no: LRD340
- Ean no: 3389119215497
- Material class QO360B
- This is an alternative to item 3234364
Technical data
- Packagin Size: 1 ST/13 ST/208 ST
- Type: LRD340
- Design: For D40A-D65A
- Adjustable current range: 30-40 A
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as change-over contact: 0
- Release class: CLASS 10
- Mounting method: Direct attachment/single positioning
- Type of electrical connection of main circuit: Screw connection
- REACH Date: 2022-07-20
- REACH Information obligation: No
