Schneider Electric

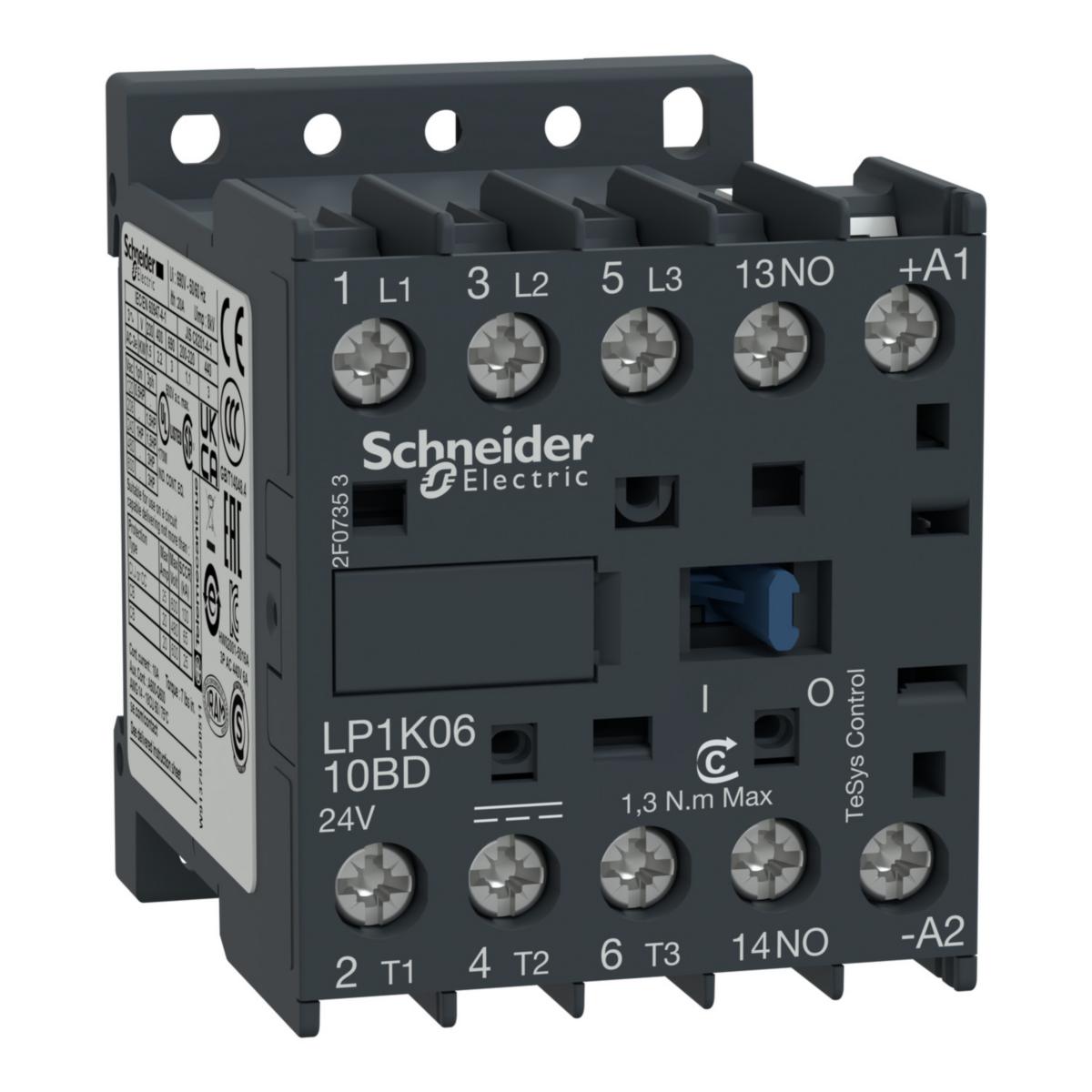

Mini contactor LP1K DC operated
Contactor 3P AC-3<=440V 6A 24V LP1K0610BD
Article number: Suppl. article no:
3230684
LP1K0610BD
to see price and stock
Coil output 3W
- Article number: 3230684
- Suppl. article no: LP1K0610BD
- Ean no: 3389110363227
- Material class QO360B
Technical data
- Packagin Size: 1 ST/10 ST/40 ST
- Type: LP1K0610BD
- Design: Coil output 3 W
- Rated operation power at AC-3, 400 V: 2.2 kW
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 6 A
- Rated control supply voltage DC: 24 V
- Number of normally open contacts as main contact: 3
- Number of normally closed contacts as main contact: 0
- Voltage type for actuating: DC
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 0
- Type of electrical connection of main circuit: Screw connection
- Suitable for distribution board: No
- Rated operation current Ie at AC-4, 400 V: 4 A
- Rated operation power at AC-4, 400 V: 1.5 kW
- REACH Date: 2022-07-20
- REACH Information obligation: No
